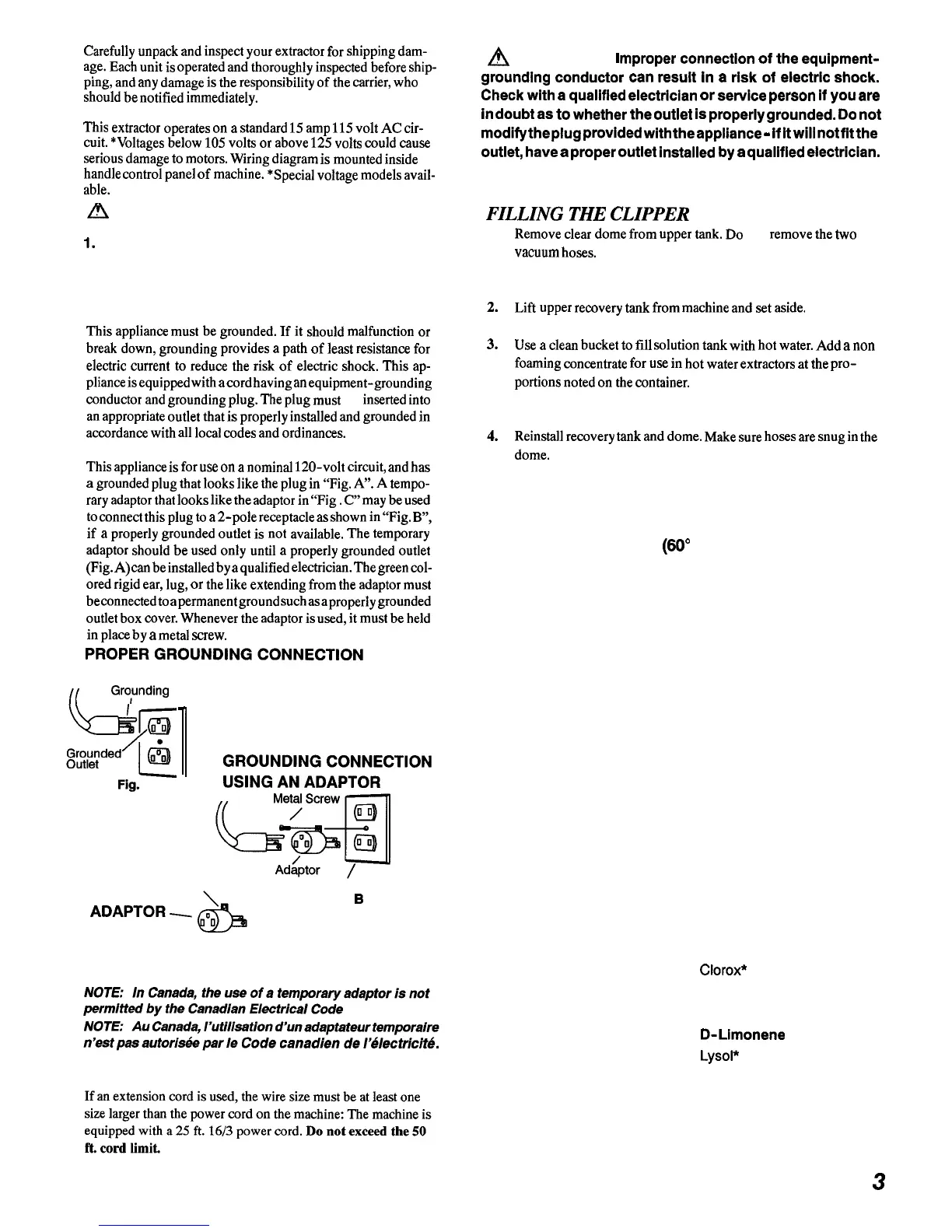

INSPECTION
Carefully
unpack
and
inspect
your
extractor
for
shipping
dam-
age.
Each
unit
is
operated
and
thoroughly
inspected
before
ship-
ping,
and
any
damage
is
the
responsibility
of
the
carrier,
who
should
be
notified
immediately.
ELECTRICAL
This
extractor
operates
on
a
standard
15
amp
115
volt
AC
cir-
cuit.
*Voltages
below
105
volts
or
above
125
volts
could
cause
serious
damage
to
motors.
Wiring
diagram
is
mounted
inside
handle
control
panel
of
machine.
*Special
voltage
models
avail-
able.
WARNING: To avoid electric shock:
1.
Use indoors only.
2. To reduce risk of fire, do not use volatile substances.
3.
Use only cleaners intended for carpet application.
GROUNDING INSTRUCTIONS:
This
appliance
must
be
grounded.
If
it
should
malfunction
or
break
down,
grounding
provides
a
path
of
least
resistance
for
electric
current
to
reduce
the
risk
of
electric
shock.
This
ap-
pliance
is
equipped
with a
cord
having
an
equipment-grounding
conductor
and
grounding
plug.
The
plug
must
be
inserted
into
an
appropriate
outlet
that
is
properly
installed
and
grounded
in
accordance
with
all
local
codes
and
ordinances.
This
appliance
is
for
use
on
a
nominal
120-volt
circuit,
and
has
a
grounded
plug
that
looks
like
the
plug
in
“Fig.
A”.
A
tempo-
rary
adaptor
that
looks
like
the
adaptor
in
“Fig.
C”
may
be
used
to
connect
this
plug
to a
2-pole
receptacle
as shown in
“Fig.
B”,
if
a
properly
grounded
outlet
is
not
available.
The
temporary
adaptor
should
be
used
only
until
a
properly
grounded
outlet
(Fig.
A)
can be
installed
by
a
qualified
electrician.
The green
col-
ored
rigid
ear,
lug,
or
the
like
extending
from
the
adaptor
must
be connected to
a
permanent
ground
such as a
properly
grounded
outlet
box
cover.
Whenever
the
adaptor
is
used,
it
must
be
held
in
place
by
a
metal
screw.
Gro,unding
Pin
Fig.
A
n
Tab For Grounding
Screw
Grounded Outlet Box
Fig.
B
Fig. C
EXTENSION CORDS
90032 7/1/97
A
WARNING:
I
mproper
connection
of
the
equipment-
grounding
conductor
can
result
in
a
risk
of
electric
shock.
Check
with
a
qualified
electrician
or
service
person
if
you
are
in
doubt as
to
whether
the outlet
is
properly grounded.
Do
not
modify the plug provided with the appliance
-
if
it
will not
fit
outlet,
have
a
proper
outlet
installed
by
a
qualified
electrician.
FILLING
THE
CLIPPER
1.
Remove
clear
dome
from
upper
tank.
Do
not
remove
the
two
vacuum
hoses.
NOTE: Dome can be set securely between
handle uprights when the handle is in operating position.
2.
Lift
upper
recovery
tank
from
machine
and
set
aside.
3. Use
a
clean
bucket
to
fill
solution
tank
with
hot
water.
Add
a
non
foaming
concentrate
for
use
in
hot
water
extractors
at
the
pro-
portions
noted
on
the
container.
NOTE: If powdered soap
is
used,
premix
with hot water before
filling solution tank.
4.
Reinstall
recovery
tank
and
dome.
Make
sure
hoses
are
snug
in
the
dome.
CAUTION:
To avoid possible distortion of polyethylene solution/
recovery tanks, DO NOT USE WATER TEMPERATURE
THAT EXCEEDS 140” F (60’ C).
NOTE: Make sure dome is seated correctly to ensure proper vacuum seal.
CHEMICALS
CAUTION:
Use only the suitable chemicals listed below. Using in-
compatible chemicals will damage the machine. Dam-
ages of this type are not covered under warranty.
Carefully read ingredients on manufacturer’s label be-
fore using any product in this machine.
SUITABLE
CHEMICALS
Alkalis
Clorox II Bleach*
Defoaming Agents
Detergents
Hydroxides
Oxygen Bleaches
Soaps
Sta- Puf Fabric Softener*
Vinegar
White Monday Bleach*
