CONTROLS
CMD20 86038150 04/02/07
7

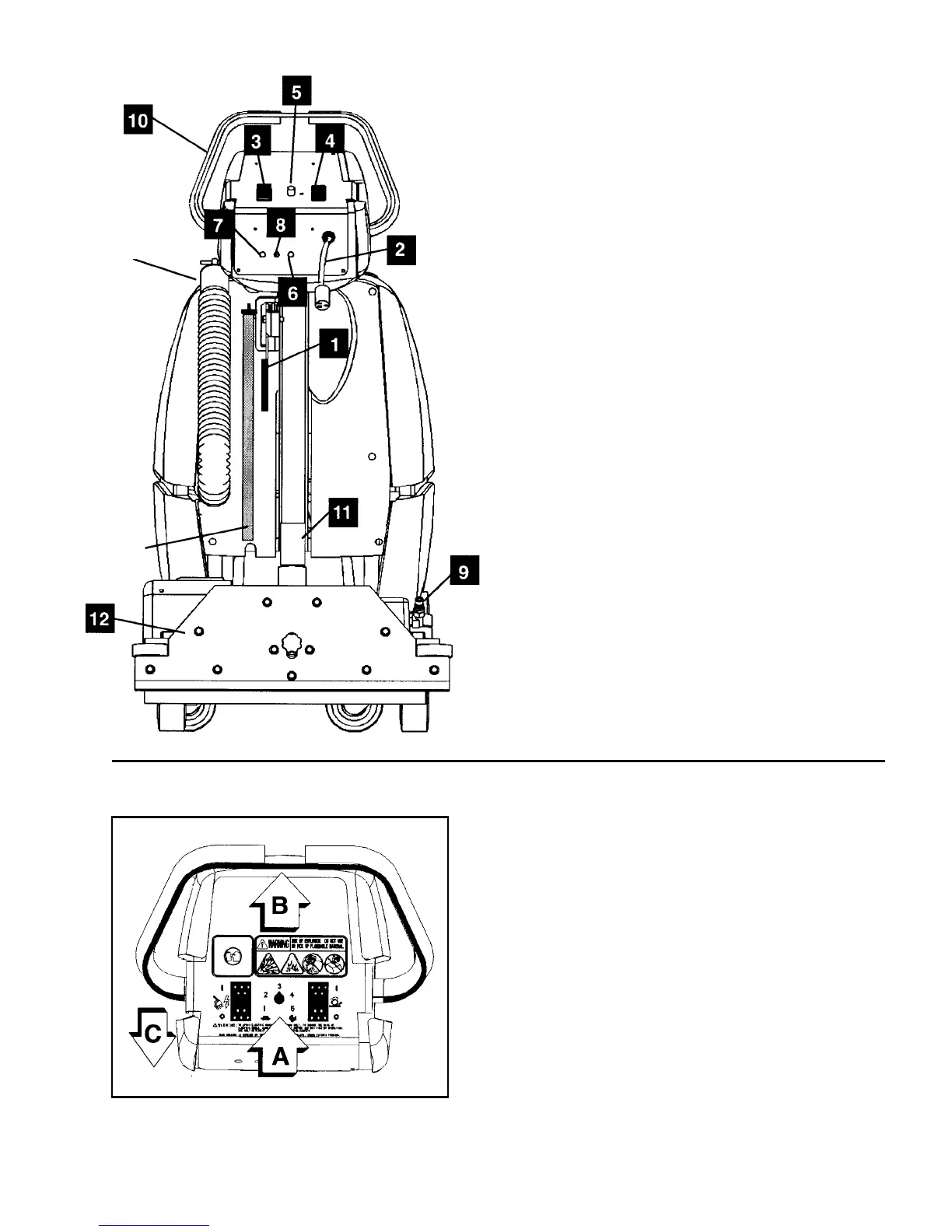

1. Brush/Vac Shoe Lift Lever - Raises and lowers both
brush and vac shoe.
2. Electrical Cord
3. Main Power Switch – Turns On and Off the vac
motor/pump and machine.
4. Brush/Solenoid Knob – Enables the brush motor
and solution spray (only when propelling).
5. Speed Control Knob – Adjusts the forward drive
speed of the machine. (See Below)
6. Drive Motor Circuit Breaker – 6 amp, protects the
drive motor mechanism.
7. Vac Motor Circuit Breaker – 15 amp, protect vacuum
motor.
8. Brush Motor Circuit Breaker – 8 amp, protect brush
motor.
9. Solution Accessory Tool Hook-Up – Used for
various auxiliary cleaning tools.
10. Main Handle
11. Vacuum Accessory Tool Hook-Up – To use
accessory tool, remove hose from vac shoe and
attach to accessory tool adaptor. 86089080 (PRV
NO.78211)
DRIVE CONTROLS
A. The speed the machine will travel is regulated by the
knob located on the center of control panel. Turn the
knob to the right to increase the speed of the machine
and to the left to decrease the speed of the machine.
B. Squeezing the control lever will propel the machine
forward at the selected speed. Machine will also
engage the brush and spray if #4 is activated.
C. To move the machine backwards release the control
lever and then pull back on main handle
(NOTE: The machine drive assembly is disengaged).
Do not pull back on the control lever.
SEE BELOW
RECOVERY
DRAIN HOSE
SOLUTION
HOSE
To Next Page
