Windsor EXPERT User Manual

CONTROLS
EXP 98363 08/25/04
3-2
NOTE: Attach strain relief/cord
retainer to the power cord.
1.
Make a loop in power cord approximately
12” from strain relief on machine.
2.
Slide cord loop through slot
in retainer arm. Pull slack
cord back through slot to
secure. Attach retainer to
handle.
1 Brush Switch On/Off.
Turns brush motor on and off.
2 Solution Switch On/Off.
Turns solution pump on and off.
3 Vac Switch On/Off
. Turns vacuum motor on and off.
4Main Handle.
5 Solution Lever.
Controls the amount of
flow of solution to the floor.
6 Brush Motor Circuit Breaker.
Protects brush motor from overheating.
7 Vac Motor Circuit Breaker.
Protects the
vac motor from overheating.
8 Handle Adjustment Lever.
Adjusts the main handles angle.
9. Solution Tank Drain Hose.
10. Accessory Tool Connection.
Solution connection for
accessory tools.
11. Accessory Hose Connection.
Hose
connection for accessory tool.
12. Cord Hook.

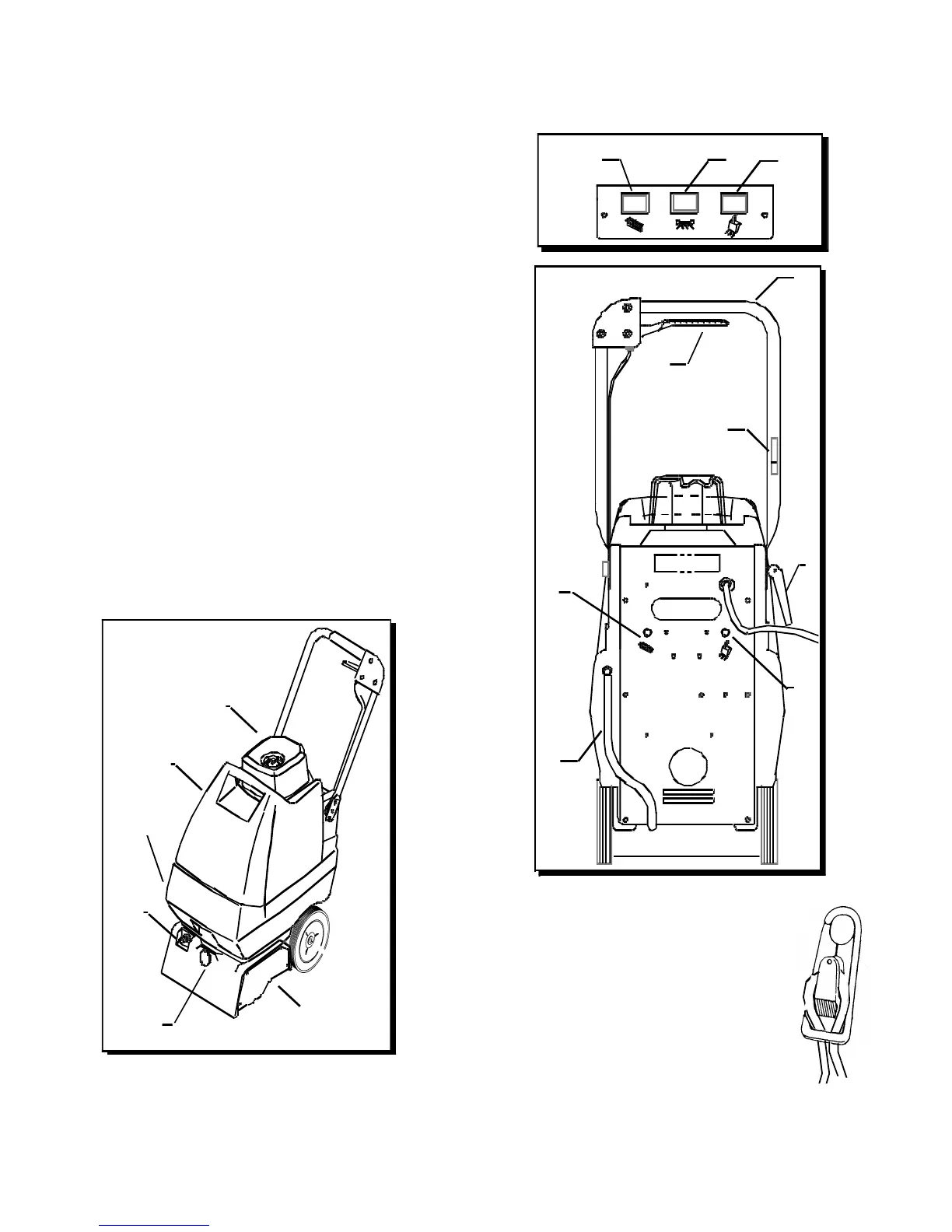

VIEW: TOP of CONTROL
1
23
7
5
4
6
12
9
VIEW: REAR of MACHINE
8
VIEW: FRONT of MACHINE
11
Recovery
Tank
Vacuum
Shoe / Brush
Housing
Dome
10
Solution
Tank
A
TTACH STRAIN RELIEF/CORD RETAINER TO
THE POWER CORD.
