MAINTENANCE-From Serial Number **
86221970 17” SCRUBBER 11/25/09
4-3
ON-BOARD CHARGER BATTERY SELECTION
Disconnect charger from wall outlet before
changing charge profiles. Failing to do so could
result in electrical shock.

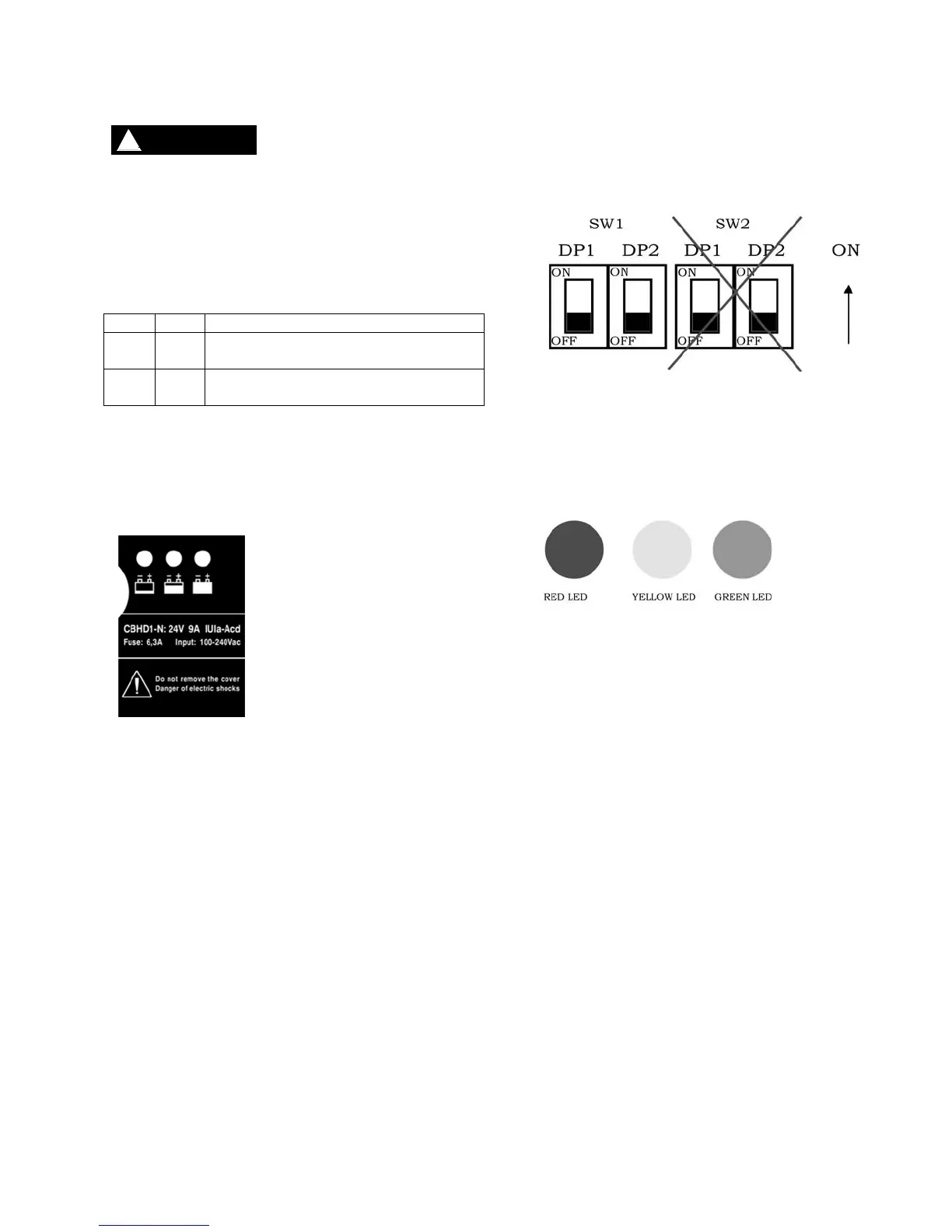

DIPSWITCH: SW1
Charging Curve Table
DP1 DP2 CHARGING CURVE
ON OFF IUIa-ACD-for Wet batteries (default
setting)
ON ON IUIa-O AGM-for AGM or Gel batteries
(maintenance free)
Dipswitches are located behind the label on the front
of the charger. Peel the top right corner back to
reveal two sets of dipswitches.
**CALL MANUFACTURER FOR SERIAL NUMBER
Only dipswitch SW1 effects the charging curve.
Select the appropriate dip switch setting from the
Charging Curve Table. Do not change settings of
SW2. Changing settings of SW2 dipswitch could
result in charger failure.
Once the appropriate charger setting has been
selected, replace label. To verify charger settings,
observe charger immediately after startup. When
configured for lead-acid batteries, the red LED will
flash twice. If configured for gel/AGM batteries the
green LED will flash twice.
