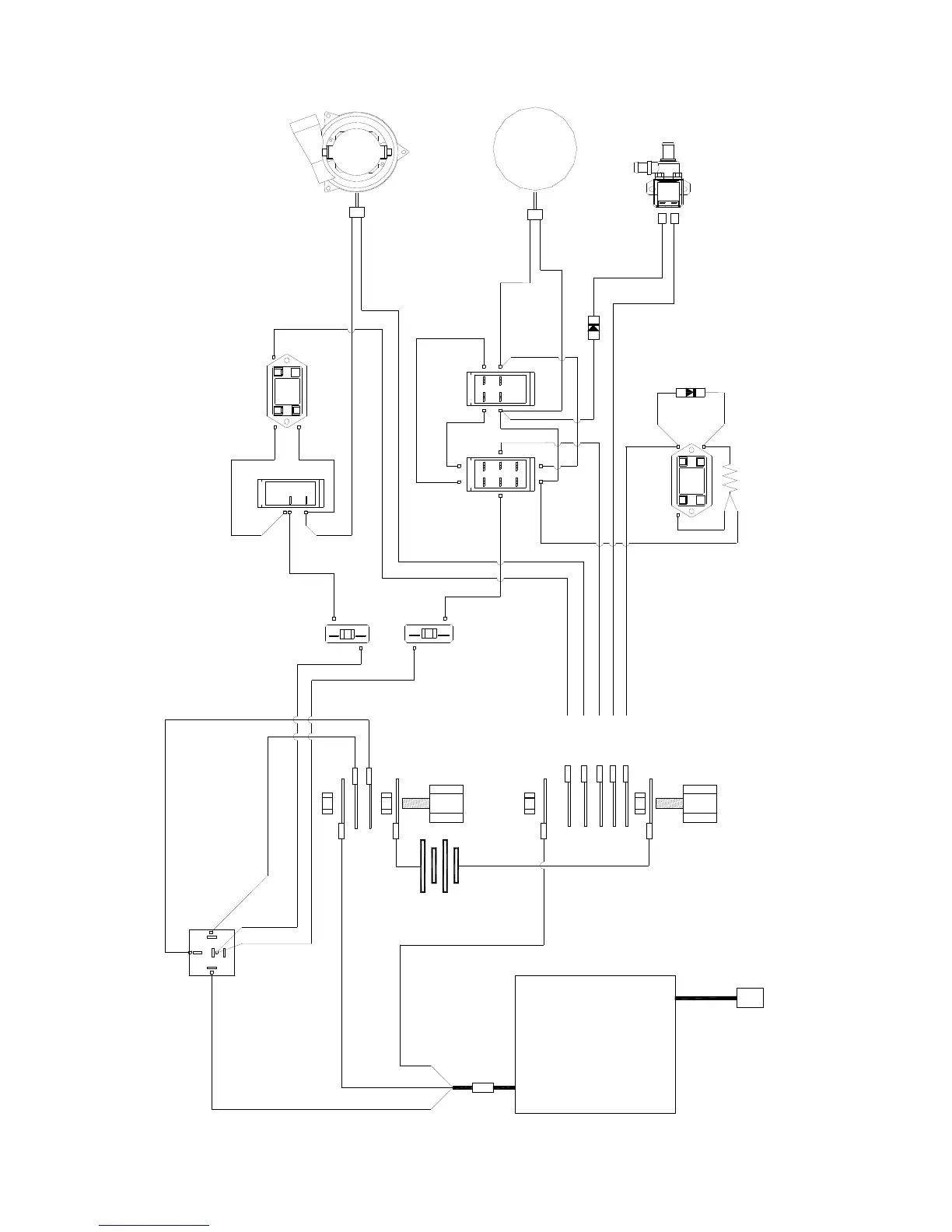

WIRING-SCHEMATIC- ALL EXCEPT QSC172, & SCHC172
86221970 17” SCRUBBER 10/12/09
5-39
RELAY
AC INPUT
BLACK FROM CHARGER
BLACK FROM CHARGER
RED FROM CHARGER
86226210 - PRV NO. 880457
86266190 - PRV NO. 880450
86268030 - PRV NO. 880456
BATTERY
CHARGER
30
85
86
87A
HOUR
VALVE
SOLENOID
NEGATIVE
TERMINAL
WIRE 20 WIRE 21
WIRE 21
WIRE 6
WIRE 5
25A
VACUUM
MOTOR
BRUSH
1
2
4
BATTERY
BRUSH
BRUSH
REVERSE
86267420 - PRV NO. 880283
86267420 - PRV NO. 880283
25A
TERMINAL
POSITIVE
BATTERY
POWER
86268570 - PRV NO. 88401
WIRE 3
WIRE 3
WIRE 17
WIRE 4
WIRE 4
WIRE 1 WIRE 2
WIRE 2
WIRE 1
WIRE 4
86267620 - PRV NO. 880306
86267620 - PRV NO. 880306
WIRE 10
WIRE 10
86260470 - PRV NO. 880268
MOTOR
VAC
WIRE 11
WIRE 5
1
2
3
3
86226170 - PRV NO. 880447
METER
METER
86267420
PRV NO. 880283
86268570
PRV NO. 88401
86261230
PRV NO. 29242
86261240
PRV NO. 29243
86267410
PRV NO. 880282
86267410
PRV NO. 880282
86267410
PRV NO. 880282
86267410
PRV NO. 880282
86268380
PRV NO. 88286
86267620
PRV NO. 880306
86267420
PRV NO. 880283
86261340
PRV NO. 67457
86267420 - PRV NO. 880283
