12
2. Remove the Door from the Appliance
- Follow steps 1 and 2 (only) in the section above Reversing the Door
Swing, save all the components.
- Pull off the rubber door seal to expose the screw holes.
3. Installing a Custom Handle
- If you are using your own custom handle, not supplied, then you should
attach the handle to the custom panel using countersunk screws.
- If you are using the handle provided proceed to the next step.
4. Clamp the Custom Panel to the Door Frame
- Be sure to align the panel with the top of the door frame.
- Center the panel along the width (side to side).
5. Attaching the Panel and Handle
- It is best to drill ½” pilot holes before attaching the door, this will help to
prevent the wood from splitting.
NOTE: BE CAFEFUL NOT TO DRILL THROUGH THE FRONT OF THE
WOOD PANEL

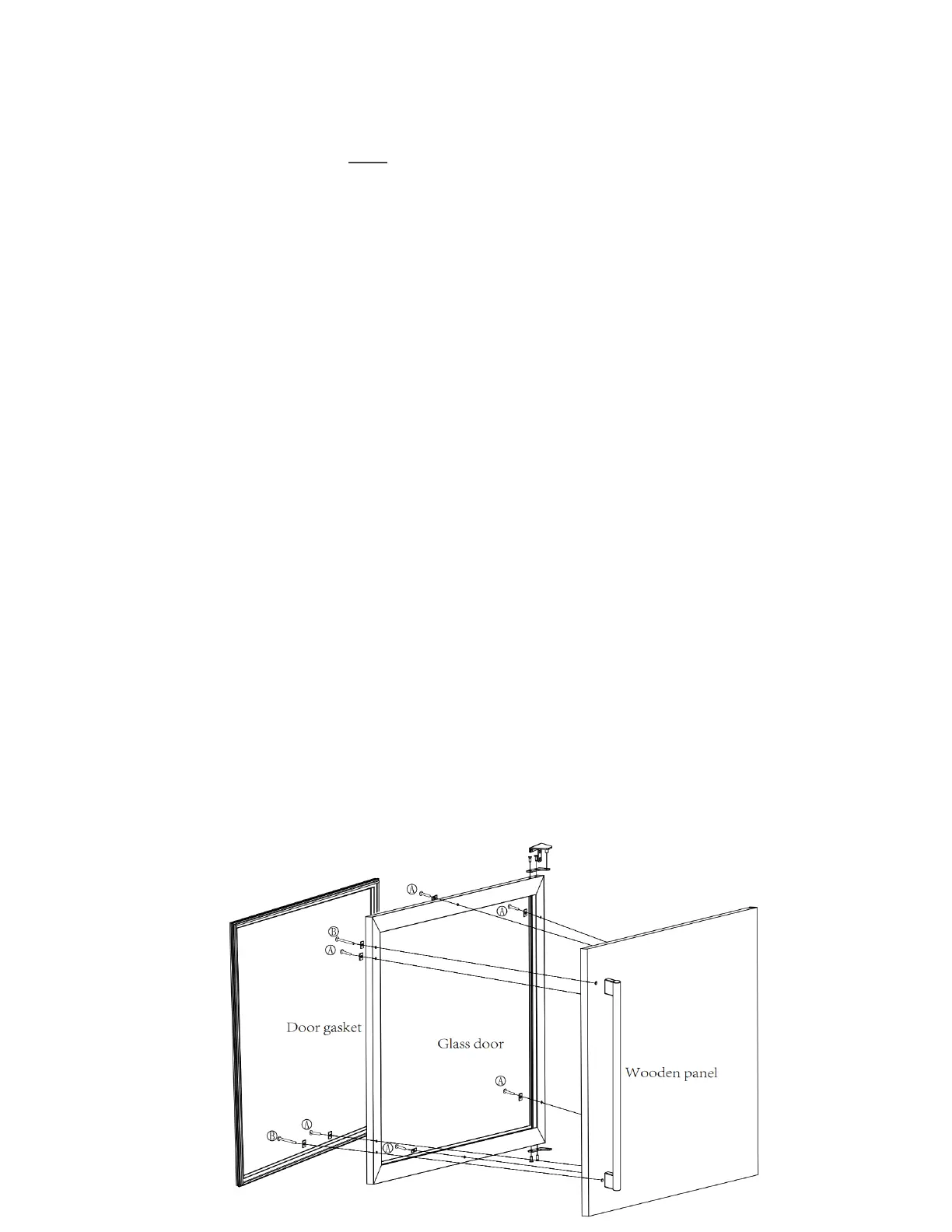

- Fasten the wood panel (A) using the 6 washers and screws, screwing
through the holes from the inside of the door through the gasket channel.
- NOTE: BEFORE YOU DRILL THE HOLES FOR THE HANDLE RE-CHECK
THEIR LOCATION, REFER TO THE DIAGRAM BELOW.
- Drill the handle holes (ONLY) through the wood.
- Attach the handle (B) using the long screws and washers provided.
