Winegard RM-DM46 Owner's Manual & Installation Instructions

6

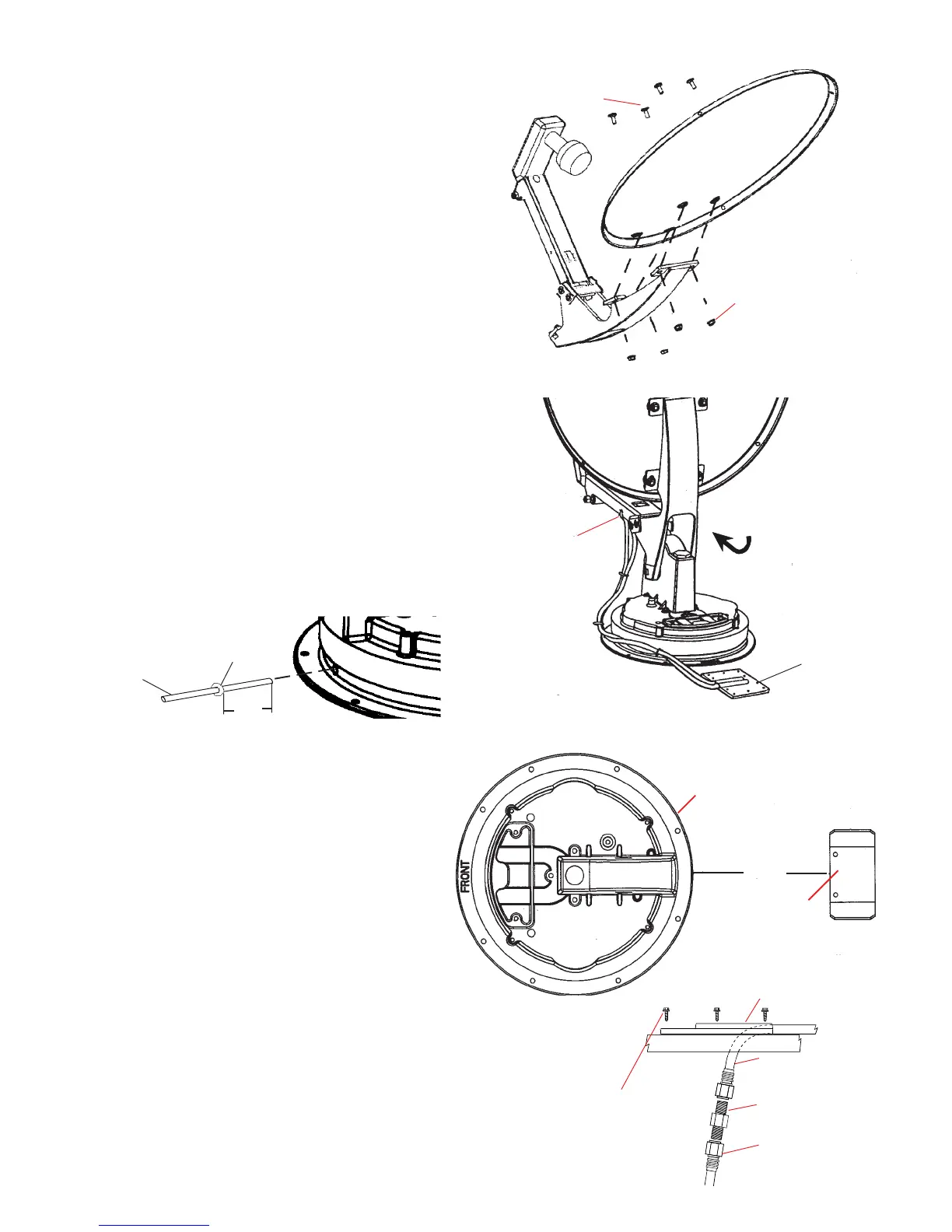

FIGURE 6
6-1/8"
Travel bracket
Base plate
#10 x 1" Screws
CE-2000
FIGURE 4
STEP 3. Assemble dish to backup using
bolts and nuts provided, Figure 4.
STEP 4. Mount dish on roof in upright
position. Rotate clockwise to stop, Figure 5.
Dish will be toward back of vehicle when in
stowed or travel position. The word FRONT
is embossed on the base. This should face
front of vehicle. Secure to roof using screws
(provided). The travel bracket should be
mounted to roof 6-1/8" from base of dish,
toward back of vehicle. See Figure 6.
STEP 7. Feed coax through the roof using cover plate
(included with hardware), Figure 7. Weatherproof cable
entry by applying sealant under lip of roof-thru plate and
where cable enters roof. Attach plate to roof with screws
provided. Apply sealant over screws and around edge of
roof-thru plate, making sure cable entry is sealed. Secure
cables as necessary to prevent whipping. If downlead
connection must be made on top of roof, make sure to
weatherproof connection!
Rev. 2/08/01
CAUTION: DO NOT GET sealing compound
between Base Plate and Rotating Gear Housing.
DO NOT PAINT top of Base Plate or around
Rotating Gear Housing.
FIGURE 5
NOTE: Apply non-hardening sealing compound
to screw heads, coax access hole and edge of
gasket under mount base.
Cable entry plate
placement is 3"
minimum from
mount base.
STEP 5. Facing the front of the dish, note the coax
attached to side of the feed arm. Measure 24" of
coax from this point. Do not cut. Put coax around
mount base, Figure 5. Fasten cable clamp in hole
in mount base (check roof template in this manual
for correct location) at the end of the coax cable
measure, Figure 5.
STEP 6. Apply approved sealing compound over
mounting screw heads.
Measure coax 24" at
plastic fastener on
left side of feed arm.
(See Step 5.)
Downlead
Downlead
connects to
satellite rcvr.
FS-8100
male-to-male
F-connector
(4) Antenna
Mounting Bolts
(4) 1/4 - 20
Hex Nut
FIGURE 7
Rotate
clockwise
to stop
1/2"
Install the vent tube on the back of the mount
base (This is the side opposite the word
FRONT). The hole for the vent tube is shown
in Figure 6A. CAUTION: DO NOT seal hole
in vent tube. Put sealant around the outside
of the vent tube, approximately 1/2" from end.
Push the vent tube into the hole. The sealant
will seal the hole as you push in. Leave
approximately 2 to 2-1/2" of the vent tube
extending from the hole. Put a small amount
of sealant on the roof under the vent tube end
to hold in place.
Vent tube
Sealant
FIGURE 6A

Winegard RM-DM46 Specifications

Antenna Specifications

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi
aperture efficiency	73%
cross polarization on axis	-21 dB
beamwidth at -3 dB	3.5[o]
beamwidth at -10 dB	7.0[o]

Weight and Dimensions

height when raised	30"
height in the travel position	8"
operating radius	17"
roof space required	26"
weight	12 lbs
antenna height	20.9"
antenna width	19.2"
ship weight	20.6 lbs
