(2) 1/4-20

Hex Nut

P.N. 2160228

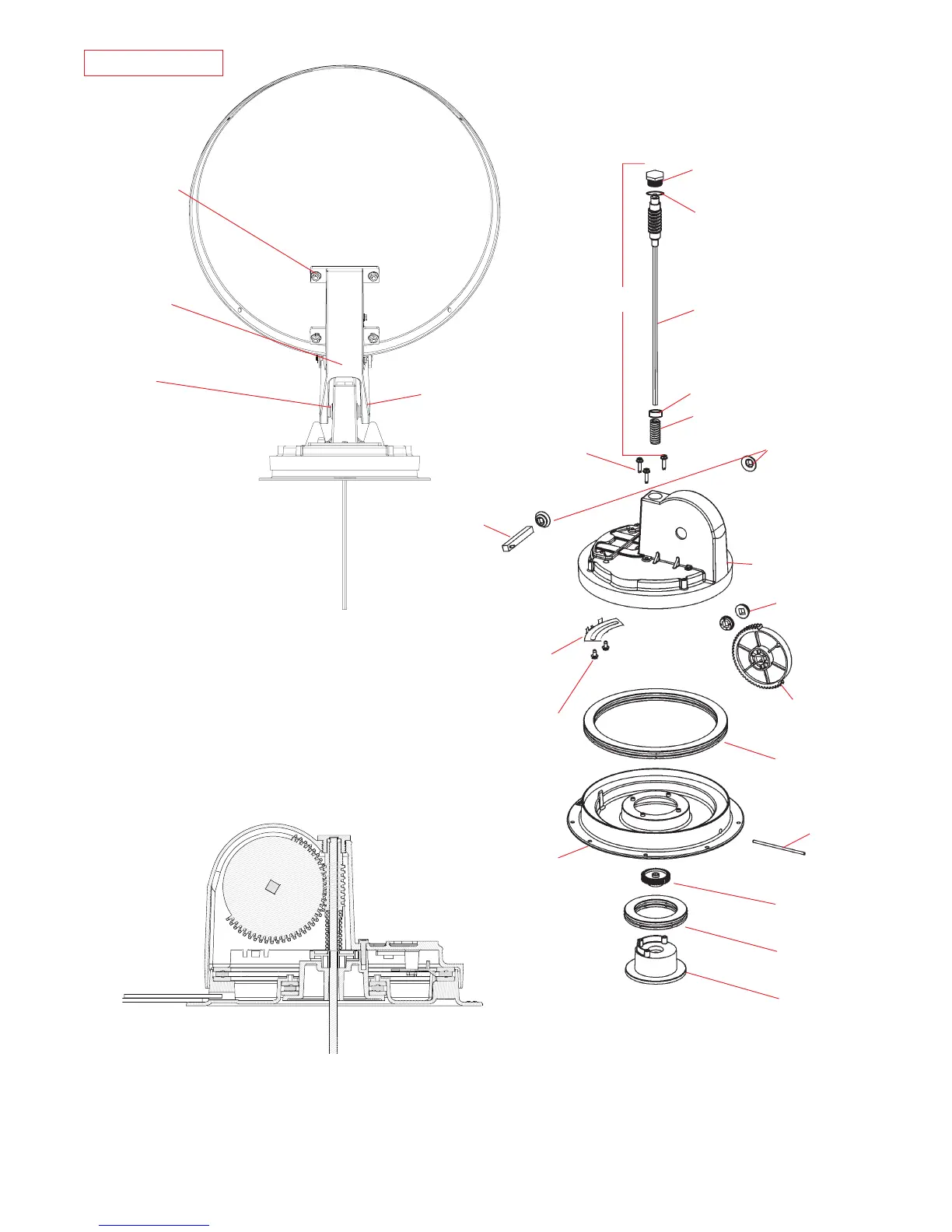

PARTS LIST

Backup Frame

P.N. 2744939

BACK VIEW

(2) E-Clip for 1/4" Pin

P.N. 5160818

(2) 1/4 x 3.25" Pin

P.N. 2160813

Cutaway view of mount/gear housing

Cast Aluminum

Gear Housing

Plastic Plug

Worm Gear

Elevating Gear

Part of

RP-30RM kit

Vent Tube

P.N. 2200122

Outer Bearing

P.N. 2590347

Seal

Part of

RP-30RM kit

Spring

Turret

P.N. 3100728

Pivot Shaft

Part of

RP-30RM kit

Pivot Bearing

Part of

RP-30RM kit

Rotate Limit

Plate

P.N. 3720052

Screw

P.N. 2160197

Inner Bearing

P.N. 2590348

Elevate Shaft

Gear

P.N. 2200465

Hub

P.N. 3100736

Turret Base

P.N. 3100730

Screw

P.N. 2160196

O-Ring

RP-4400

Spacer

Other manuals for Winegard RM-DM46

User Manual19 pages

Questions and Answers:

Need help?

Do you have a question about the Winegard RM-DM46 and is the answer not in the manual?

Winegard RM-DM46 Specifications

Antenna Specifications

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi
aperture efficiency	73%
cross polarization on axis	-21 dB
beamwidth at -3 dB	3.5[o]
beamwidth at -10 dB	7.0[o]

Weight and Dimensions

height when raised	30"
height in the travel position	8"
operating radius	17"
roof space required	26"
weight	12 lbs
antenna height	20.9"
antenna width	19.2"
ship weight	20.6 lbs
