Winegard RM-DM46 Owner's Manual & Installation Instructions

12
SM-1000
Surface
Mount Box
(2) 2160138
#6 x 1/2" Hex Head
Slotted Screw
RM-46DE,
RM-FL4D,
EM-00DE
DR-4500
Wallplate
Display Unit
Includes (2)
2160533 #6 x
5/8" white
Phillips screws
Interior wallplate
display and parts
Backup
Frame
Pins and
E-clips
Mounting
Screws
& Nuts
Sensor
Case
Sensor
Cable

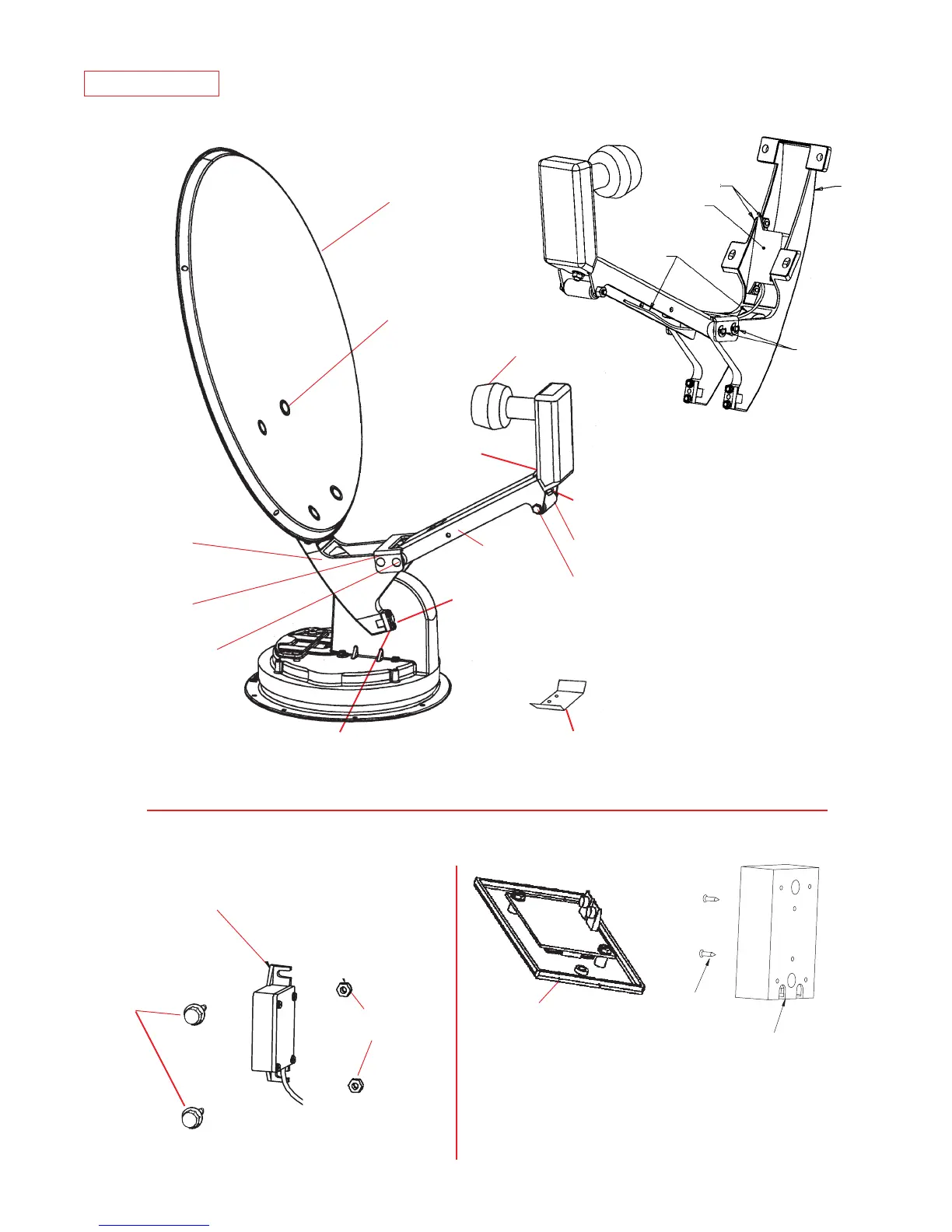

PARTS LIST
(2) 2160183
#10-32 x 1/2"
Screw
Location of elevation sensor on backup,
installed and calibrated at the factory
46 cm Reflector, White
(4) Flat Head Bolts
(White) P.N. 2160362
LNBF
LB-1000
Roller
P.N. 2200460
Hex Head Bolt
1/4-20 x 2.5"
P.N. 2160237
Nylock Nut
1/4-20
P.N. 2160220
(not shown)
Feed Arm
P.N. 2744946
Backup Frame
P.N. 2744939
Pivot Bracket
P.N. 2744945
Pin, 1/4 x 3.25" long
P.N 2160813
(Not shown:
E-clip for 1/4" Pin
P.N. 5160818)
Travel Support
P.N. 2744934
Screw #10-24
x 3/4 (4)
P.N. 2160196
Carriage Bolt
P.N. 2160353
(not shown)
Flange Nut
1/4-20
Clamp (2)
P.N. 2590343
Sensor parts w/cable,
installed at factory
RM-DM46 2780090
(2) 2160216
#10-32 Hex Nut

Winegard RM-DM46 Specifications

Antenna Specifications

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi
aperture efficiency	73%
cross polarization on axis	-21 dB
beamwidth at -3 dB	3.5[o]
beamwidth at -10 dB	7.0[o]

Weight and Dimensions

height when raised	30"
height in the travel position	8"
operating radius	17"
roof space required	26"
weight	12 lbs
antenna height	20.9"
antenna width	19.2"
ship weight	20.6 lbs
