Winegard RM-DM46 Owner's Manual & Installation Instructions

5
Front of the RV
26"
34" DIA.
OPERATING
AREA
NOT TO SCALE
17" RADIUS
It is highly recomended that the antenna be
mounted on roof center line. Do not mount
antenna closer than 10" from edge of roof.
Vehicle Roof
RW-5000
Roof Wedge
w/gasket
Antenna Controls
Screwdrivers (Phillips and slot)
1-3/4" hole saw
7/16" wrench
Interior
Roof Wedge
(optional)
THINGS YOU NEED
ABS glue
Drill w/1/8" bit
Tape measure
Non-hardening sealant
(Check manufacturer’s specifications for
compatibility with your roof material)
Winegard’s Digital Elevation Sensor has been
INSTALLED and CALIBRATED at the factory.

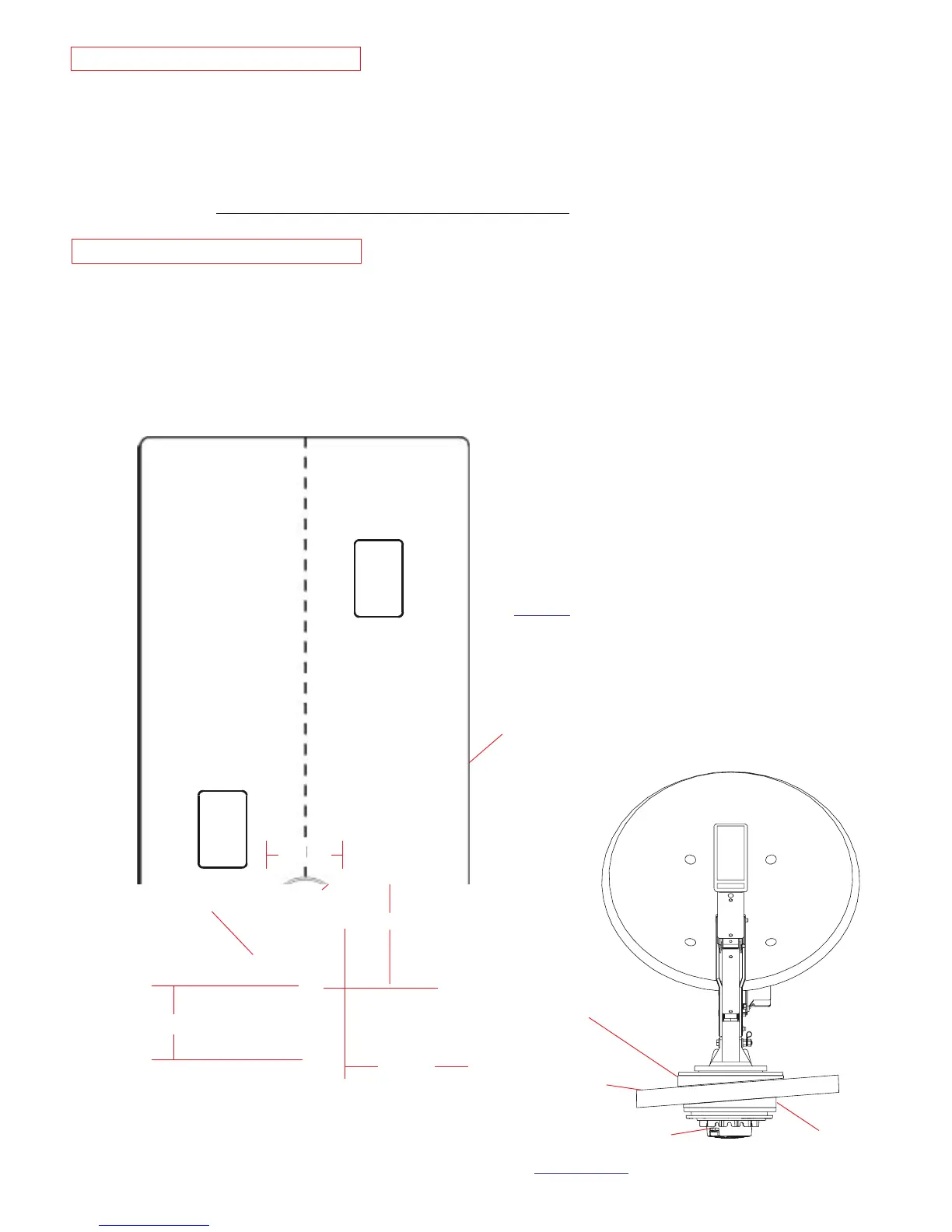

FIGURE 3
INSTALLATION & ASSEMBLY
STEP 1. Choose a location on the roof for dish that will allow dish to raise and rotate without
interfering with other roof-mounted equipment. Make sure inside ceiling plate is easily
accessible, and with no obstructions that would interfere with operation.
Figure 3 shows minimum distance (10") antenna should be located from edge
of vehicle roof. It is recommended that you check with your dealer or manufacturer
for provisions that may have been made in the roof for antenna mounting; a
reinforced roof area, or pre-wire installation
from the factory.
NOTE: The system must be level for
proper operation.
Winegard Model
RW-5000 roof wedge with gasket is available. If
inside roof wedge is needed, Winegard’s
RW-1000 can be trimmed to fit ceiling plate.
STEP 2. Position template on roof (pg. 8 this
manual). CAUTION: DO NOT drill through wiring.
Carefully drill a 1-3/4"hole through roof and ceiling
of vehicle. Inspect hole to make sure wiring is
intact. (Roof template, pgs. 8-9.)
Center Roof Line
19.50"
Minimum
10"

Winegard RM-DM46 Specifications

Antenna Specifications

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi
aperture efficiency	73%
cross polarization on axis	-21 dB
beamwidth at -3 dB	3.5[o]
beamwidth at -10 dB	7.0[o]

Weight and Dimensions

height when raised	30"
height in the travel position	8"
operating radius	17"
roof space required	26"
weight	12 lbs
antenna height	20.9"
antenna width	19.2"
ship weight	20.6 lbs
