Winegard RM-DM46 Owner's Manual & Installation Instructions

13

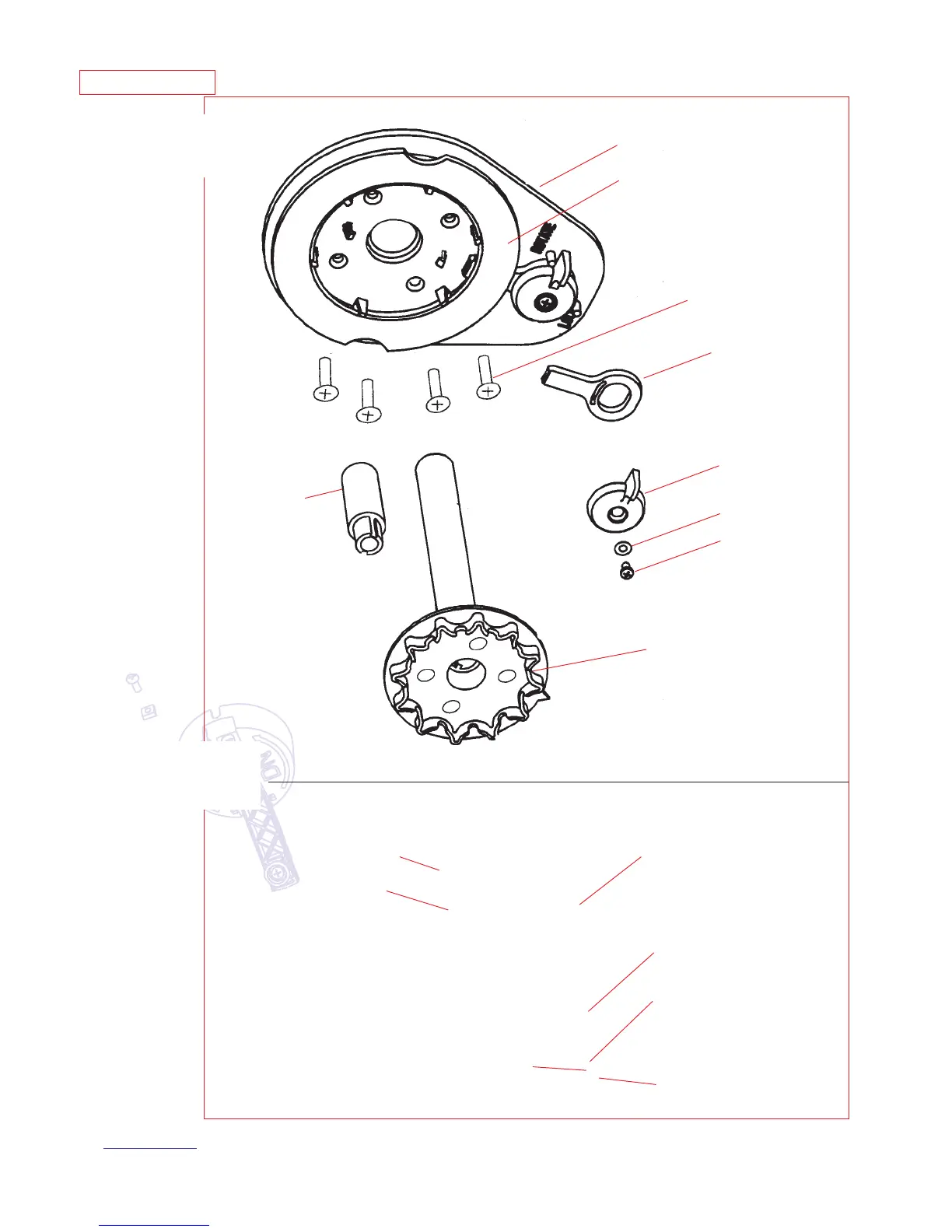

NOT TO SCALE
Ceiling Base
Directional Dial
(4) #10 Phillip Flat
Head Screws
Directional Handle
Azimuth Lock
Azimuth Lock Knob
Washer
#10 x 3/8"
Red Phillips Screw
#8-32 Square Nut
Crank Handle Base
Crank Handle
Knob
Washer
#8-32 x 3/8"
Phillips Screw
#10 x 3/8" Phillips Screw
Directional
Handle
Extension
Rev 6/11/01
PARTS LIST
INTERIOR
HARDWARE KIT
RK-CEIL
CRANK HANDLE KIT
RK-HAND

Winegard RM-DM46 Specifications

Antenna Specifications

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi
aperture efficiency	73%
cross polarization on axis	-21 dB
beamwidth at -3 dB	3.5[o]
beamwidth at -10 dB	7.0[o]

Weight and Dimensions

height when raised	30"
height in the travel position	8"
operating radius	17"
roof space required	26"
weight	12 lbs
antenna height	20.9"
antenna width	19.2"
ship weight	20.6 lbs
