Winegard RM-DM46 Owner's Manual & Installation Instructions

9

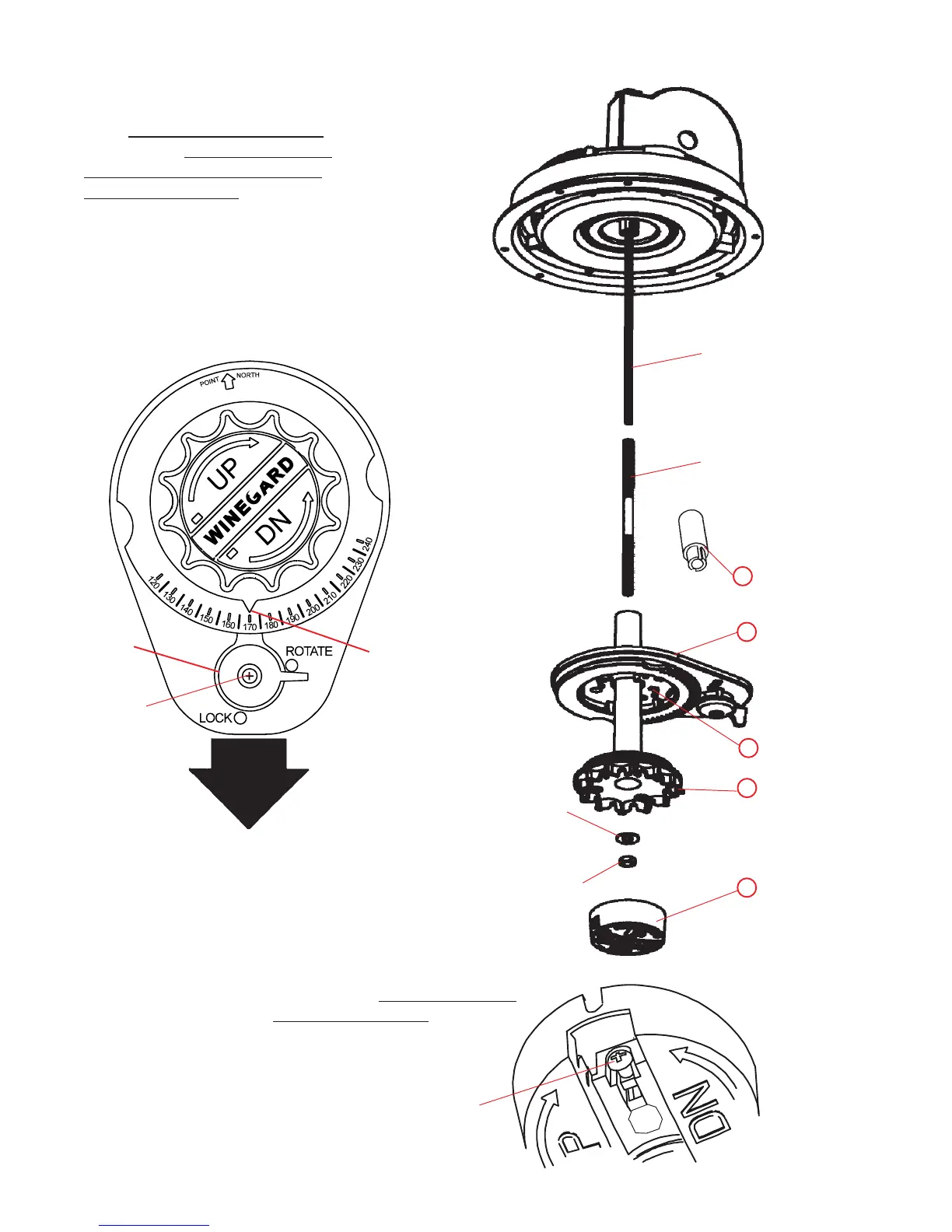

ASSEMBLED VIEW
POINT TO
BACK OF RV
Rotation
Clamp
Red Screw
Pointer must
point to RED
SCREW at
CENTER OF
ROTATION
CLAMP when in
travel position.
1 Ceiling Plate
3 Directional
Handle Extension
4 Directional
Handle
ALIGN POINTER
WITH ANTENNA
TRAVEL POSITION
2 (4) #10 Phillips Flat
Head Screws
FIGURE 13
5 ELEVATING
CRANK HANDLE
(When installed,
extends 2-1/4"
from ceiling).
Snap Handle
into base
when not in use.
CAUTION:
After
INITIAL INSTALLATION,
the antenna SHOULD ROTATE
APPROXIMATELY 360°FROM
TRAVEL POSITION.
The pointer on the
DIRECTIONAL HANDLE
should point towards the RED
SCREW ON THE ROTATION
CLAMP when in TRAVEL
POSITION.
Tighten screw snugly
Threaded Tube
Elevating Shaft
Flat Washer
Nut for
threaded tube
CAUTION:
The antenna MUST BE IN THE
TRAVEL POSITION before
ALIGNING the Directional
Handle and Ceiling Plate.

Winegard RM-DM46 Specifications

Antenna Specifications

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi
aperture efficiency	73%
cross polarization on axis	-21 dB
beamwidth at -3 dB	3.5[o]
beamwidth at -10 dB	7.0[o]

Weight and Dimensions

height when raised	30"
height in the travel position	8"
operating radius	17"
roof space required	26"
weight	12 lbs
antenna height	20.9"
antenna width	19.2"
ship weight	20.6 lbs
