4-9
SECTION 4 –
APPLIANCES AND SYSTEMS
• An interior light should be turned on to
provide a small load which draws off the
battery surface charge.
Water Heater Switches
See Water Heater information elsewhere in
this section for operating instructions.
Water Pump Switch
When use of the self-contained water system
is desired, press the Pump switch (press once to
get to the desired screen, and a second time to
activate or deactivate.) Water will be available as
soon as a faucet is opened.
Refer to Section 7 - Plumbing for additional
information on the water pump and initial start-
up.
NOTE: Some models may be equipped with a
Water Pump switch in the water service
center on the outside of the coach or
within the bathroom area for your
convenience.
SOLAR CHARGE PANEL
–If Equipped
The roof-mounted Solar Charge Panel uses
the sun to help keep your house batteries charged.
A Solar Charge Controller is located near the
monitor panel to show you when the Solar
Charge Panel is actively charging the house
batteries.
The solar charging system installed in your
coach has a maximum input rating of 510 Watts.
Every solar panel connected to the system needs
to be accounted for, this includes all roof
mounted panels and the ground level single solar
port.
3-Port Solar Cap
–If Equipped
The Port Solar Cap (located on the roof) is
intended to make it easy to add additional solar
panels to the roof. Each Solar Port has a
maximum input rating of 150 Watts. The 3 -Port
Solar Cap when fully loaded has a maximum
input rating of 450 Watts.

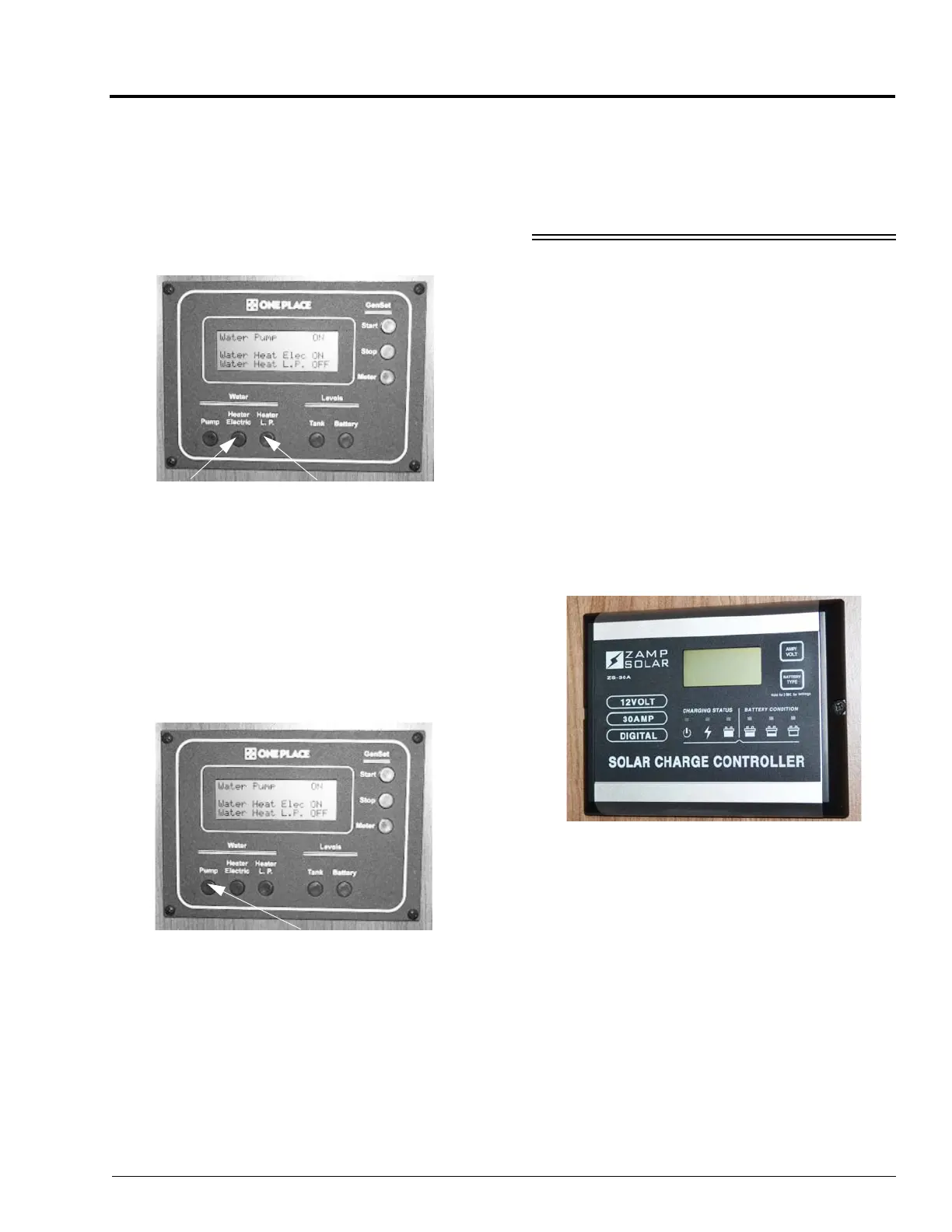

LP Gas
Water Heater
Switch
Electric
Water Heater
Switch
Solar Charge Controller
(Located near monitor panel)
