3-13
SECTION 3 –
DRIVING YOUR MOTOR HOME

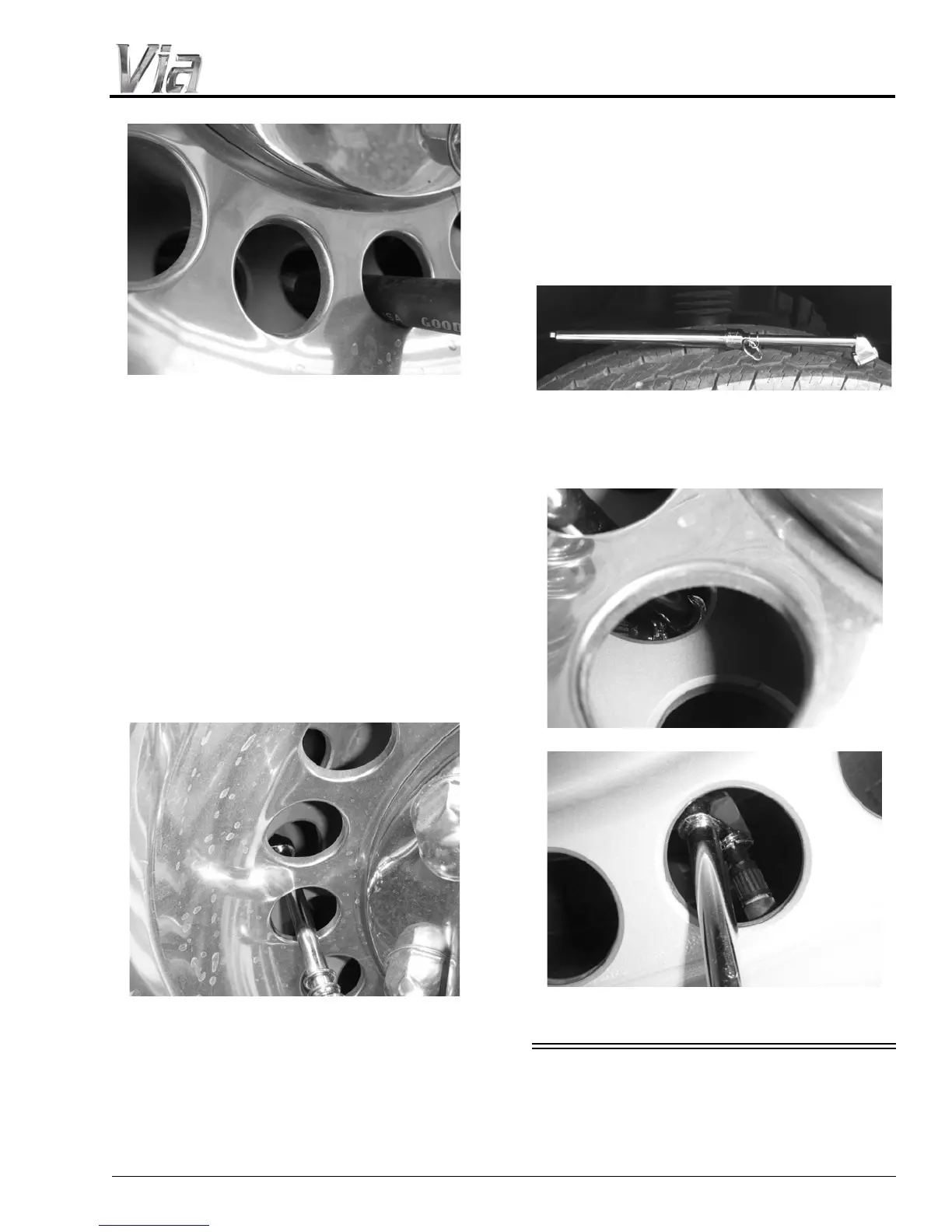

4. Using the hose extension as a remote handle,
unscrew the valve stem cap (retaining cap in
the end of the hose extension).
NOTE: If the valve stem cap and valve stem
extension unscrew as an assembly, pull
the assembly out of the hose extension
end, remove valve stem cap, insert
extension into fuel hose, and reinstall
extension onto valve stem until snug.
Pull off extension hose and re-insert
valve stem cap into end of hose.
5. To check inner dual tire pressure, use the long
handle of the tire gauge to control alignment
and avoid misaligned valve stem deflection.
6. When tire pressure testing is complete,
reinstall the valve stem cap (with the cap still
retained in the hose extension end).
7. Remove hose extension from valve stem cap.
Rear Outer Dual Valve Stem
Access
NOTE: Rear Outer Dual is equipped with a fill-
through extension (no valve stem cap).
1. Obtain a double angle push/pull truck tire
gauge.
2. To check rear outer dual tire pressure, use the
long handle of the tire gauge to control
alignment on the fill-through extension.
TIRES
Improper tire pressure can result in tire
overloading and abnormal wear and also affects
handling, ride characteristics, and fuel economy.
(Shown without wheel liner for unobstructed view)
