WINTACT WT8812 User Manual

-09--08-
Figure 8 Figure 9
Cao: under this mode, long press the right key to calibrate zero point
and complete this process until it beeps for several seconds as shown
in Figure 10.
Figure 10
Figure 4
Figure 5

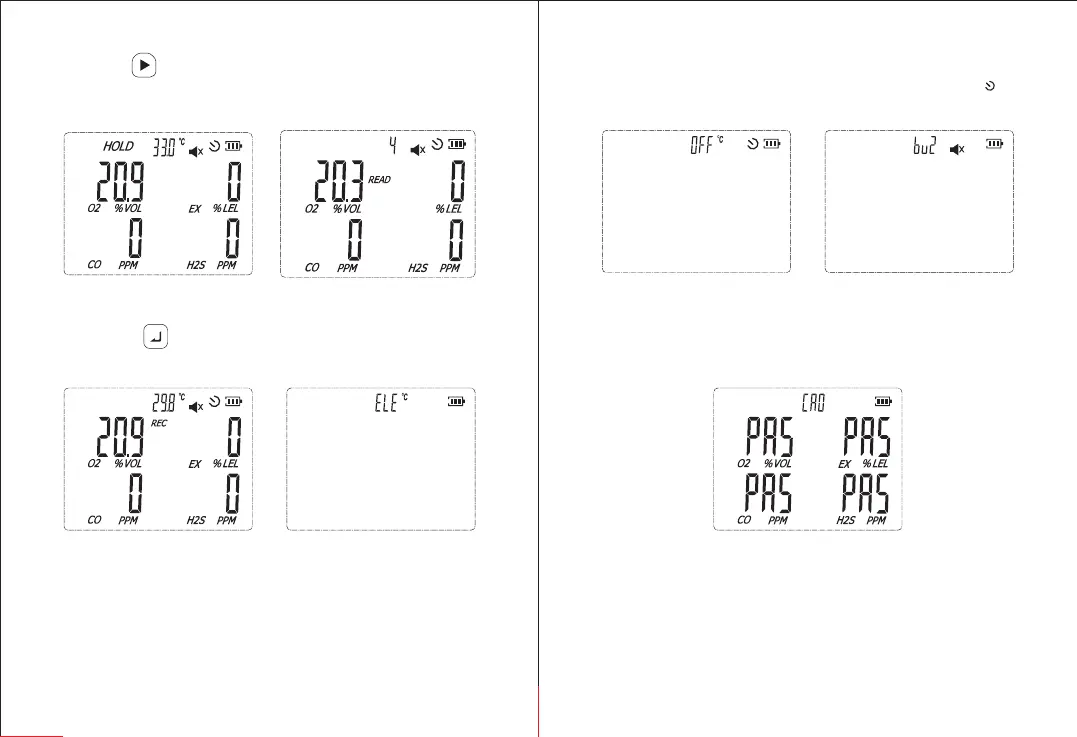

3)Right button : Short press the data hold button as shown in Figure 4
and long press it for reviewing the historical data as shown in Figure 5.
4)Confirm button : Press once the record character flashes and beeps
to record the data as shown in Figure 6, press again to exit record mode.
Figure 6
Figure 7
Long press this mode to enter into set mode with display ELE: under this
mode press the left/right button to shift between the temperature unit ℃
and ℉ as shown in Figure 7.
Short press to switch to "OFF": automatic shutdown switch, press the left
and right keys to display and hide the automatic shutdown symbol .as
shown in Figure 8.
Bu2: under this mode press left/right key to turn on/off the alarm sound as
shown in Figure 9.
