WINTACT WT8812 - Measurement and Alarm Settings

-11--10-

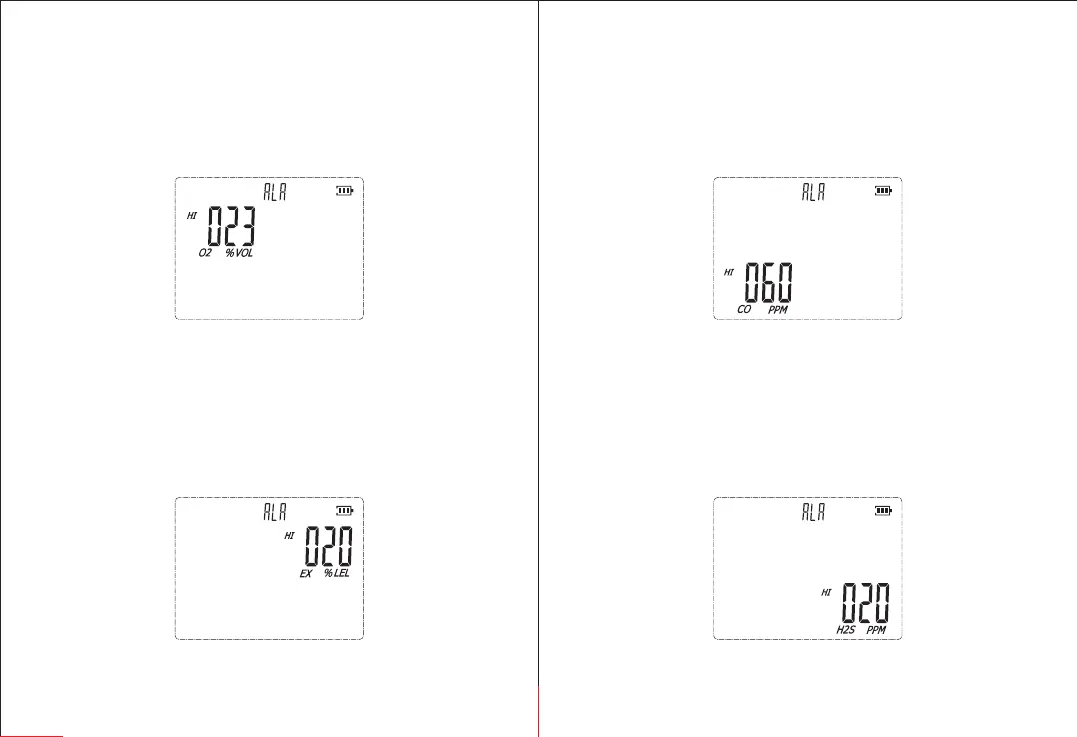

ALA + Oxygen(high/low) : under this mode, press the left/right button to
switch the high/low oxygen alarm value, long press on the right button to set
the alarm value and adjust the value by press the left or right button, then
press the confirm button to enter into next setting value. After all setting
values are set, long press on the right button to complete the setting as
shown in Figure 11.
ALA + flammable gas(high/low): under this mode, press on the left/right
button to switch the high/low flammable alarm value, long press on the
right button to set the alarm value and adjust the value by press the left or
right button, then press the confirm button to enter into next setting value.
After all setting values are set, long press on the right button to complete
the setting as shown in Figure 12.
Figure 11
Figure 12
Figure 13
Figure 14
ALA + CO(high/low): under this mode, press on the left/right button to
switch the high/low CO alarm value, long press on the right button to
set the alarm value and adjust the value by press the left or right button,
then press the confirm button to enter into next setting value. After all
setting values are set, long press on the right button to complete the
setting as shown in Figure 13.
ALA + H2S (high/low): under this mode, press on the left/right button to
switch the high/low H2S alarm value, long press on the right button to set
the alarm value and adjust the value by press the left or right button, then
press the confirm button to enter into next setting value. After all setting
values are set, long press on the right button to complete the setting as
shown in Figure 14.
