Winterhalter UF-M - 3 Connecting the dosing tubes and suction tube

2 | 89014665; 2022-04 | Assembly instructions

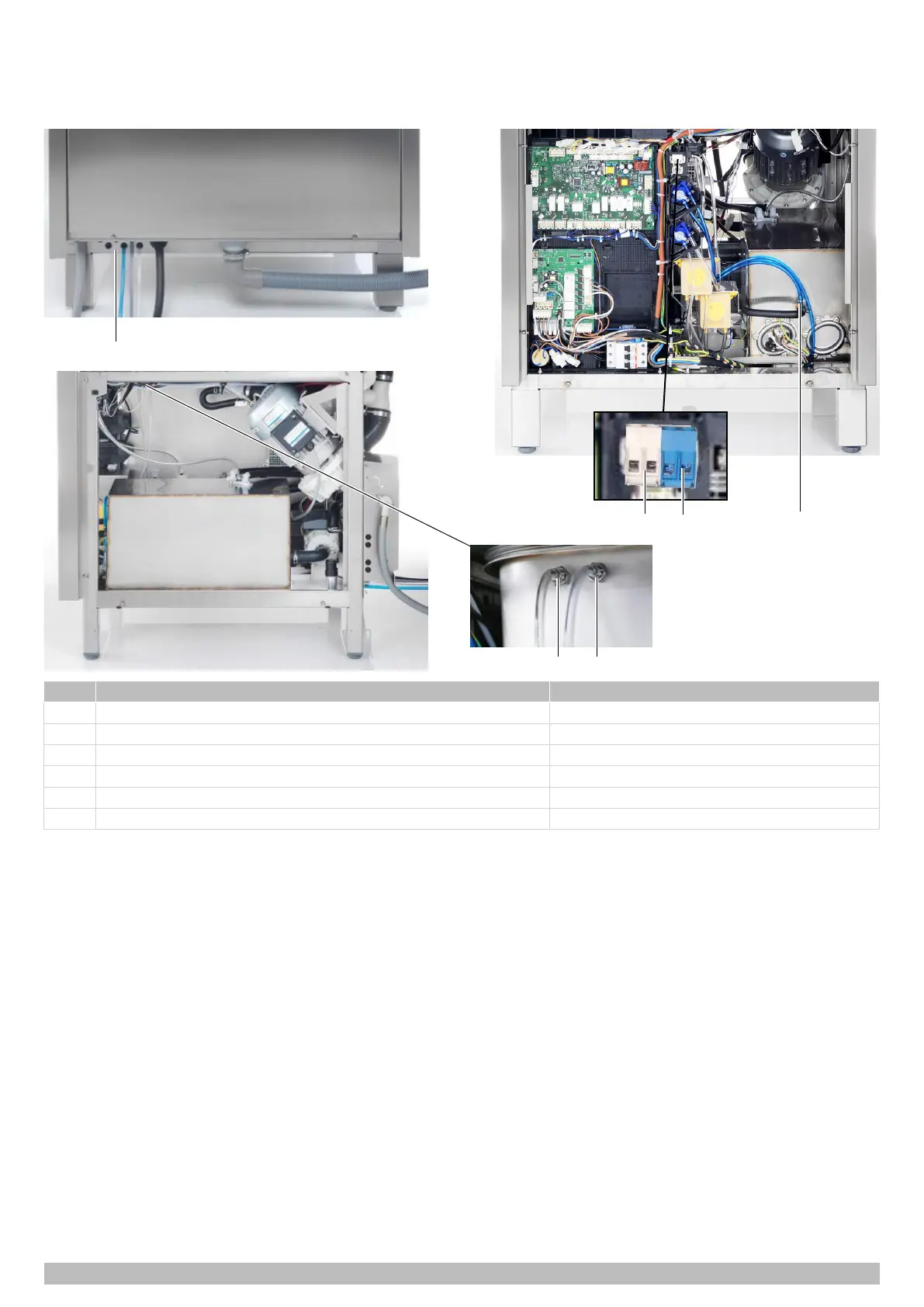

3 Connecting the dosing tubes and suction tube
Terminals
1
6
4
5
2 3
Item Name Note
1 Entries for hoses and cables Rear view of the UF-M
2 Connection for detergent dosing hose View of UF-M from the right
3 Connection for defoamer dosing hose View of UF-M from the right
4 Plug for detergent suction tube with empty indication Front view of UF-M, white plug
5 Plug for rinse aid suction tube with empty indication Front view of UF-M, blue plug
6 Connection for rinse aid dosing hose Front view of the UF-M
Connections for detergent and rinse aid dosing for hoses with an inner diameter of 5 mm are available on the warewasher.
Ø Disconnect the warewasher from the electrical mains supply and secure against unintended activation.
Ø Remove the front and right-side cover from the warewasher.
Ø If present, remove Winterhalter dosing device and insulate electrical connections.
Ø Install the dosing device on-site.
Ø Lead the dosing hose and the connection cable through at the intended point on the back of the warewasher chassis (1).
Ø Fasten detergent dosing hose to detergent connection (2) with wire hose clip.
Ø Fasten the rinse aid dosing hose to the rinse aid connection (6) with a wire hose clip.
Ø Connect the connection cable of the suction tube on the plug (4 / 5).
Ø Ensure that the dosing hose and connection cable are guided kink-free.
