Wireless-tag WT32-SC01 - Board Electrical Parameters; Test Environment; Test Parameters

WT32-SC01
7/14
Wireless-Tag Technology Co., Limited http://www.wireless-tag.com
provides external expansion board. Figure 5 is a schematic diagram of the test points of
the power supply of the development board.

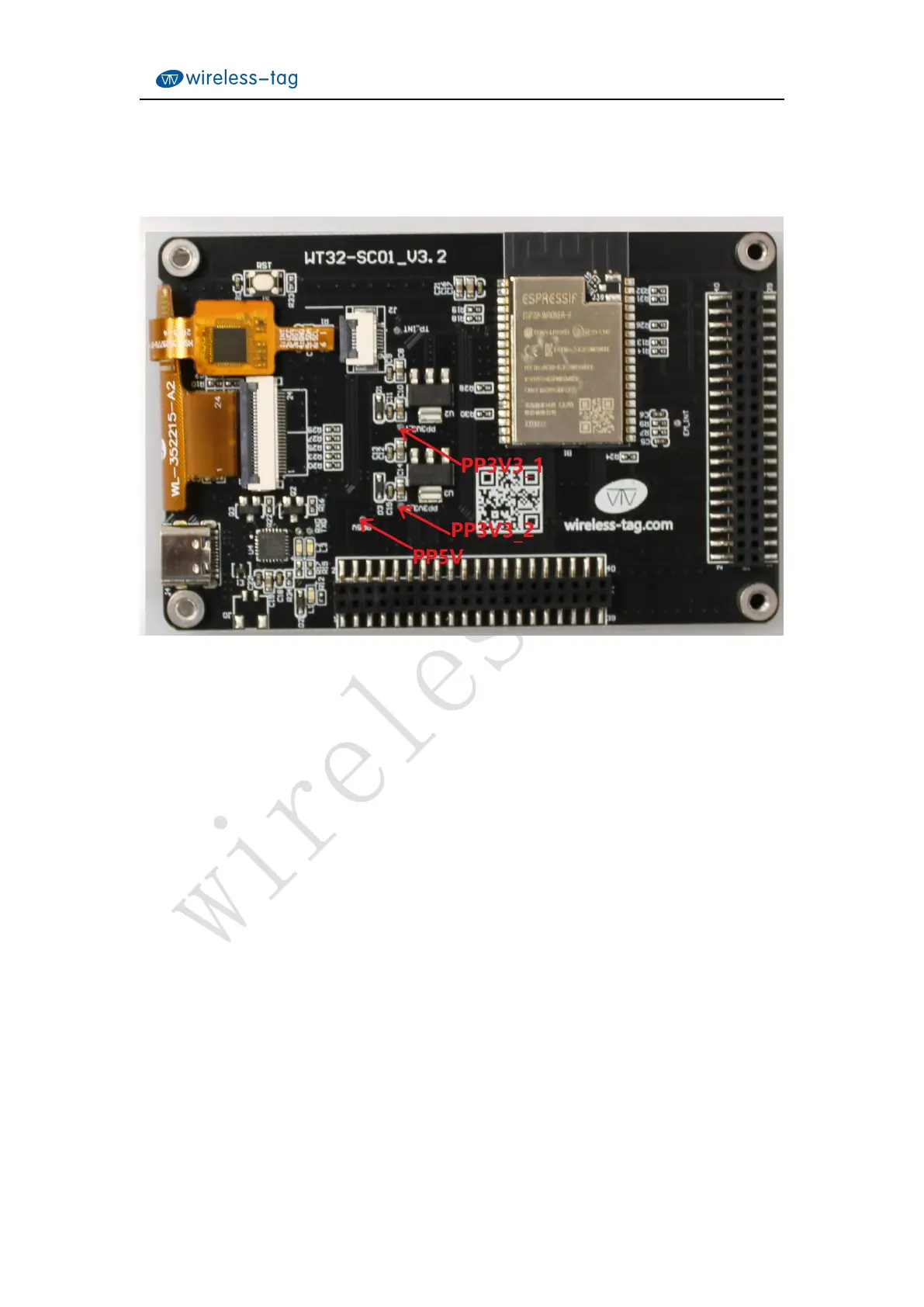

Figure 4-1: Schematic diagram of power supply test points of the development board
Board Electrical Parameters
Test environment:
1、Temperature: Room temperature 25 ℃
2
、
Power supply: 5.0V Voltage ripple V < 100mA
Test parameters:
1
、
Normal working current: 240mA
（
Average current
）
2
、
Working current under sleep: Less than 18mA
（
Average current
）
