WT32-SC01
2/14
Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

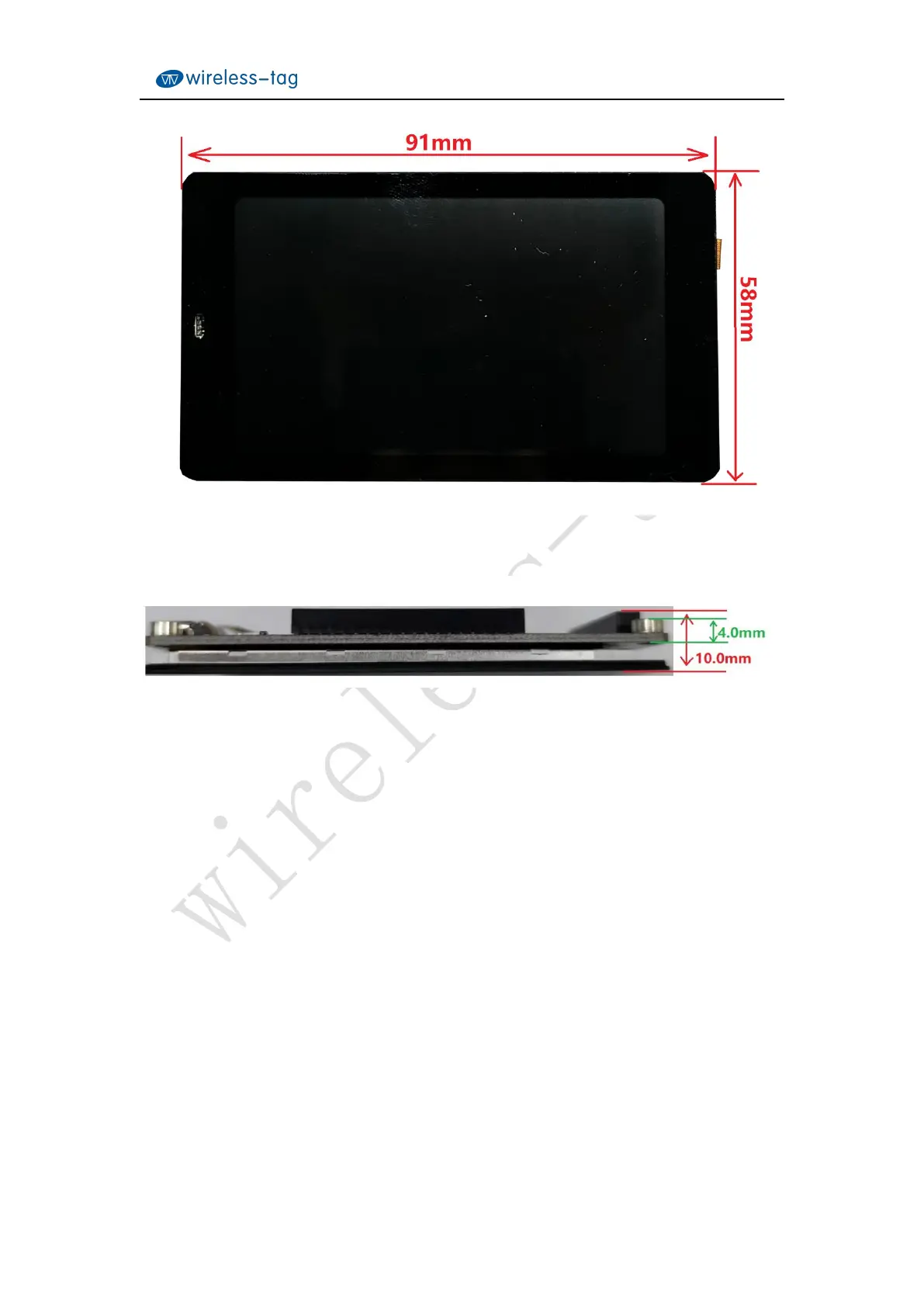

Figure 2-2
：
Physical dimension diagram 1
Figure 2-3
：
Physical dimension diagram 2
Hardware Resource
The hardware resources of the development board are as follows:
Figure 2 shows the physical front view of the development board. It consists of a 3.5-inch
LCD screen with a resolution of 320x480 and a capacitive touch pad, and it Supports two
touch.
Figure 3 is the physical figure on the back of the development board, which contains
the following hardware resources:
1
、
ESP32-WROVER-B Module
Esp32-wrever-b is a Wi Fi + Bt + ble MCU module for all kinds of applications. It has
powerful functions and wide applications. It can be used in low-power sensor
networks and demanding applications, For example, voice coding, audio streaming
and MP3 decoding. The parameters of this esp32-wrapper-b are:8Mbyte
PSRAM+4Mbyte Flash.
