communication, control, etc. So as to achieve functional expansion to meet the various
needs of users. The 8 and 9 interfaces are connected by Pin to Pin, so the circuit
connection of the expansion board inserted into the 8 interface and the 9 interface is the
same, but only to meet the user's experience of installing the expansion board in different
directions. Simultaneously: When the IO of the two expansion boards does not conflict,
two expansion boards can be inserted at the same time to achieve two expansion
functions. Expansion board interface specifications: 2.0mm pitch, 2X20Pin, can be installed
on both sides of the horizontal row. The interface definition is shown in Figure 3-Extended
Edition Interface Definition Diagram.
10、Power Indicator
The power indicator (red light) lights up when you plug in the USB cable.
11
、
UART Communication Indicator
The TXD indicator and RXD indicator in the UART will flash when there is data flow.

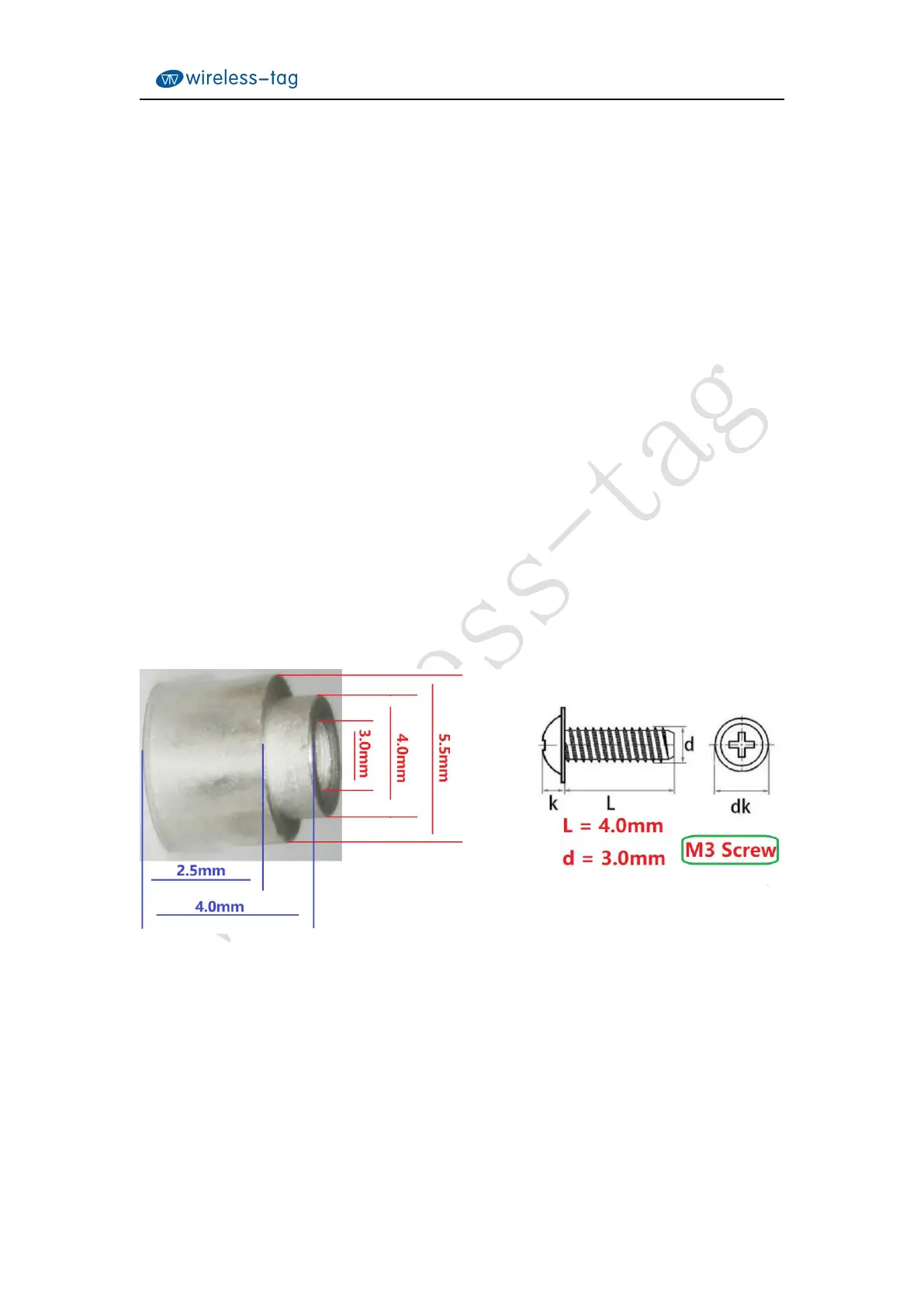

12、SMD-RAP
The SMD-RAP is suitable for M3 screw。
