WiseWay GW1949 - Clearances and Installation Specifics; Clearances to Combustibles; Residential and Mobile Home Installation

5

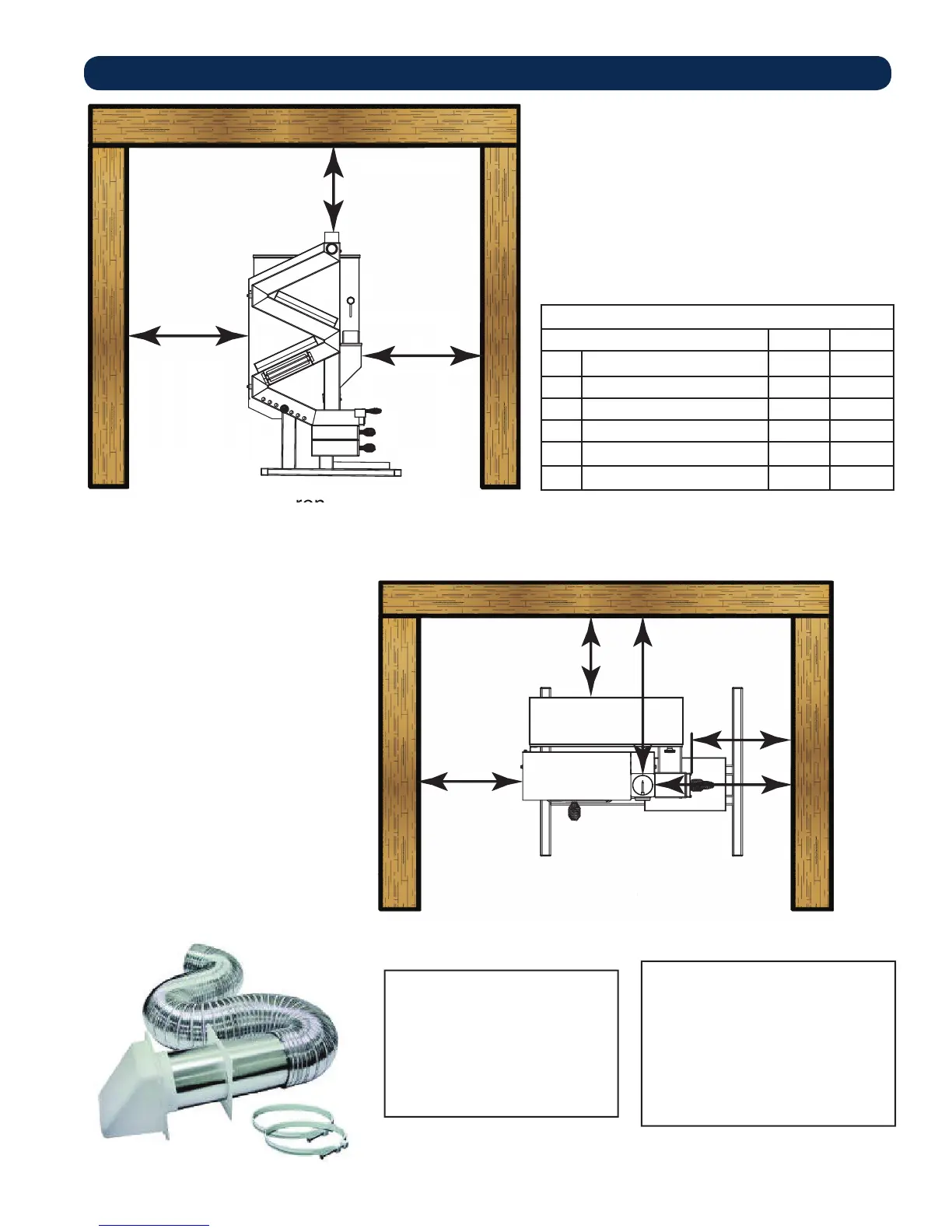

Clearance to Combustibles
Dimension Inch mm
A Left Sidewall to Stove 3 76
B Backwall to Stove 2 51
C Backwall to Flue* 13.5 343
D Sidewall to Flue* 14.6 369
E Ceiling Height 18 457
F Right Sidewall to Stove 16 457
STOVE PIPE INSTALL/ HELPFUL HINTS
Back wall / Arrière Mur
Front
Side wall / Paroi Latérale
Side wall / Paroi Latérale
F
r
o
n
t
A
F
D
B
C
Front
F
r
o
n
t
A
F
E
Mobile homes require
outside air, use a vent with a
rigid or flex pipe connected
to the stove, and an outside
screen vent cap, the stove
must be secured to the fl oor,
and grounded with a number
10 gauge wire.
Residential standard
construction requires fresh
air source within 24” of the
stove. Follow all state and
local codes for outside air
with a solid fuel appliance.
