Using < > selector all menus can be accessed in sequence, push <ON/SEL> to enter edit mode:
< > to setup field
<ON/SEL> again to confirm changes and exit.
exit without confirmation if
-no button is pressed after a few seconds (4sec) time out
or
-OFF button is pressed

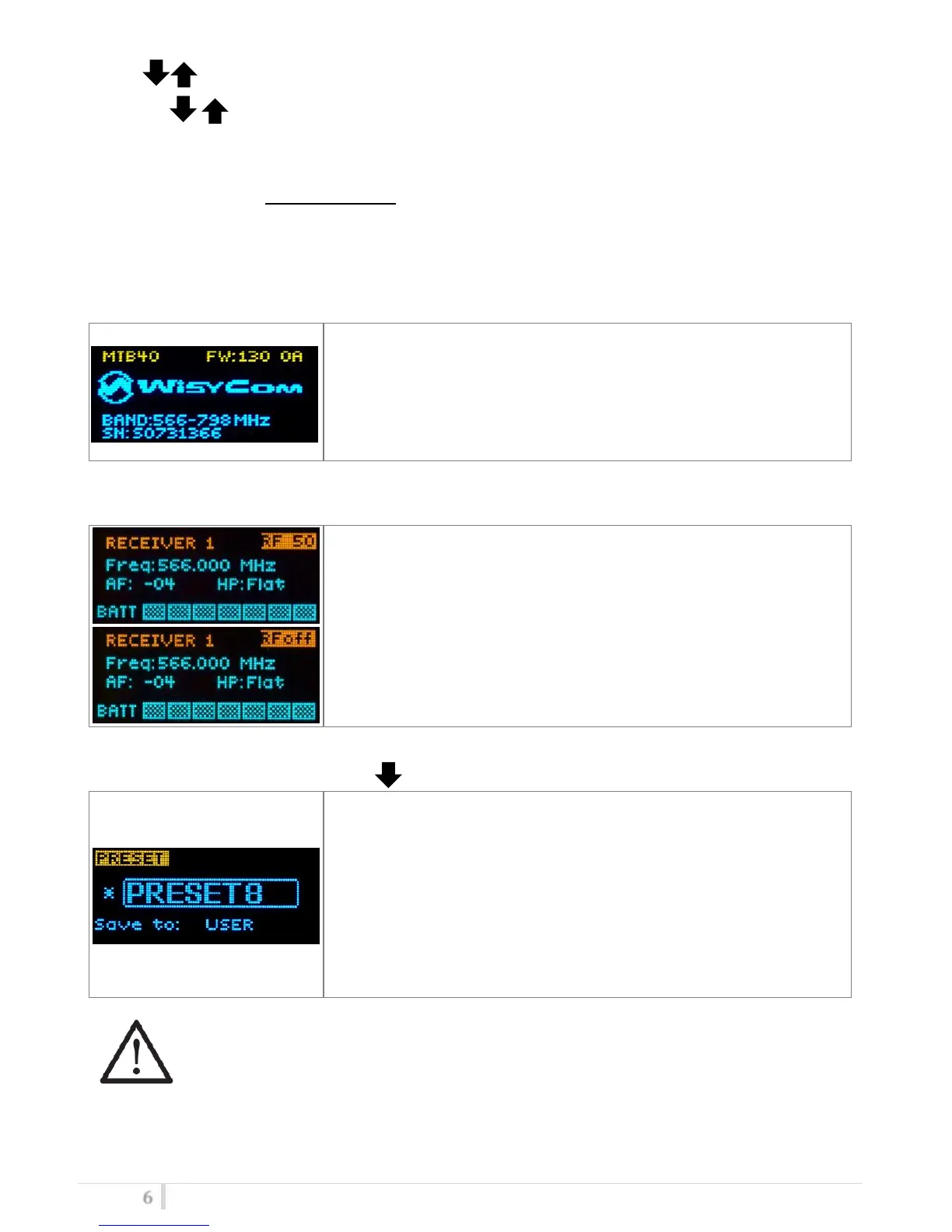

<START UP> menu
These menus are displayed during power up for few seconds.
The second menu gives indication on product:
- product id (MTB40),
- the firmware release (ex. 1.30.0A),
- the band in extended format and
- the serial number.
Keep selector pushed to hold this menu!
<STATUS> menu
This is the first menu displayed after power up.
Major info are displayed:
- Current channel/group or the receiver name if the MTB40 is
already synchronized with a receiver
- Current frequency (i.e. 566.000 MHz)
- Mic gain (i.e. AF: -04 dB) and high pass filter (i.e. HP: Flat Hz)
- “RF 50” or “RF OFF” on top right if RF transmission is ON or
OFF
- Batteries charger (a bar with 7 level)
<PRESET> menu
This menu can be entered by pushing .
MTB40 can recall configuration presets.
“FACTORY” recalls the Wisycom factory configuration.
“USER” recalls the user configuration (the transmitter configuration
is copied into the USER using the “save to” submenu).
All “USER” menus are not locked by default, thus this is quick way to
unlock features!
When the user changes some parameters from the PRESET
configuration (for less than frequency) an asterisk appears on the
top-right corner until a save command is executed.
The other 8 configuration presets are user programmable thru the infrared and the PC interface
(using the programmer UPK 300/UPK
Mini
or the receiver MRK950/MRK960).
We provide the device with some preset configurations specifically designed for certain types of
microphone or applications (it’s possible to change these presets in any time using the TX manager).
All parameters can be “left unchanged”, “changed” or “changed and lock”, allowing a very flexible
way to pre-program MTB40 configuration.
