3 Features
1、Voltage：3.3V~5V
2、Working current: ≈15mA, broadcast current: ≈150uA, standby current: 10uA~50uA
3、Volume：51.3 X 36 X 15mm
4、Measuring dimensions:
Acceleration: X Y Z
Angular velocity: X Y Z
Attitude angle:X Y Z
Magnetic field：X Y Z
6、Range: Acceleration: ± 16g, Angular velocity: ± 2000 ° / s,Angle:X Z ±180° Y ±90°
7、Stability: Acceleration: 0.01g, Angular speed 0.05° / s.
8、Attitude measurement stable:X Y 0.05° Z :1°
9、Data output: Acceleration, Angular velocity, Angle,Magnetic field, Port status
10、 The data output frequency: 0.1Hz ~50Hz (10Hz default)
11、Data Interface: UART(TTL , Baud rate 115200)
12、Expansion port function： Analog input（0~VCC, Digital input, Digital output)
13、Bluetooth transmission distance：>50m
14、 BLE 5.0：Support Android /IOS
4 Axial Diron

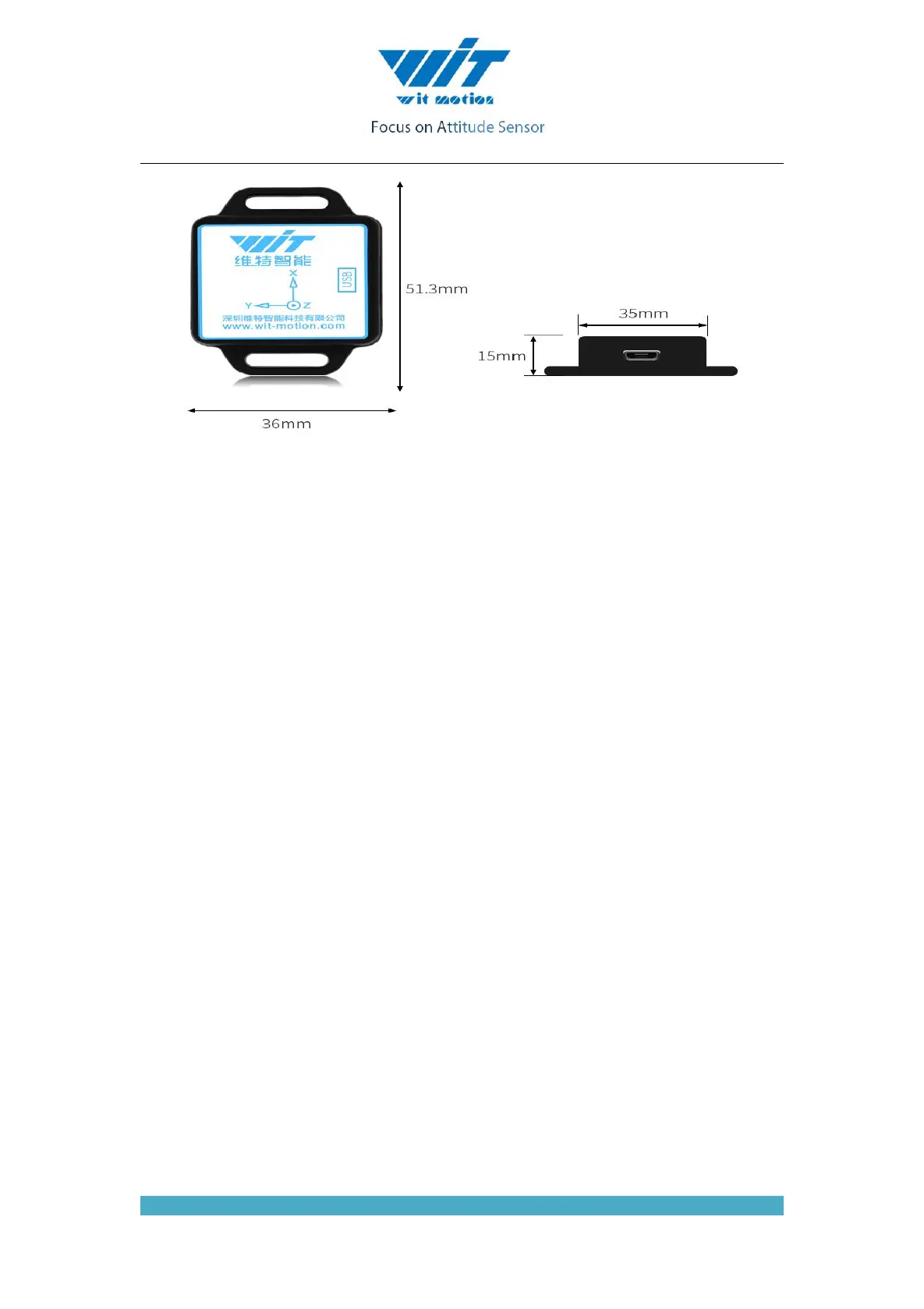

As shown in the figure above, the coordinates of the module are indicated, and the upper is
the X-axis, the left is Y axis, the Z axis is perpendicular to the surface of the paper to yourself.
