2 Use Instructions with PC
For configuration setting, it is recommended to connect with the PC software
before offline record.
2.1 Connection Method
PC software is only compatible with Windows system.
Link to WT901SD’s demo video
2.1.1 Serial Connection

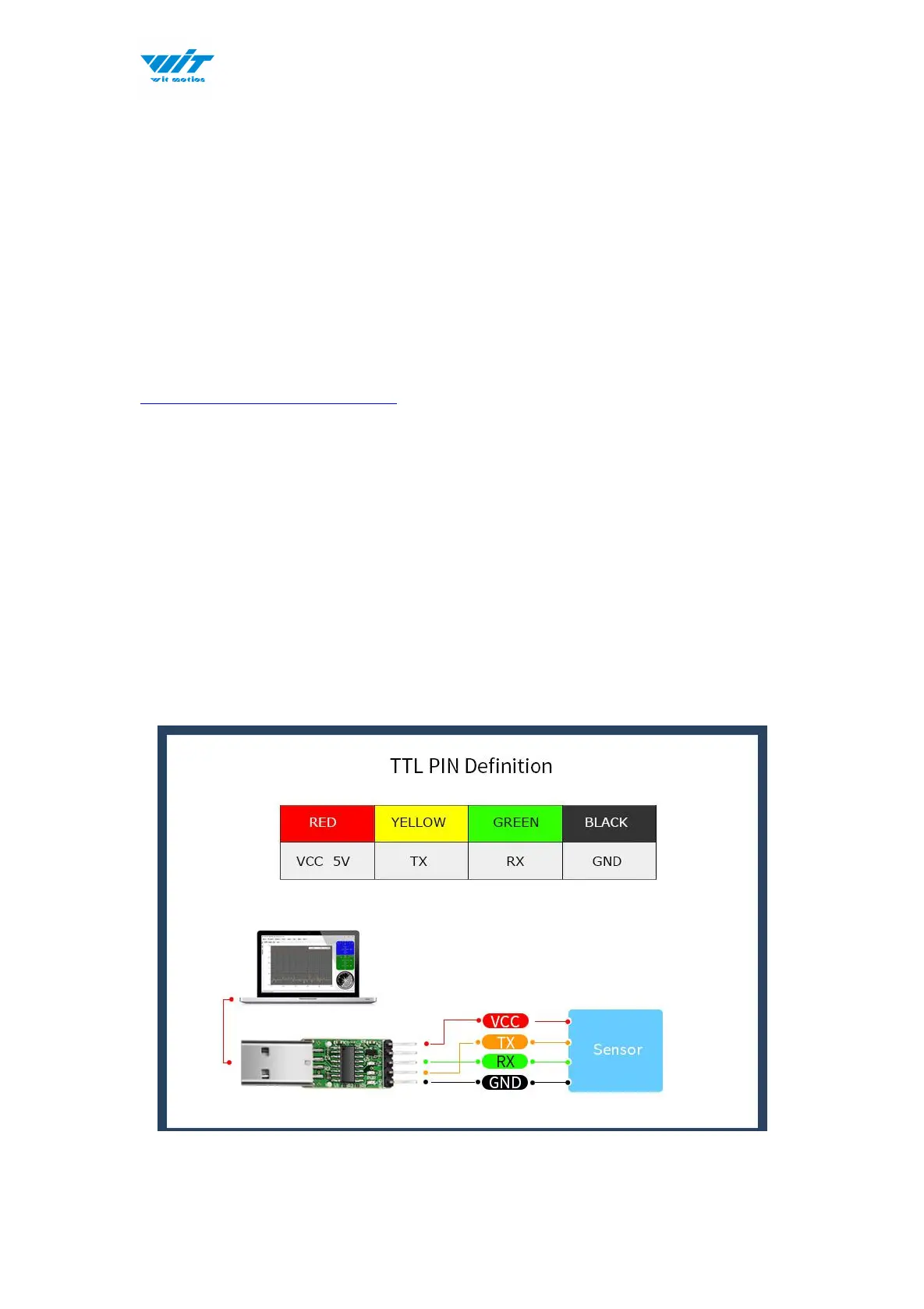

Step 1. Connect the sensor with a serial converter
PIN Connection:
VCC - 5V
TX - RX
RX - TX
GND - GND
(When connecting with computer, VCC-5V is recommended.)
