WNT HDG2 - Technical Specifications and Certificate; Clamping Forces and Torques

________________________________________________________________________________________
www.wnt.com XND.00004.023_A - 02/2018 25
11 Zertifikat / Certificate
Spannkräfte und Drehmomente / clamping forces and torke
Max. Drehmoment am Spannhebel / max. torque on the clamping lever
HDG2 100: M max. 10 ± 1 Nm
HDG2 125: M max. 14 ± 1 Nm
HDG2 160: M max. 14 ± 1 Nm
Max. Spannkraft (elektronisch gemessen)
Max. clamping force (measured electric)

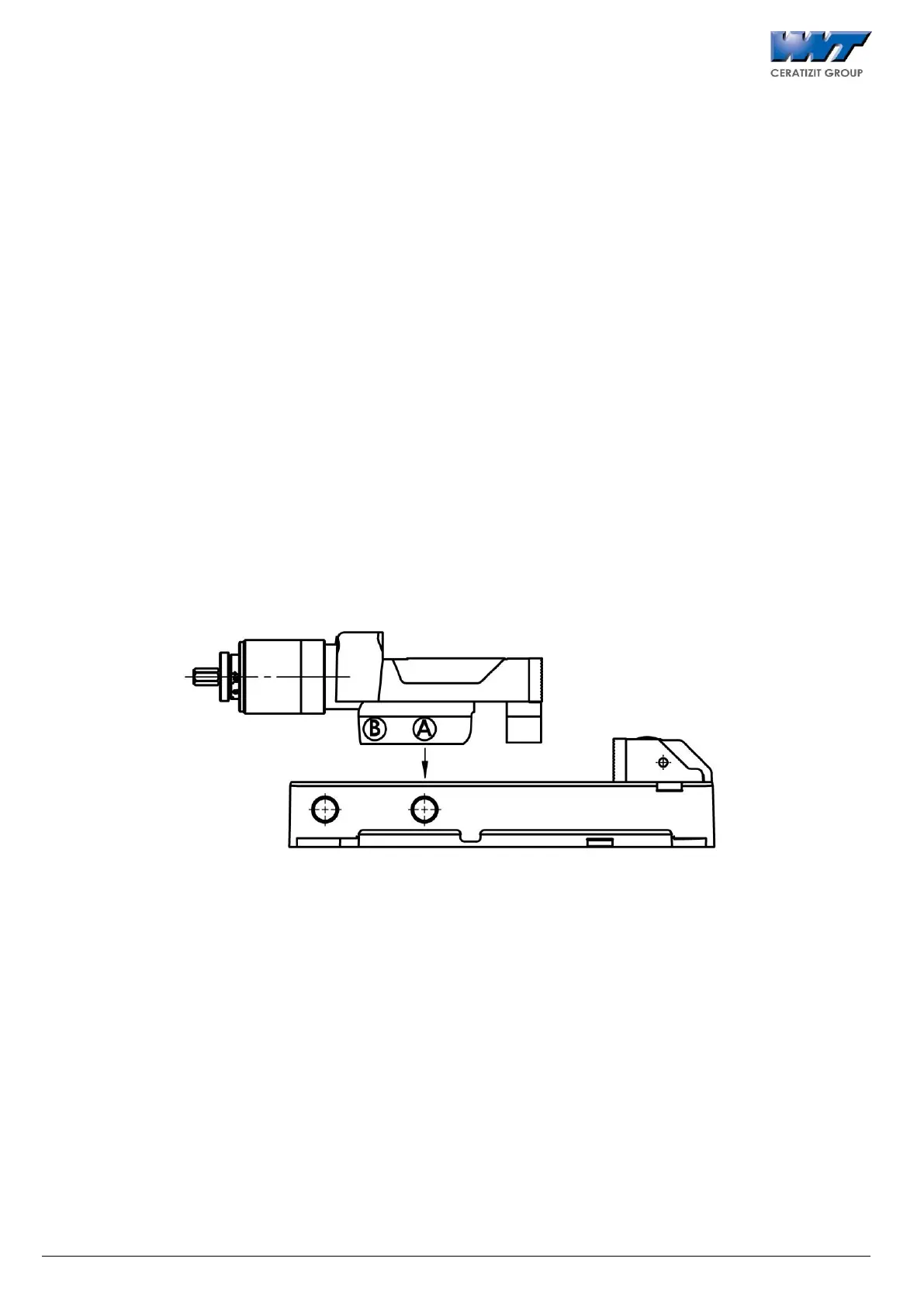

(Steckbolzen in Pos. A / locking pin at pos. A)
HDG2 100: F max. 28 kN
HDG2 125: F max. 38 kN
HDG2 160: F max. 51 kN
Max. Spannkraft / max. clamping force
(Steckbolzen in Pos. B / locking pin at pos. B)
HDG2 100: F max. 31.5 kN
HDG2 125: F max. 44 kN
HDG2 160: F max. 65 kN
