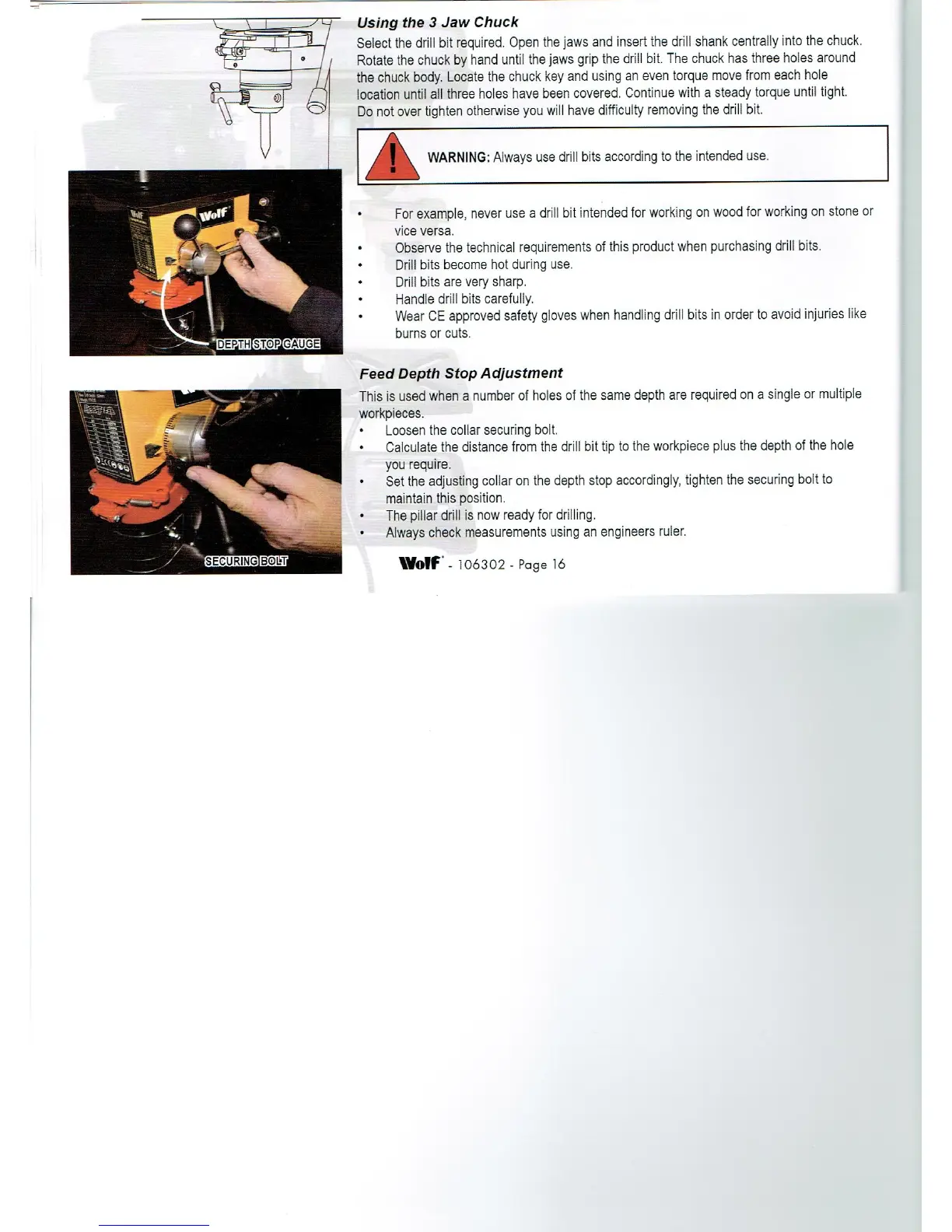

Wolf 106302 - Chuck and Depth Stop Operation; Using the 3 Jaw Chuck; Feed Depth Stop Adjustment

Using
the 3
Jaw Chuck
Select
the drill
bit
required.
Open
the
jaws
and
insert the drill shank
centrally
into
the chuck.
Rotate the
chuck
by
hand until the
jaws grip
the
drill bit, The chuck has three
holes
around
the chuck
body.
Locate
the chuck
key
and
using
an
even
torque
move
from each
hole
location until
all three
holes have been
covered. Continue
with a
steady torque
until
tight.
Do not over
tighten
othenivise
you
will have
difficultyremoving
the drill bit.
A
WARNlNG:
Always
use
drill bits
according
to the intended
use.
-
For
example,
never
use a drill
bit intended for
working
on wood
for
working
on stone
or
vice
versa.
-
Observe
the technical
requirements
of this
product
when
purchasing
drill bits.
-
Drill bits
become hot
during
use.
-
Drill bits
are
very
sharp.
-
Handle drill
bits
carefully.
'
Wear
CE
approved
safety gloves
when
handling
drill bits in order to avoid
injuries
like
burns
or cuts.
Feed
Depth
Stop Adjustment
This is used
when a number of
holes of the same
depth
are
required
on a
single
or
multiple
workpieces.
-
Loosen
the
collar
securing
bolt.
-
Calculate
the
distance from the drill
bit
tip
to the
workpiece
plus
the
depth
of the hole
you require.
~
Set
the
adjusting
collar on the
depth stop accordingly,
tighten
the
securing
bolt to
maintain
this
position,
-
The
pillar
drill is
now
ready
for
drilling.
-
Always
check
measurements
using
an
engineers
ruler.
Wolf-106302
.
