Wolf AHU TE - External Unit Connections; Joining Units and External Connections

16
3064058_201610
AHU TE
AHUW TE
Installationinstructions
Connectingunits
withscrews

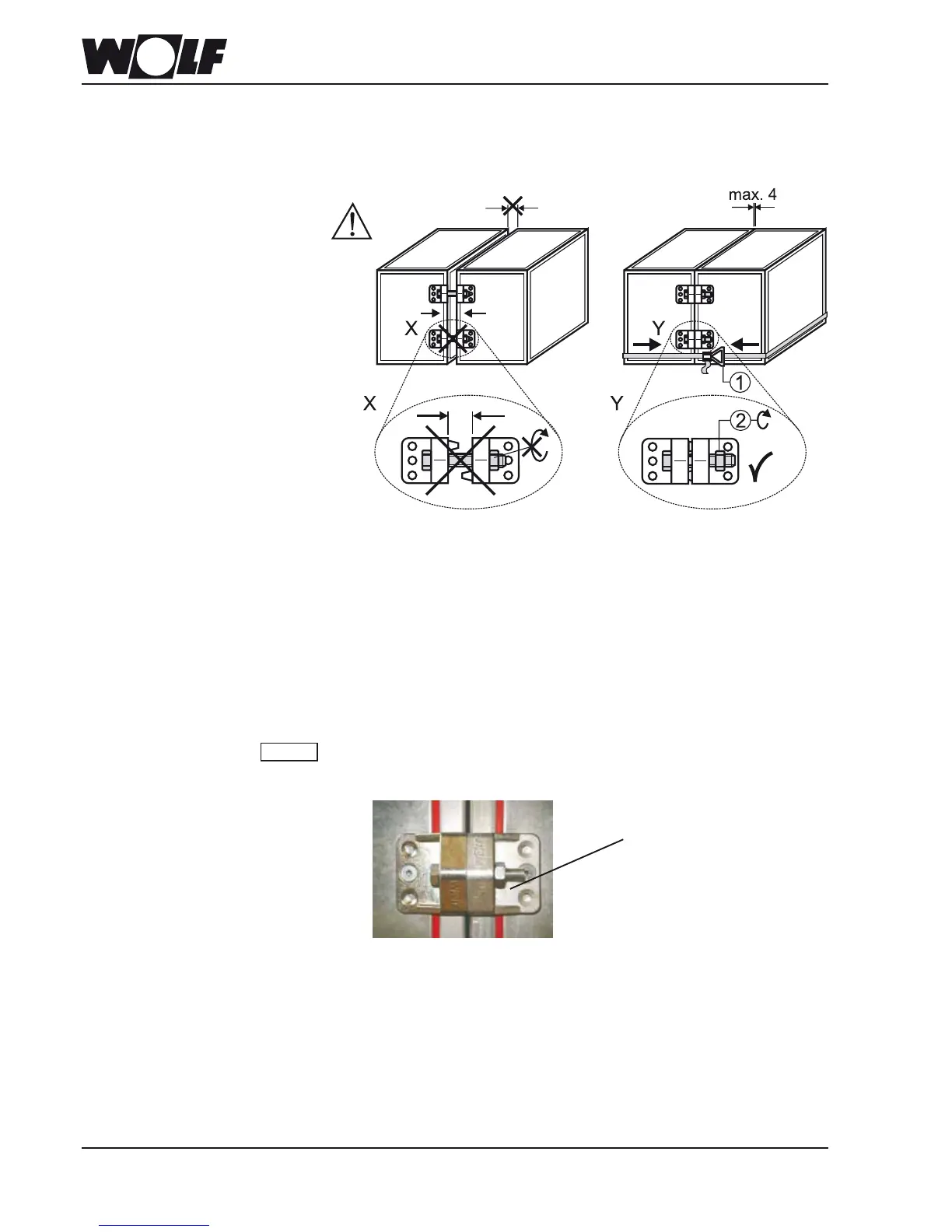

M8screwsareusedtojointhecubesunit.Theframesectionsareprovidedwithxing
elements at the appropriate points. Alwaysensurethattheindividualapplianceparts
arepushedrmlytogetherbeforettingtheM8screws.
Iftheconnectorsareontheoutside,theunitsinquestioncanbeconnectedbut
undernocircumstancescantheassemblybemovedasasingleunit.
Note
External appliance connection
Tensioning straps may be used to make the assembly of the cube units easier. Position
the appliance parts next to each other and close the gap between them with tensioning
straps. Then bolt the components together by means of the connectors supplied.
The individual transport units can always be lifted and transported when units are joined
internally.
External appliance connection
