Installation Information

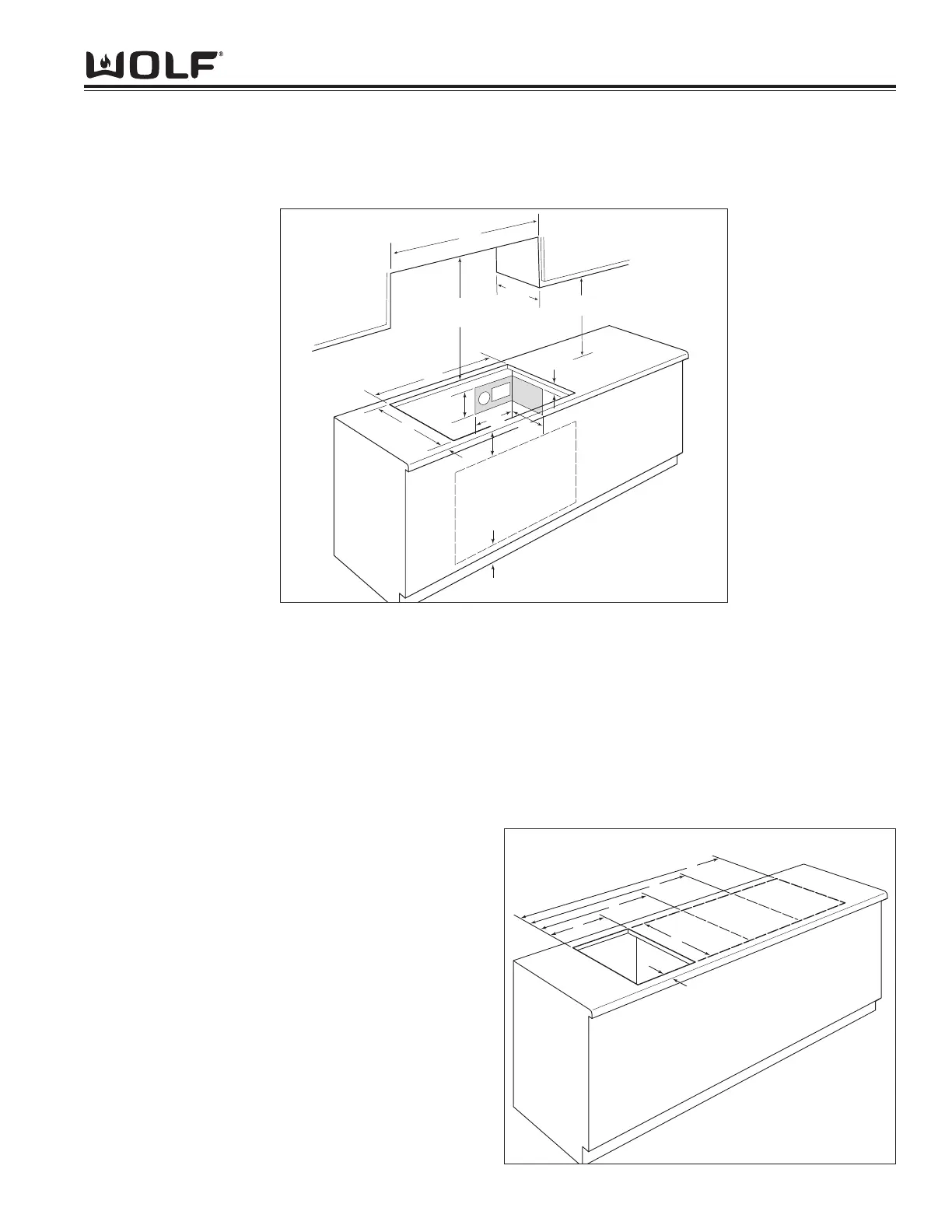

36” GAS COOKTOP INSTALLATION DIMENSIONS
Area Requirements:
Note: Countertop opening dimensions that are shown must be used. Given dimensions provide required clear-
ances.
** 18” (45.7cm) minimum clearance upper cabinet to countertop within 7” (17.8cm) minimum side
clearance to combustible surface above countertop.
*** 24” (61cm) minimum clearance between top of cooking surface and bottom of wood or metal cabinet which is
protected by not less than 1/4” (.6cm) flame retardant millboard covered with not less than No. 28 MSG sheet
steel, .015” (.04cm) stainless steel, or .024” (.06cm) aluminum or .02” (.05cm) copper.
*** 30” (76.2) minimum clearance between top of cooking surface and bottom of an unprotected wood or metal
cabinet.
Note: Do not seal cooktop to countertop.
36" oven cutout location
19
1
/4"*
(48.9)
35"*
(88.9)
E
2
1
/2"
min
(6.4)
3
1
/2"
(8.9)
10"
(25.4)
4"
(10.2)
10"
(25.4)
3
1
/2"min
(8.9)
7
3
/4" min
(19.7)
E
G
* Dimensions may vary
by ± 1/8" (.3 cm)
36"
(76.2)
13"
(33.0)
24" or 30"***
(61.0 or 76.2)
18"**
(45.7)
to cooking surface
Fig. 3-5. 36” Installation Dimensions
B
A
C
D
E
2
1/2 "
min
Installation of Multiple Units
Integrated units can be installed together or with 30” or
36” cooktops. Where multiple units are installed side-
by-side, the cut out dimensions are added together.
Then add an additional space of 1-1/4” to each unit, to
get the total cutout width. (See Figure 3-7).
Cut-out Dimensions
A Width of single module
B Depth of module
C Combined width of two modules plus 1-1/4”
D Combined width of three modules plus 2-1/2”
E Combined width of four modules plus 3-3/4”
