Spark Module and Support Plate Removal
NOTE: It is recommended to note and label the elec-
trode wire locations before removing a spark module.
The spark modules are mounted to the spark module
support plate on the bottom of the burner box. To
access the spark modules, locate the screw(s) securing
the spark module support plate to the bottom of the
burner box and extract. The spark module support
plate will hinge away from the burner box. Disconnect
the wires from the spark module. Then, extract the
module mounting screws and pull the module from the
support plate. (See Figure 4-9).
Lead Wire Removal
The lead wire is connected to the spark module and the
spark electrode. To remove the lead wire, follow the
preliminary steps listed at the beginning of this section
first. Now, unplug the lead wire from the terminal con-
nection at the spark module and lift the lead wire out.
Power Cord with Grip Removal
To remove the power cord, follow the preliminary steps
listed at the beginning of this section first. Next, unplug
the power cord plug connector at the harness. Now,
extract the screw that secures the ground terminal of
the power cord to the burner box. Squeeze the tabs of
the grip connector (grip connector secures the power
cord to the burner box) and pull the power cord down
through the opening and out of the burner box.
(See Figure 4-10).

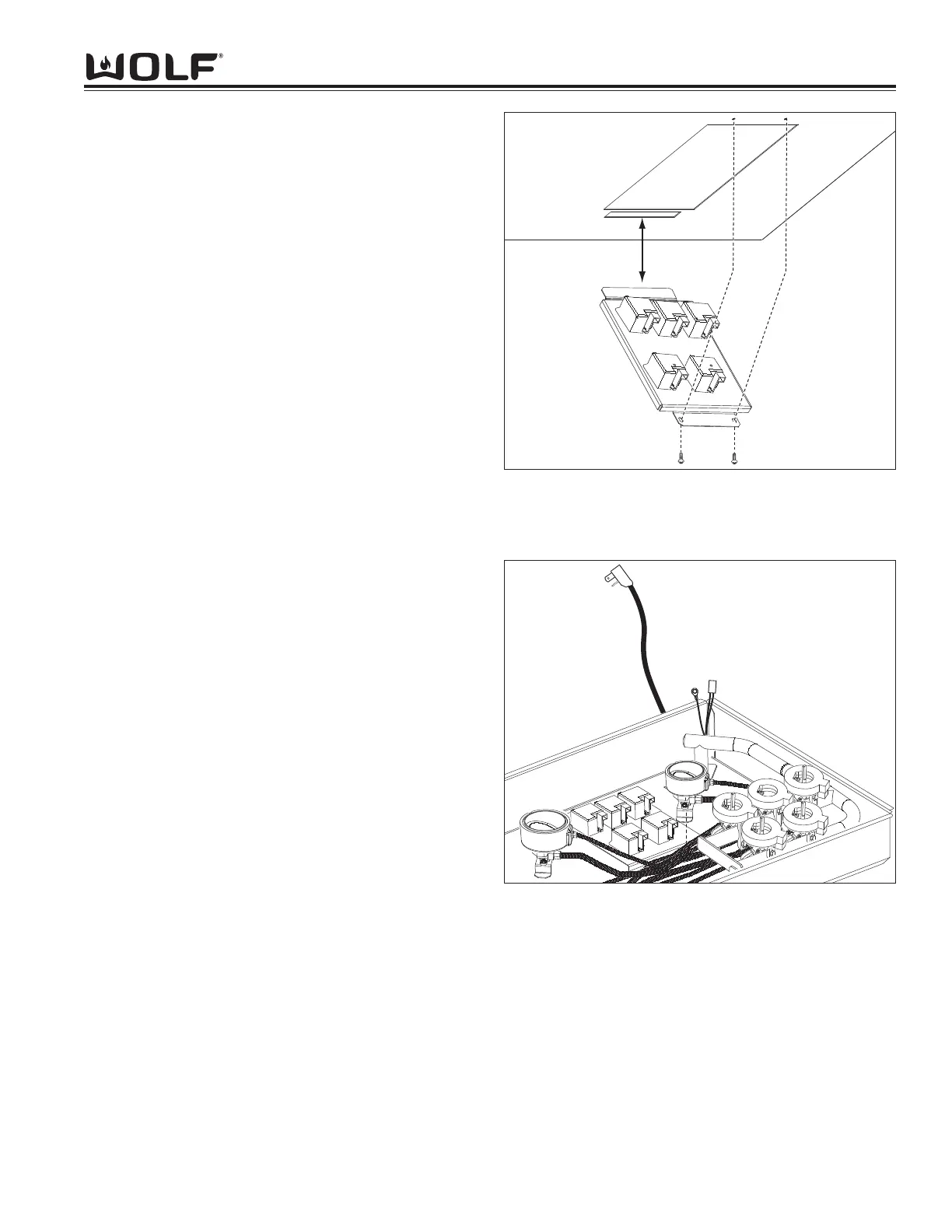

Figure 4-9. Spark Module & Support Plate Removal
Figure 4-10. Power Cord Removal
