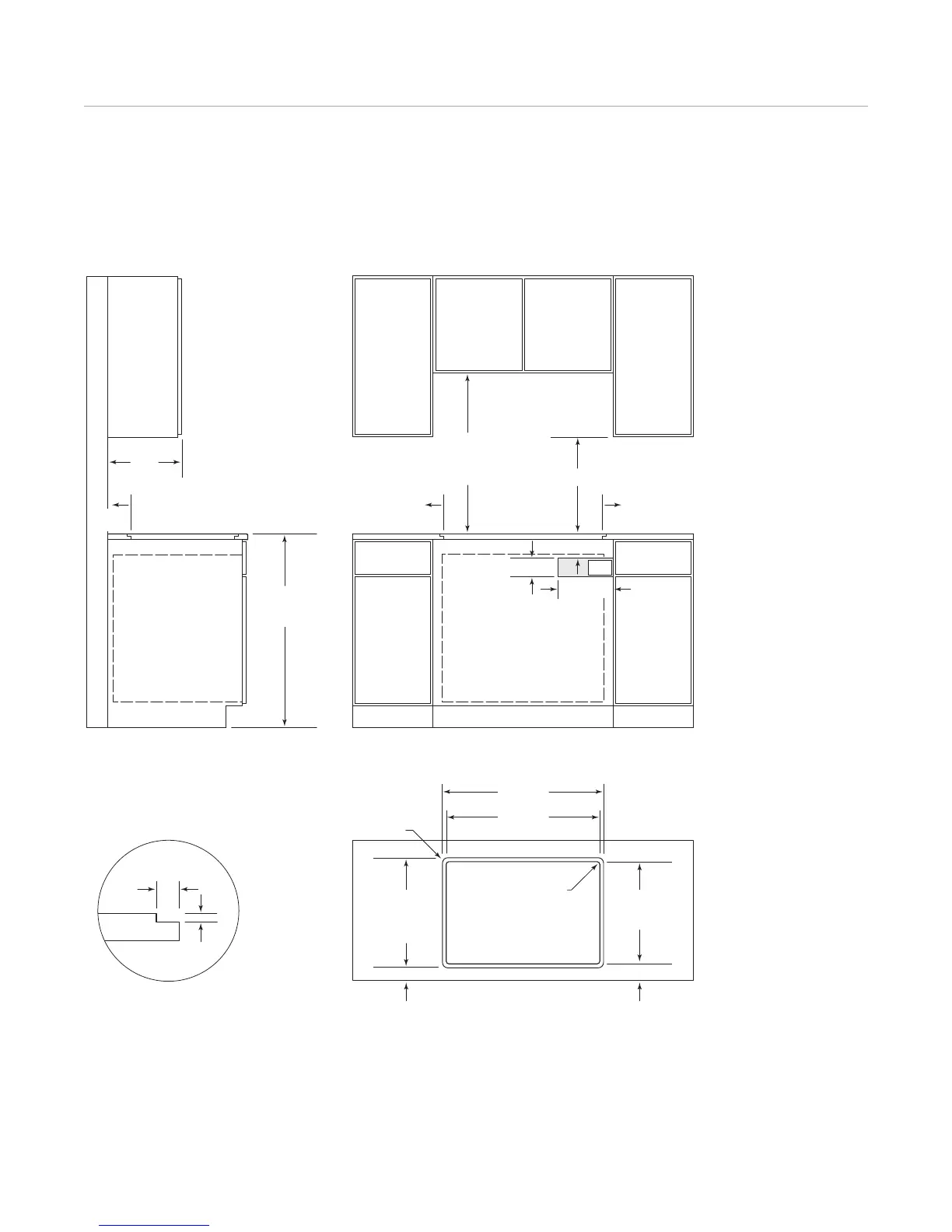

Wolf ICBDF304 - Page 27

Wolf Induction and Electric Cooktops 27
wolfappliance.com/specs
457 mm min
914 mm
FLOOR TO
COUNTERTOP
762 mm min
COUNTERTOP
T
O COMBUSTIBLE
M
ATERIALS
762 mm OVEN OPENING
114 mm
254 mm
89 mm
E
S
EE COUNTERTOP
C
UT-OUT BELOW
721 mm
CUT-OUT WIDTH
COUNTERTOP CUT-OUTRECESS FOR FLUSH INSTALLATION
FRONT
492 mm
CUT-OUT
DEPTH
62 mm m i n
537 mm
RECESS
FOR FLUSH
INSTALLATION
40 mm
51 mm T
O
C
OMBUSTIBLE
*
51 mm T
O
C
OMBUSTIBLE
*
51
mm*
S
IDE
CABINET
330 mm
max
*Minimum clearance from cooktop cut-out to combustible materials up to 457 mm above countertop.
NOTE: Electrical location applies only to installation with built-in oven.
8 mm
22
mm max
COUNTERTOP
PROFILE
33 mm
RADIUS
11 mm RADIUS
765 mm
RECESS FOR FLUSH INSTALLATION
762 mm Unframed Cooktop
FLUSH INSTALLATION
