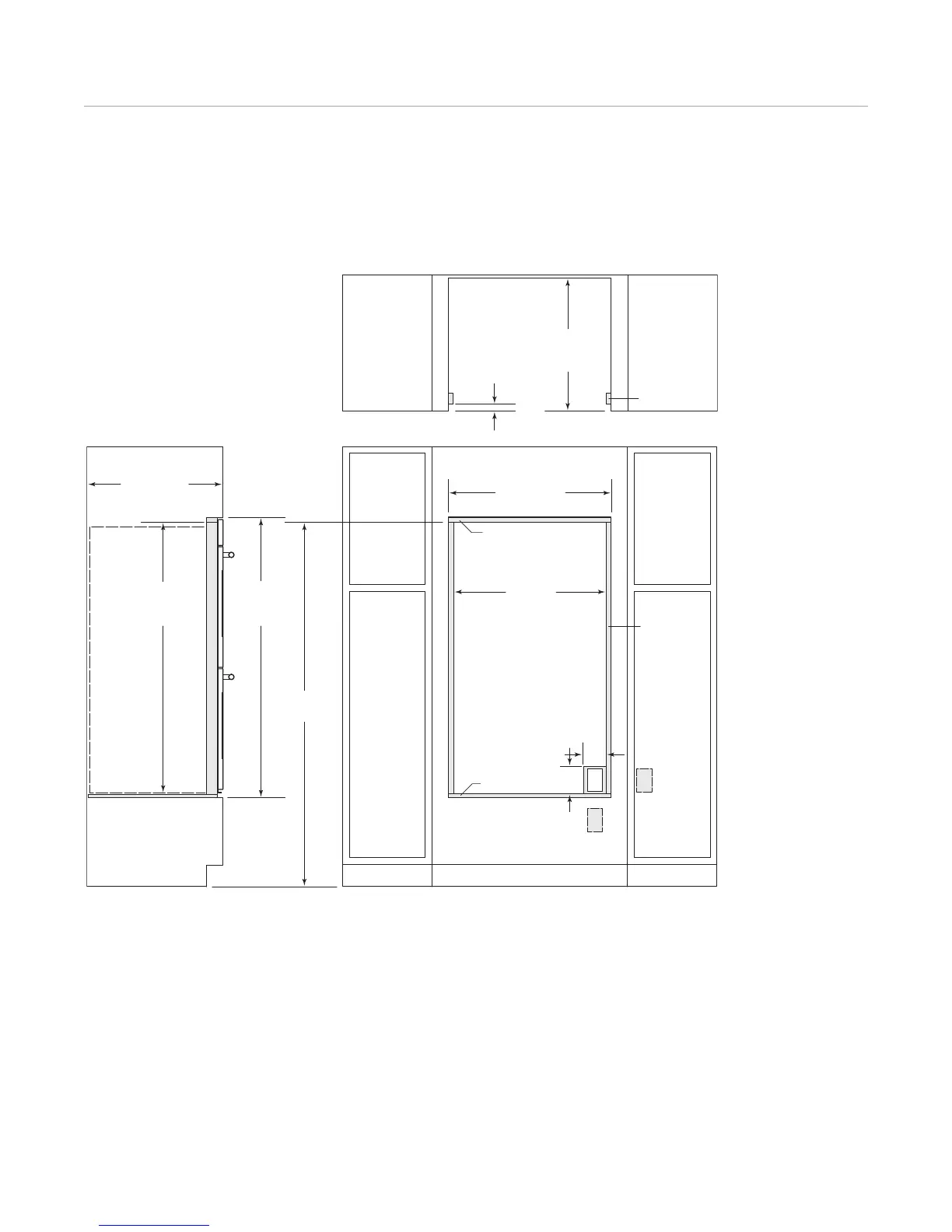

Wolf Built-In Ovens 8
1260 mm
O
PENING
HEIGHT
1294 mm min
FLUSH INSET
HEIGHT
724 mm
OPENING WIDTH
635 mm
min
C
ABINET DEPTH
772 mm min
FLUSH INSET WIDTH
22 mm T
OP CLEAT
11 mm
PLATFORM
S
IDE CLEATS
629 mm
min*
FLUSH INSET
DEPTH
25 mm
*For black glass model, increase dimension by 6 mm.
NOTE: Platform must support 181 kg.
Location of electrical supply within opening may require additional cabinet depth.
Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
25 mm
SIDE CLEATS
127
mm
102
mm
E
E
E
1702 mm
TYPICAL
762 mm E Series Double Oven
FLUSH INSET INSTALLATION
