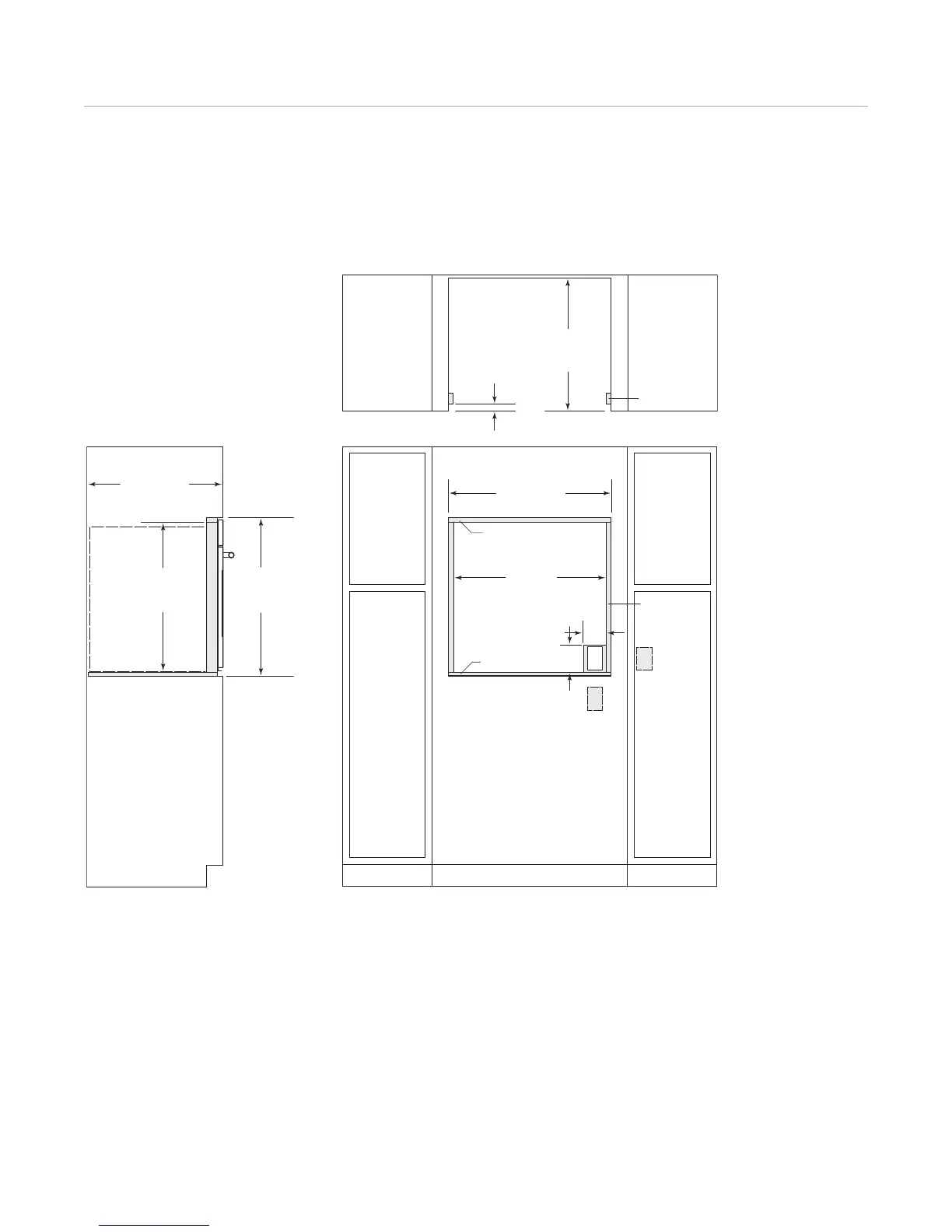

Wolf ICBDF304 - Page 7

Wolf Built-In Ovens 7
wolfappliance.com/specs
691 mm
OPENING
H
EIGHT
724 mm min
FLUSH INSET
HEIGHT
724 mm
O
PENING WIDTH
635 mm
min
C
ABINET DEPTH
772 mm min
FLUSH INSET WIDTH
22 mm TOP CLEAT
11 mm
PLATFORM
S
IDE CLEATS
629 mm
min*
FLUSH INSET
DEPTH
25 mm
*For black glass model, increase dimension by 6 mm.
NOTE: Platform must support 113 kg.
Location of electrical supply within opening may require additional cabinet depth.
Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
25 mm
SIDE CLEATS
127
mm
102
mm
E
E
E
762 mm E Series Single Oven
FLUSH INSET INSTALLATION
