Preparation
Prepare the finished opening for the rangetop according
to the dimensions shown in the installation illustration.
The platform must be a minimum of 19mm thick and
include a cutout at the right rear for the electrical and gas
supply connections. It must be level to ensure the cooking
surface is level. Refer to the chart below for the minimum
base support.
BASE SUPPORT MIN
762mm Rangetop 91 kg
914mm Rangetop 113 kg
1219mm Rangetop 136 kg
Placement
Use an appliance dolly to move the unit near the opening.
Remove and recycle packing materials.
If a riser is specified, refer to the installation instructions
packaged with the riser. The riser must be installed before
the rangetop is installed.
Place the unit into the opening. Connect the gas and elec-
trical supply. The connections may need to be made prior
to final placement.
For wok models, install the wok plate notch toward the
front of the unit. Refer to the illustration below.
NOTCH
Wok plate notch

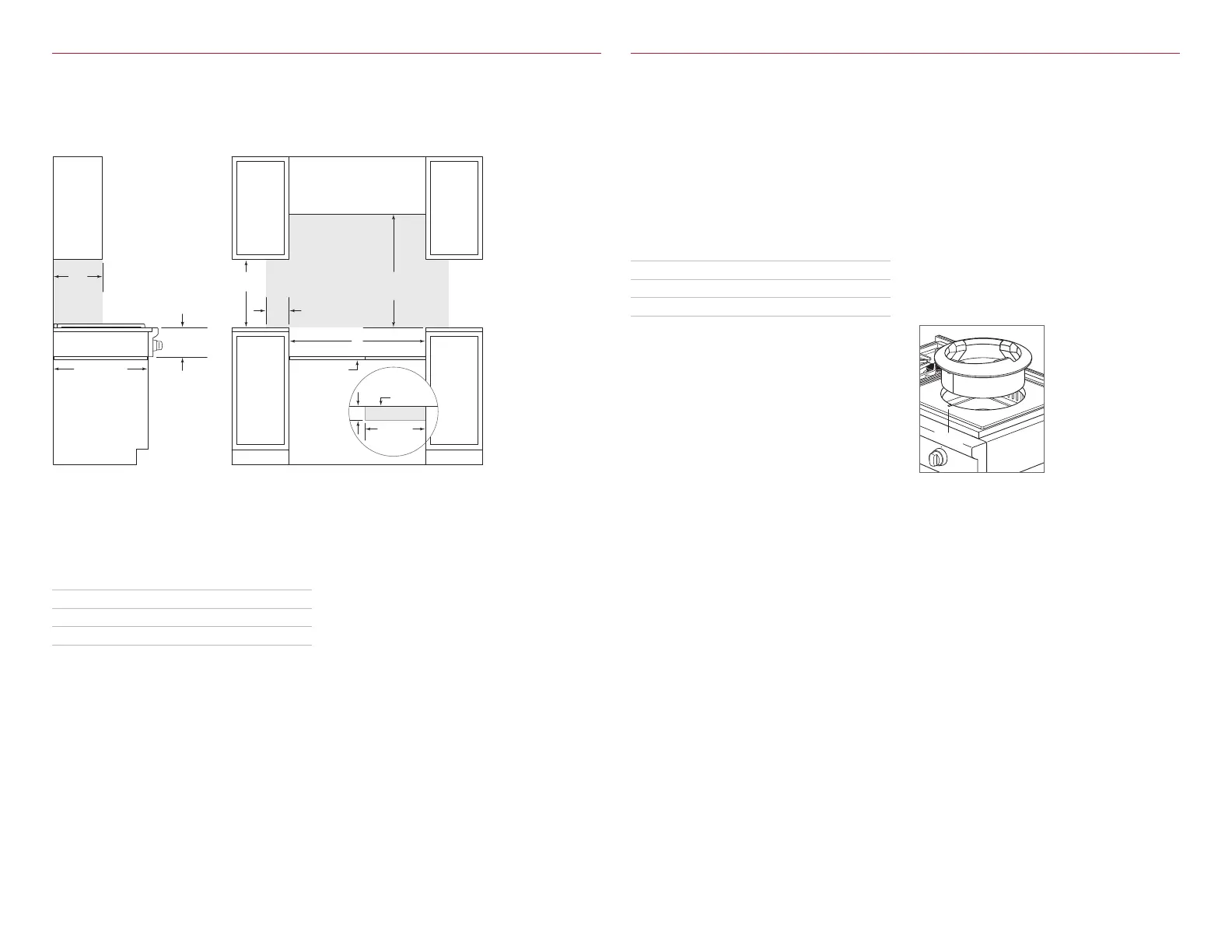

InstallationSpecifications
FRONT VIEW
SIDE VIE
W
*Without ventilation hood, 914 mm minimum clearance countertop to combustible materials, 1200mm for char-grill.
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
For models with Char grill the minimum clearance to combustible materials is 1200mm
Electrical and gas supply located through bottom of platform.
For island installation, 305 mm minimum clearance back of rangetop to combustible rear wall above countertop.
330
mm
457
mm
152
mm
W
OPENING WIDTH
610 mm
MAX
PLATFORM
650 mm TO 1200 mm
TO BOTTOM OF
VENTILATION HOOD*
191
mm
PLATFORM
PLATFORM
TOP VIEW
406 mm
ELECTRICAL
AND GAS
102
mm
E G
BACK WALL
Sealed Burner Rangetop
INSTALLATION
OPENING WIDTH W
762mm Rangetop 762mm
914mm Rangetop 914mm
1219mm Rangetop 1219mm
Australia Only
Note - A minimum of clearance of 1200mm is required from the Char Grill Burner to the
filter of the range-hood.
For models without Char-Grill the recommended minimum height from the pan support to the underside of the
Range-hood is 650mm unless the range-hood manufacturer specifies a height greater than 650mm
Apply the duplicate data label in the cabinet under the cooktop or on an adjacent cupboard door.
--------------
----------------
216
mm
