Induction Range (IR) Series
Induction Range (IR) Series
Component Removal
3-4
#827176 - Revision A.1 - December, 2016
Door Skin Removal
The door skin and handle are attached to the liner
assembly by two screws below the logo, three screws
on the bottom of the door, and four screws at the top of
the liner assembly.
To remove the door skin, first remove the door, then
(See Figure 3-4):
Place tape around the logo and use a putty knife to1
peal the logo from the front of the door.
Extract the screws behind the logo.2
Extract the screws from the bottom of the door.3
Extract the screws from the top of the liner assem-4
bly.
Lift the door skin from the liner assembly.5
Hinge Removal
The hinges are attached to the liner assembly by two
screws at the bottom of the liner assembly, and a tab
on the liner assembly at the top of the hinge.
To remove a hinge, first remove the door skin, then
(See Figure 3-5):
Extract the screws at bottom of the liner assembly. 1
Lift the bottom of the hinge up past the edge of the2
liner and disengage the hinge from the tab.
Remove the hinge from the liner assembly.3
Glass Pack Assembly Removal
The glass pack is inserted into the liner assembly and
has insulation and brackets around it to keep it in place.
To remove the glass pack assembly, first remove the
door skin, then (See Figure 3-6):
Extract screws from reinforcement bracket and1
remove the reinforcement bracket.
Extract the screws from the four glass pack retainer2
brackets, and remove them.
Extract the screws from the door baffle and remove3
the door baffle.
Remove the glass pack.4

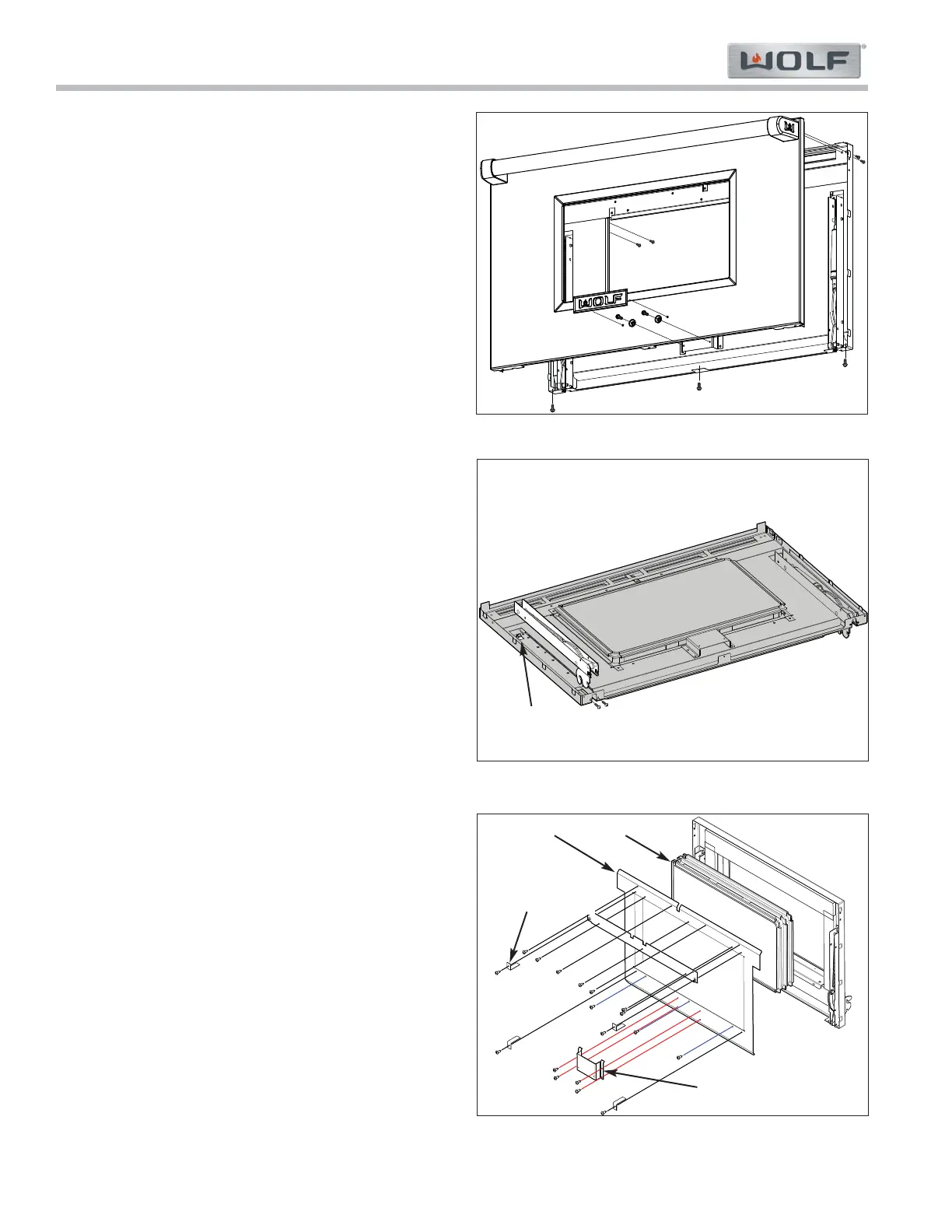

Figure 3-5. Hinge Removal
Tab for Hinge
Figure 3-6. Glass Pack Removal
Reinforcement
Bracket
Glass Pack
Retainer Brackets
Door Baffle
Glass Pack
Figure 3-4. Door Skin Removal
