30" (762) DOUBLE OVEN
Wolf recommends using 33" (838)
cabinets with the 30" (762) double
oven. Also, you need a minimum 24"
(610) of usable cabinet depth. The
bottom cabinet support must be able
to support 400 lbs (181 kg).
The Wolf 30" (762) double oven has
a face trim on all four sides and will
overlap stiles and rails. The trim
overlaps 3/16" (5) on the bottom,
5/16" (8) on the top and 3/4" (19)
on each side.
Electrical Requirements
The 30" (762) double oven requires a
separate, grounded 4-wire 240V, 50
amp service with its own circuit
breaker. It is provided with a 5'
(1.5 m) flexible 4-wire conduit for
connection at the electrical supply.
Locate electrical within the shaded
area shown in the illustration. The
electric rating is 8.9 Kw at 240V and
6.7 Kw at 208V with a minimum 50
amp service.
IMPORTANT NOTE: The electrical
supply must be flush with the back
wall to allow for proper installation.
The electrical supply can be placed in
an adjacent cabinet as long as it is
within reach of the 5' (1.5 m)
conduit, and a 2" (51) diameter hole
is provided. For a 24" (610) depth
cabinet application, electrical conduit
must be kept to the right (viewed
from front of cabinet) for a flush
installation.
You must follow all National Electrical
Code regulations. In addition, be
aware of local codes and ordinances
when installing your service.

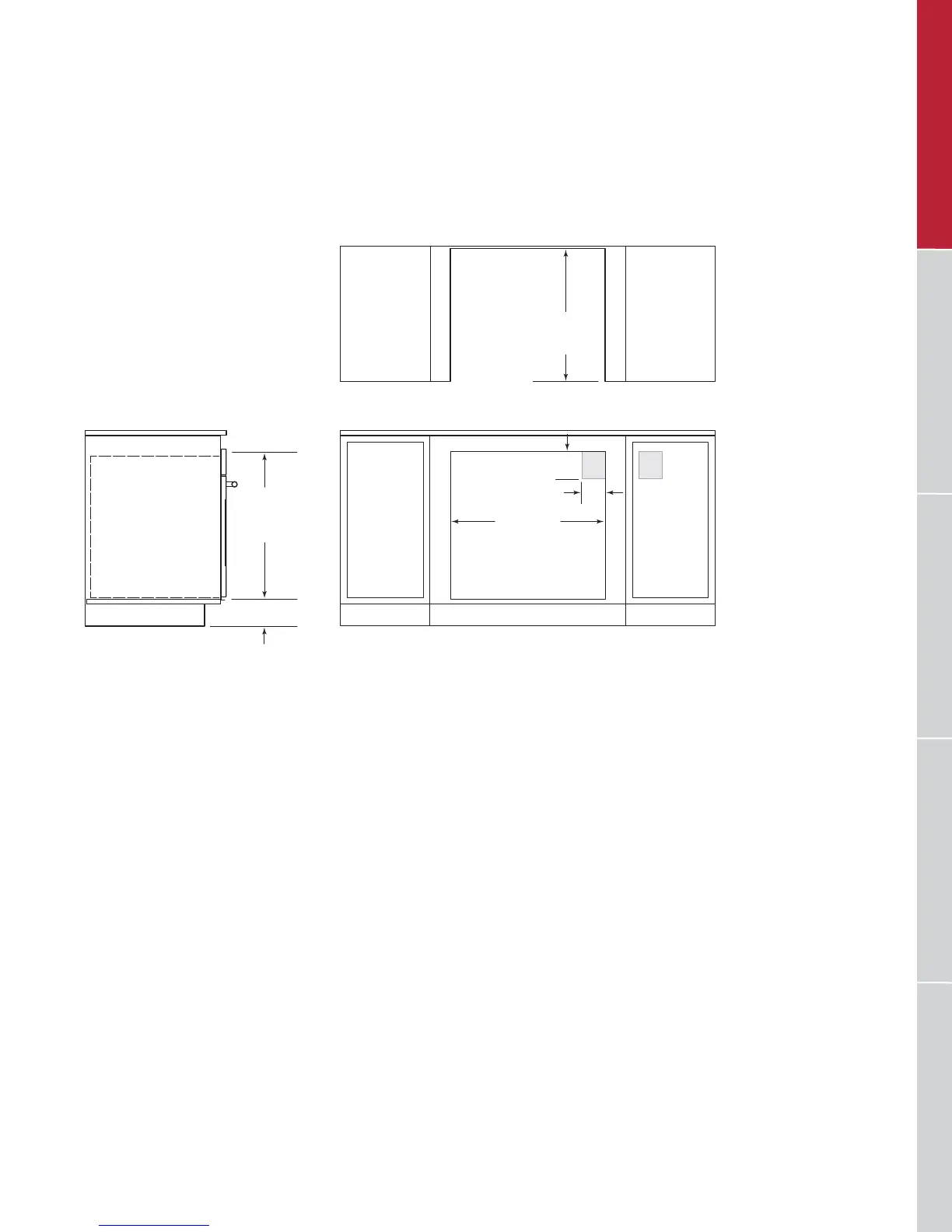

Rough opening dimensions and electrical placement for 30" (762) double oven.
