31

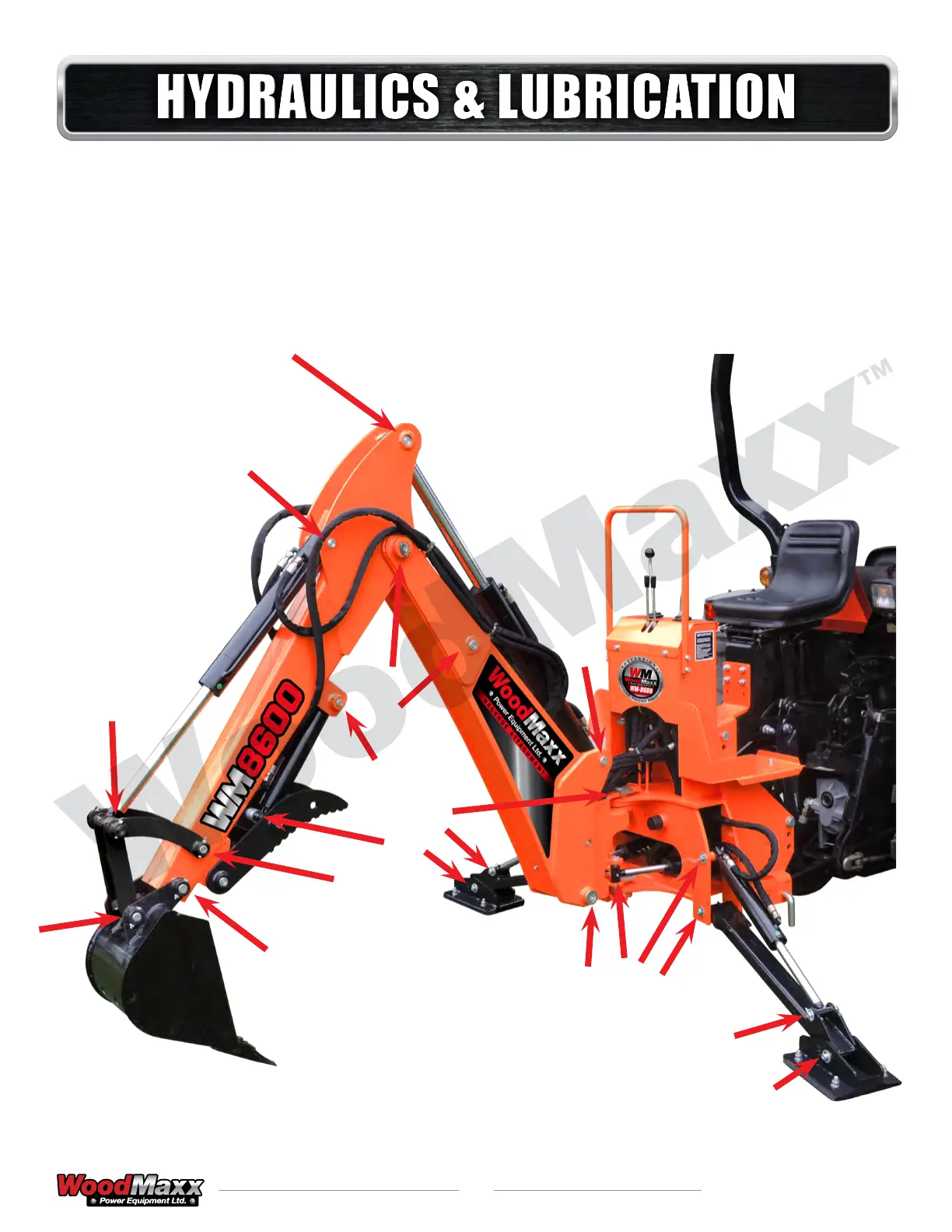

Some of the hinge points that need to be greased are shown in this diagram. Please
note that this diagram shows one side, and that there will be a corresponding grease
point on the other side of the backhoe. Some of the grease points are too small to be
featured on this diagram. You will need to grease all grease ttings on the machine.
HYDRAULICS & LUBRICATIONHYDRAULICS & LUBRICATION
