Operation 13
MAN1177
(
07/28/2023
)

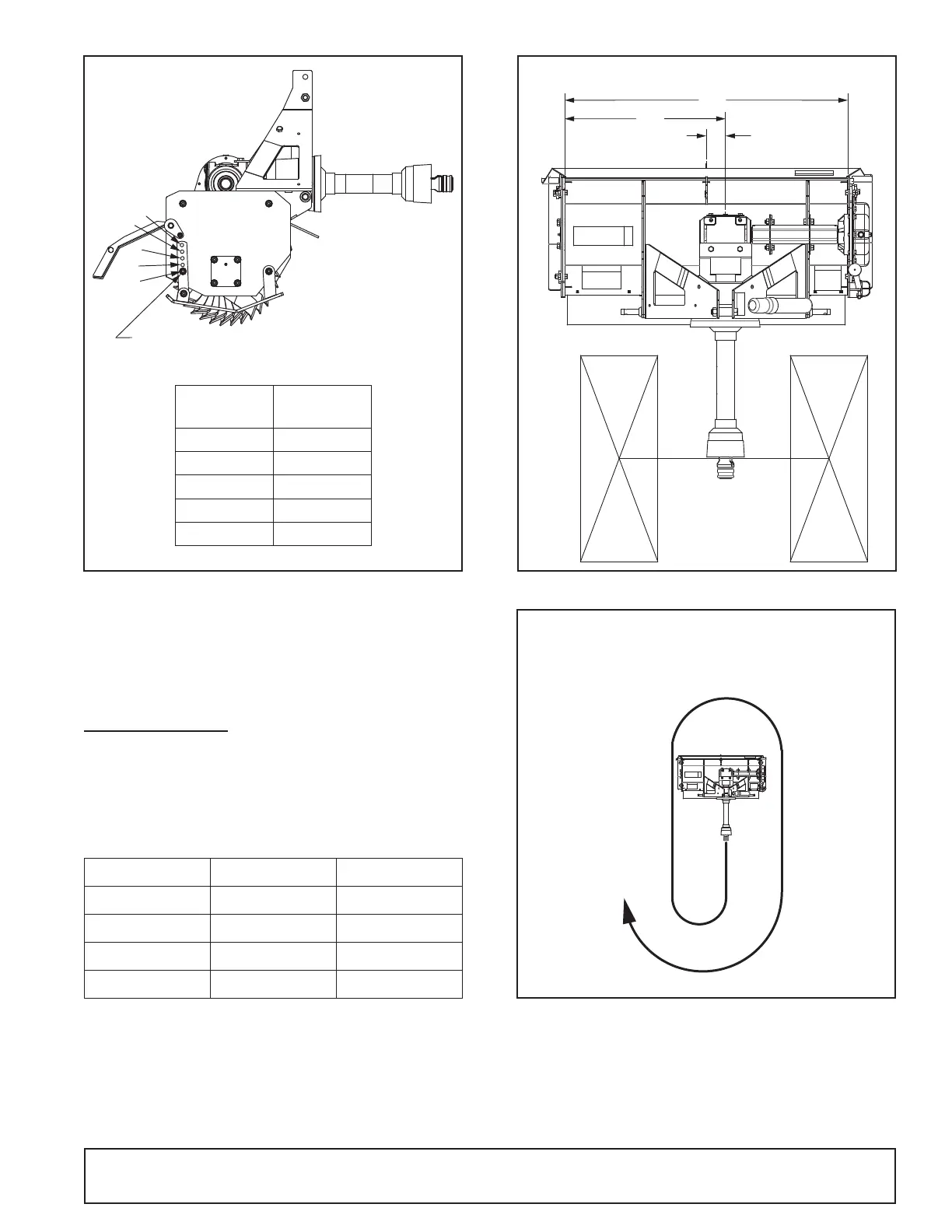

Figure 8. Tiller Depth Adjustment
NOTE: Tillage depth is dependent on ground hardness,
tractor speed, skid shoe setting, and tractor hitch ad-
justment. Multiple passes may be necessary to achieve
tillage depth.
TILLER OFFSET
The RT tillers come with a xed gearbox offset, so that
the tiller can cover a tractor tire width larger than its
width. The offset is to the right as sitting in the tractor
seat. By tilling in a clockwise rotation, tire tracks can be
reduced or eliminated. Below is a chart which outlines
the tractor width that can be paired with a tiller.
Figure 9. Tiller Offset Chart
Figure 10. Tiller Offset
Figure 11. Tilling Direction
Tiller Model Offset Covered Width
RT42.30 3" 48"
RT48.30 3" 54"
RT60.40 2.25" 64.5"
RT72.40 2.25" 76.5"
5
4
3
2
1
1/2NC FLANGE NUT
1/2NC CAP SCREW
CD8616
Hole
First Pass
Depth
1 0"
2 1"
3 2"
4 3"
5 4"
RT42.30 OFFSET
3"
OFFSET
24"
42"
CD8617
CD8617
TILLING DIRECTION TO COVER
TRACTOR TIRE TRACKS
