Woods RT60.40 - Page 35

Parts 35
MAN1177
(
07/28/2023
)

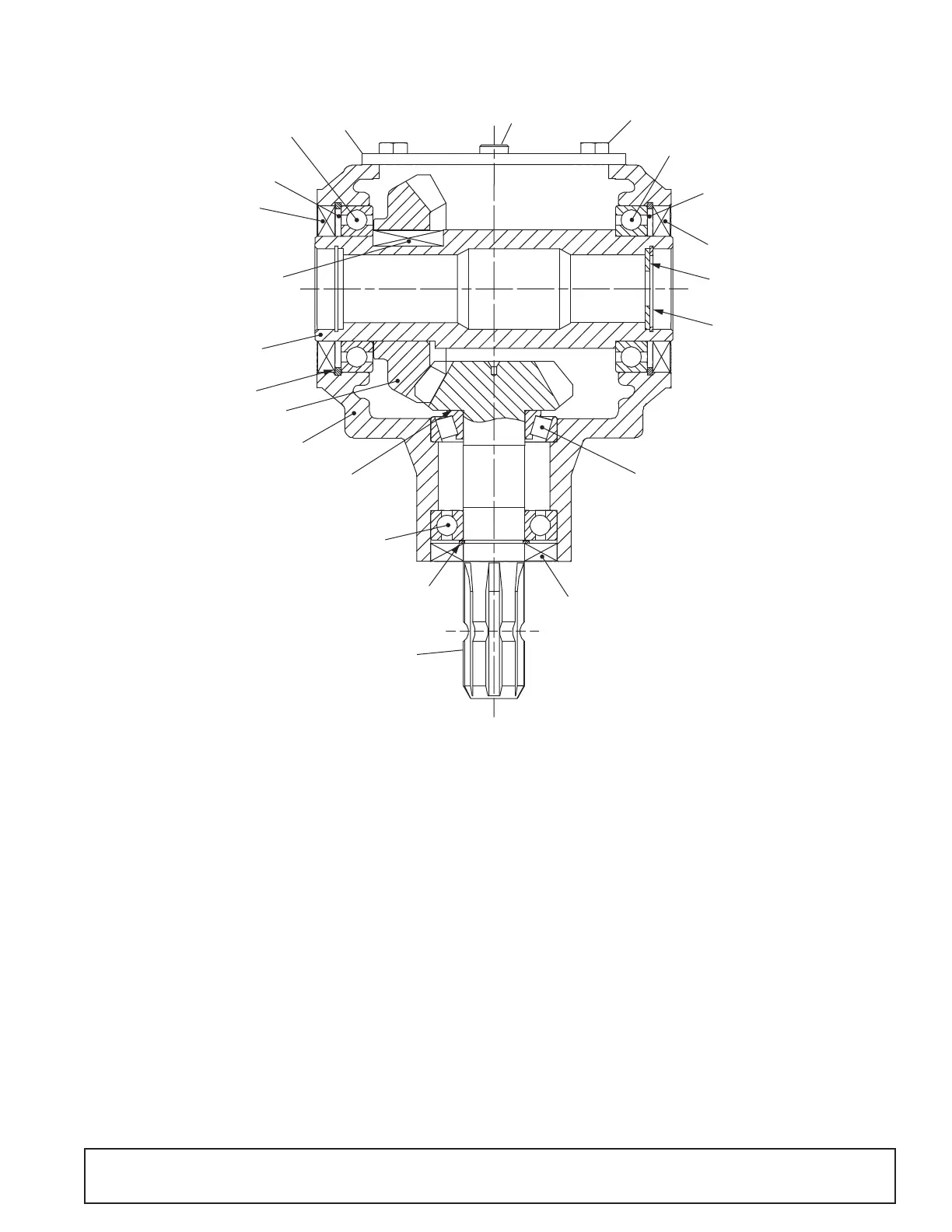

1042304 GEARBOX ASSEMBLY
1
2
3
4
5
5
6
7
8
8
9
10
10
12
14
15
23, 25
24
26
28
27
15
REF PART QTY DESCRIPTION
A 1042304 1
Gearbox assembly
1.46:1 1.50 hex
1 NSS 1 Gearbox housing
2 1043970 1 Cap
3 NSS 1 Input shaft & gear
4 NSS 1 Bevel gear
5 1032445 2 Ball bearing, 6012
6 438 1 Ball bearing, 6207
7 1032448 1 Tapered roller bearing, 30207
8 1032437 2 Oil seal, 60 x 95 x 10
9 1032401 1 Oil seal, 35 x 72 x 10
10 1032408 2 Snap ring, 95 x 3 mm
12 1007859 1 Snap ring, 35 x 1.5 mm
REF PART QTY DESCRIPTION
14 1043992 1 Key, 14 x 9 x 33 mm
15 1043976 A/R Shim kit, 85.3 x 94.7; 35.5 x 48
23 39325 1 3/8 vent plug
24 63716 4 M10-1.50P x 20 HHCS
25 27326 2 Plug, pipe 3/8 NPT
26 NSS 1 Output shaft
27 1043986 1 Snap ring, 1.5 x 45 mm internal
28 1044758 1 7/8 SAE at washer
HHCS Not Serviced Separately
NSS Socket Head Cap Screw
