14 Operation
MAN1249 (2/28/2018)

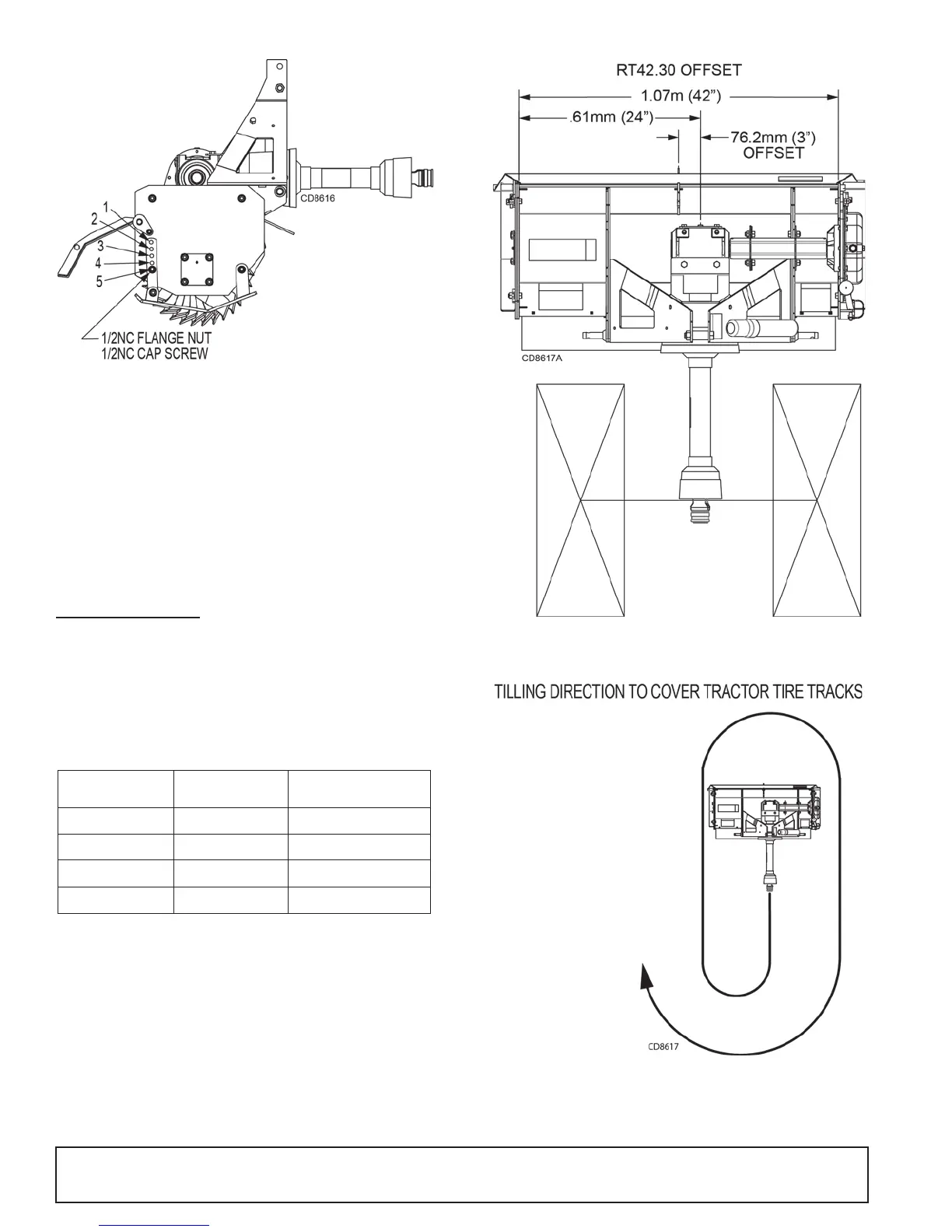

Figure 8. Tiller Depth Adjustment
NOTE: Tillage depth is dependent on ground hard-
ness, tractor speed, skid shoe setting, and tractor
hitch adjustment. Multiple passes may be neces-
sary to achieve tillage depth.
TILLER OFFSET
The RT tillers come with a fixed gearbox offset, so that
the tiller can cover a tractor width larger than its width.
The offset is to the right as sitting in the tractor seat. By
tilling in a clockwise rotation, tire tracks can be reduced
or eliminated. Below is a chart which outlines the trac-
tor width that can be paired with a tiller.
Figure 9. Tiller Offset Chart
Figure 10. Tiller Offset
Figure 11. Clockwise Direction
Hole
First Pass
Depth
1 0.0mm (0”)
2 25.4mm (1”)
3 50.8mm (2”)
4 76.2mm (3”)
5 101.6mm (4”)
Tiller Model Offset Tractor Width
RT42.30
76.2mm (3”) 1.22m (48”)
RT48.30
76.2mm (3”) 1.37m (54”)
RT60.40
58.4mm (2.25”) 1.64m (64.5”)
RT72.40
58.4mm (2.25”) 1.94m (76.5”)
