Worcester GB162 User Manual

PRODUCT OVERVIEW
6 720 648 720 (2011/07)
2
Product overview

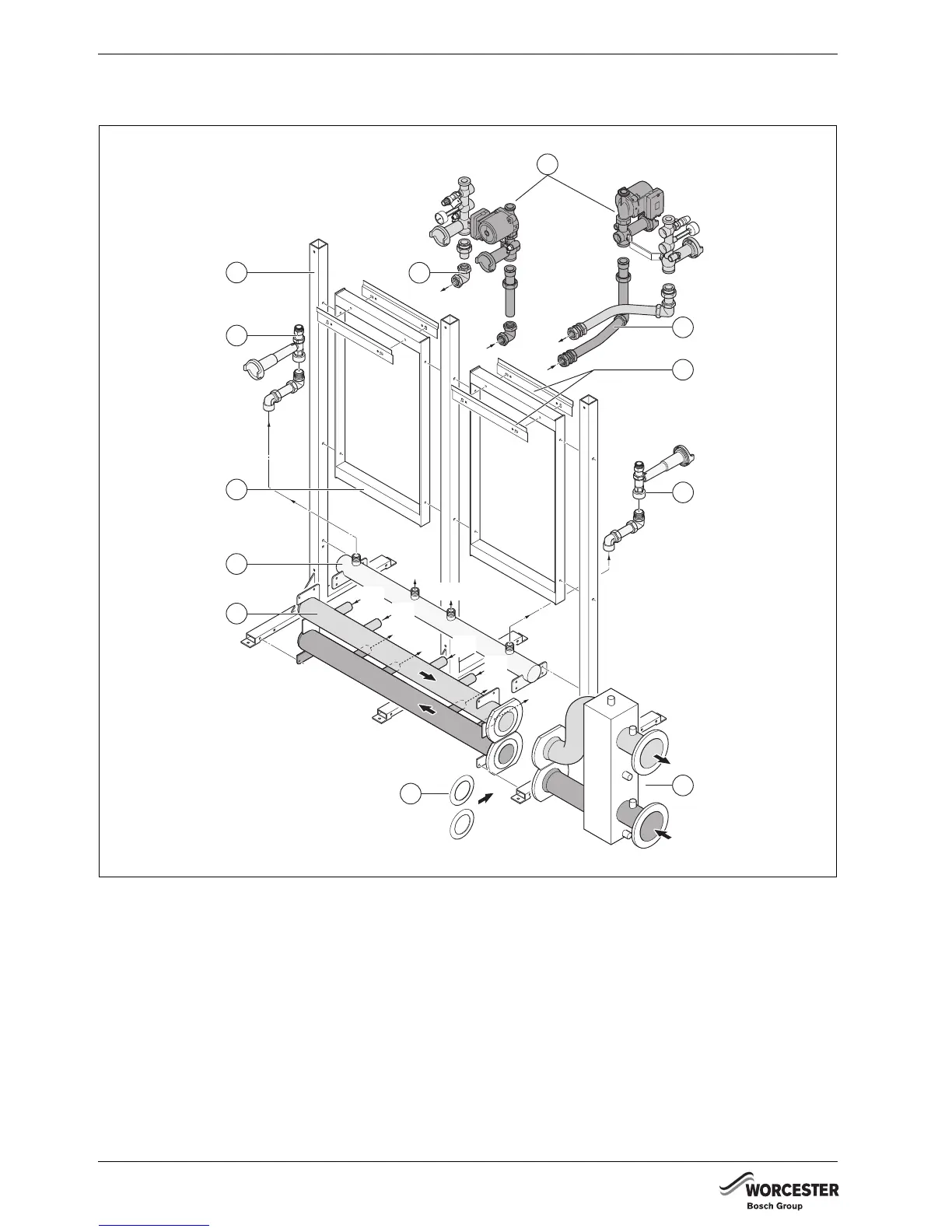

Fig. 1 Overview of cascade frame
1 Supports
2 Connecting frame
3 Main gas pipe
4 Flow and return header
5 Gas connection kit TL-inline
6 Mounting bracket
7 Boiler connection set TL-inline
8 Boiler connection set TR-back-to-back
9 Boiler assembly connection kit
10 Gas connection kit TR-back-to-back
11 Flange
12 Low loss header
B1
A1
A1
B1
C2
C1
C1
A1
A2
B1
B2
B2
A2
C2
A2
B2
1
5
2
3
4
8
6
10
12
11
9
7
7214 6000-001.1TD

Worcester GB162 Specifications

General

Fuel type	Natural Gas or LPG
Installation type	Wall-mounted
Boiler type	Condensing
Warranty	2 years
Efficiency	Up to 94%
Modulation ratio	5:1
Max. central heating output	100kW
Weight	70 kg
