Worcester GB162 User Manual

DIMENSIONS
6 720 648 720 (2011/07)
9

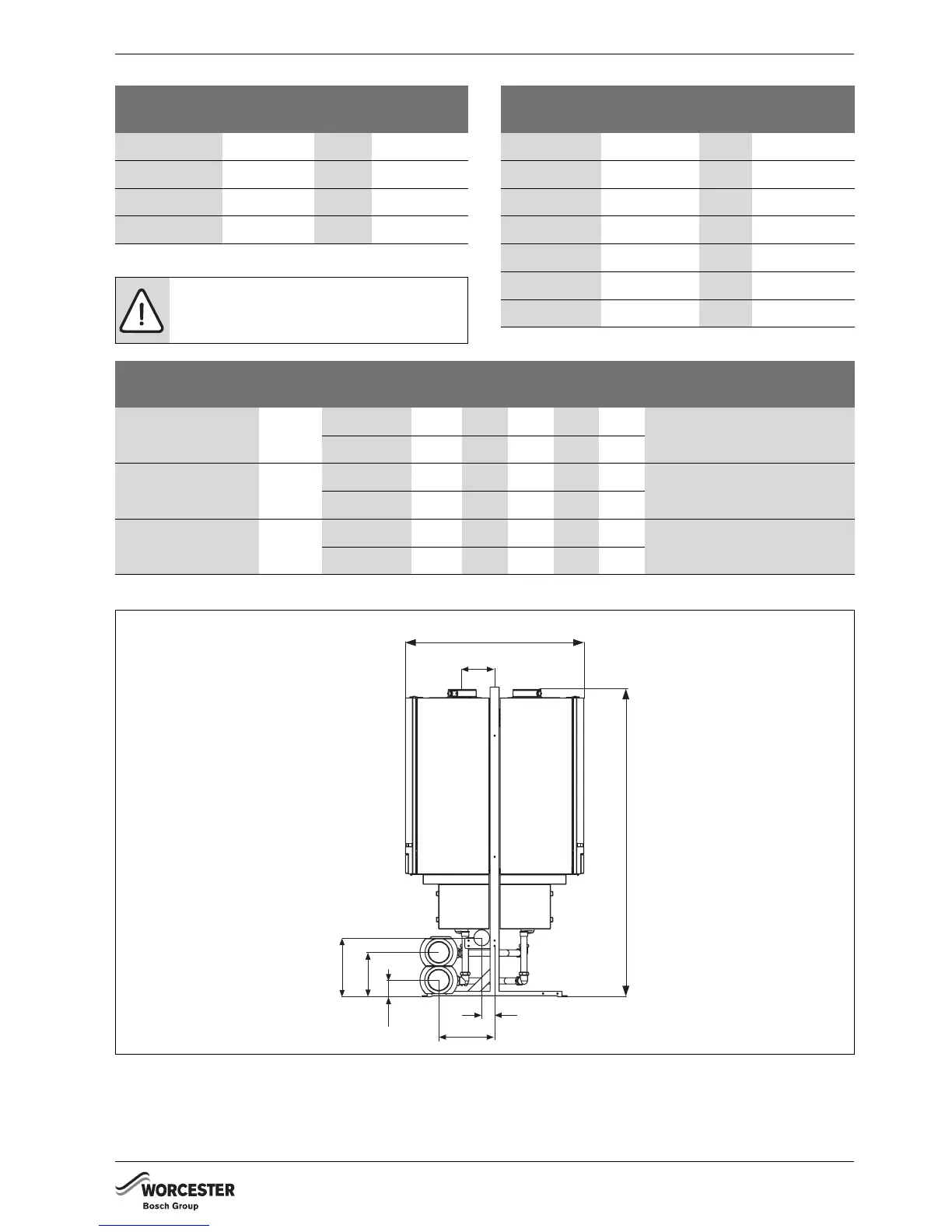

Fig. 6 Dimensions of cascade systems 2
Cascade
system
Length [mm]
X1 + Y1 Width [mm]
TR2 575 + 38 = 613 992
TR3, TR4 1100 + 42 = 1142 992
TR5, TR6 1625 + 45 = 1670 992
TL7, TR8 2150 + 45 = 2195 992
Table 3 TR-back-to-back configurations
CAUTION:
B The dimensional tolerance is ± 5%.
Cascade
System
Length [mm]
X1 + Y1 Width [mm]
TL2 1100 + 38 = 1138 575
TL3 1625 + 38 = 1663 575
TL4 2150 + 42 = 2192 575
TL5 2675 + 45 = 2720 575
TL6 3200 + 45 = 3245 575
TL7 3725 + 45 = 3770 575
TL8 4250 + 45 = 4295 575
Table 4 TL-inline configurations
Cascade system Header [inch]
Length
[mm]
B1
[mm]
B2
[mm]
B3
[mm]
L1
[mm]
F1
[flange dimension in mm]
TL2, TL3, TR2 2½ " straight 488 – – – 488 Blank flange C2631 37.2 NW
65/76.1 PN6
right-angled 213 213 621 133 –
TL4, TR3, TR4 3" straight 571 – – – 571 Blank flange C2631 37.2 NW
80/88.9 PN6
right-angled 252 252 728 157 –
TL5, TL6, TL7, TL8,
TR5, TR6, TR7, TR8
4" straight 651 – – – 651 Blank flange C2631 37.2 NW
100/114.3 PN6
right-angled 313 313 849 198 –
Table 5 Header dimensions
180
992
1710
328
247
92
71
310
7214 6000-006.1TD

Worcester GB162 Specifications

General

Fuel type	Natural Gas or LPG
Installation type	Wall-mounted
Boiler type	Condensing
Warranty	2 years
Efficiency	Up to 94%
Modulation ratio	5:1
Max. central heating output	100kW
Weight	70 kg
