Workhorse ATV 1502 - GENERAL ASSEMBLY Instruction #1; General Assembly Steps

Instruction #1— GENERAL ASSEMBLY
PRECISION SPRAY EQUIPMENT, a divison of Green Leaf, Inc. 9490 N BALDWIN ST FONTANET, IN 47851 www.grnleafinc.com 800-654-9808
a division of Green Leaf, Inc ®
PRECISION SPRAY EQUIPMENT
PSE
®
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
25 Gallon Tank600132
11
Tank Lid600133
1
2
Tank Lid Tether600134
1
3
ATV Boom Mount
6001892
4
ATV Helix Lever
60019025
5/16-18 Flat Head Screws600188
46
Spray Wand Clip
60015127
#10-24 x 3/8" Screw
60015228
Drain Cap Assembly
60029819
Deluxe Wand and 15ft Hose
600156110
Lead Wire Assy. w/ Switch (96")
600153111
15 Gallon Tank
600239112
Assembly Instructions

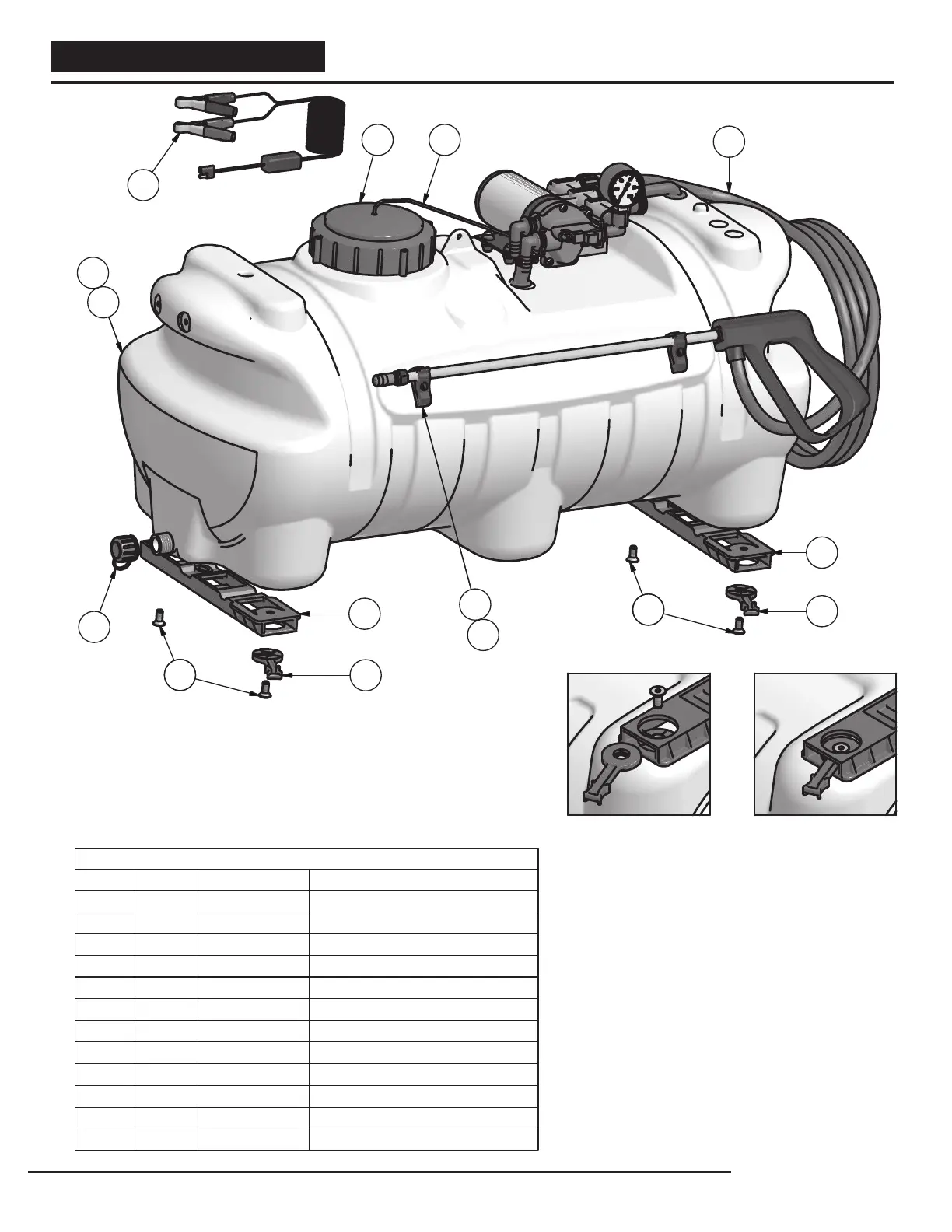

1.0--Install ATV Boom Mounts & ATV Helix Levers
in two places on bottom of tank as illustrated
using 5/16" Flat Head Screws. Note the
the orientation of all parts as their orientation
is essentail for proper assembly.
1.1--Install Drain Cap Assembly
1.2--Insert Lead Wire Assembly into plug at rear
of the pump.
1.3--Join the red wire of the two wire cabel to a +12v
source such as a switch, ammeter, or positive
battery post. The black wire should be grounded
or connected to the negative battery post
66
4
5
66
4
5
10
7
8
11
1
2 3
9
12
