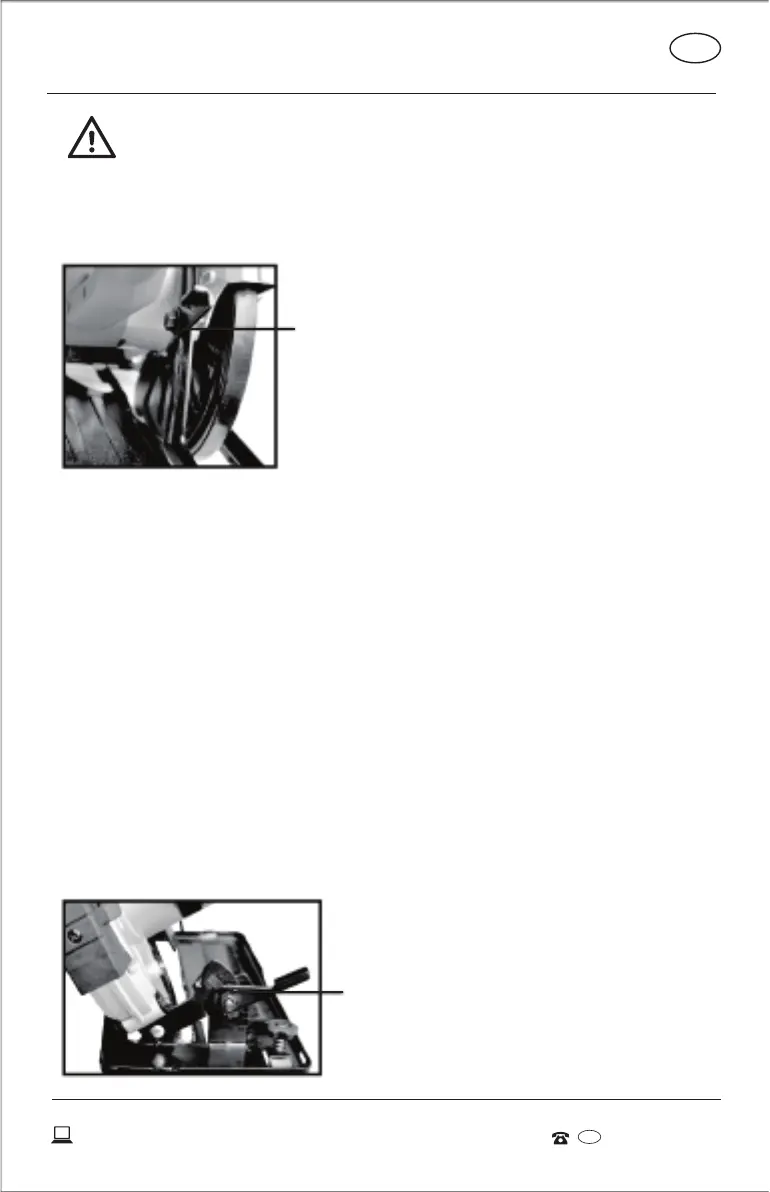

13Amp 7-1/4in. Circular Saw
WARNING
Check carefully that there are no cracks or other damage to
the saw blade.
Replace any cracked blades immediately.
CHANGING THE BLADE CAUTION
• Place saw on its side on a at surface
• Rotate the saw blade by hand whilst depressing spindle lock button until
the blade locks
• Whilst depressing spindle lock button,turn the blade bolt anti-clockwise
using wrench
• Remove the outer blade ange and the blade bolt
• Raise the lower blade guard(3) using lever
• Remove the saw blade from the inner ange and pull out the blade
CAUTION. Always ensure that the saw is switched off and unplugged
from the power supply before making any adjustments.
• Loosen lever
• Lift the body of the saw until the blade is at the right depth - as shown
on depth adjustment scale
• Tighten lever
NOTE
Always use the correct blade depth setting. The correct blade depth
setting for all cuts should not be more than 6.35mm (1/4”) below the
material being cut. Allowing more depth will increase the chance
of kickback and result in a rough cut.
ADJUSTING THE BEVEL ANGLE
Loosen knob and tilt the body of the saw until the required angle is
reached using scale as a guide.
Tighten knob NOTE. Always make a trial cut in a scrap piece of material
along a guideline to check the position of the blade relative to the guide-
line and the angle of cut.
Depth adjust
Angle lock knob
