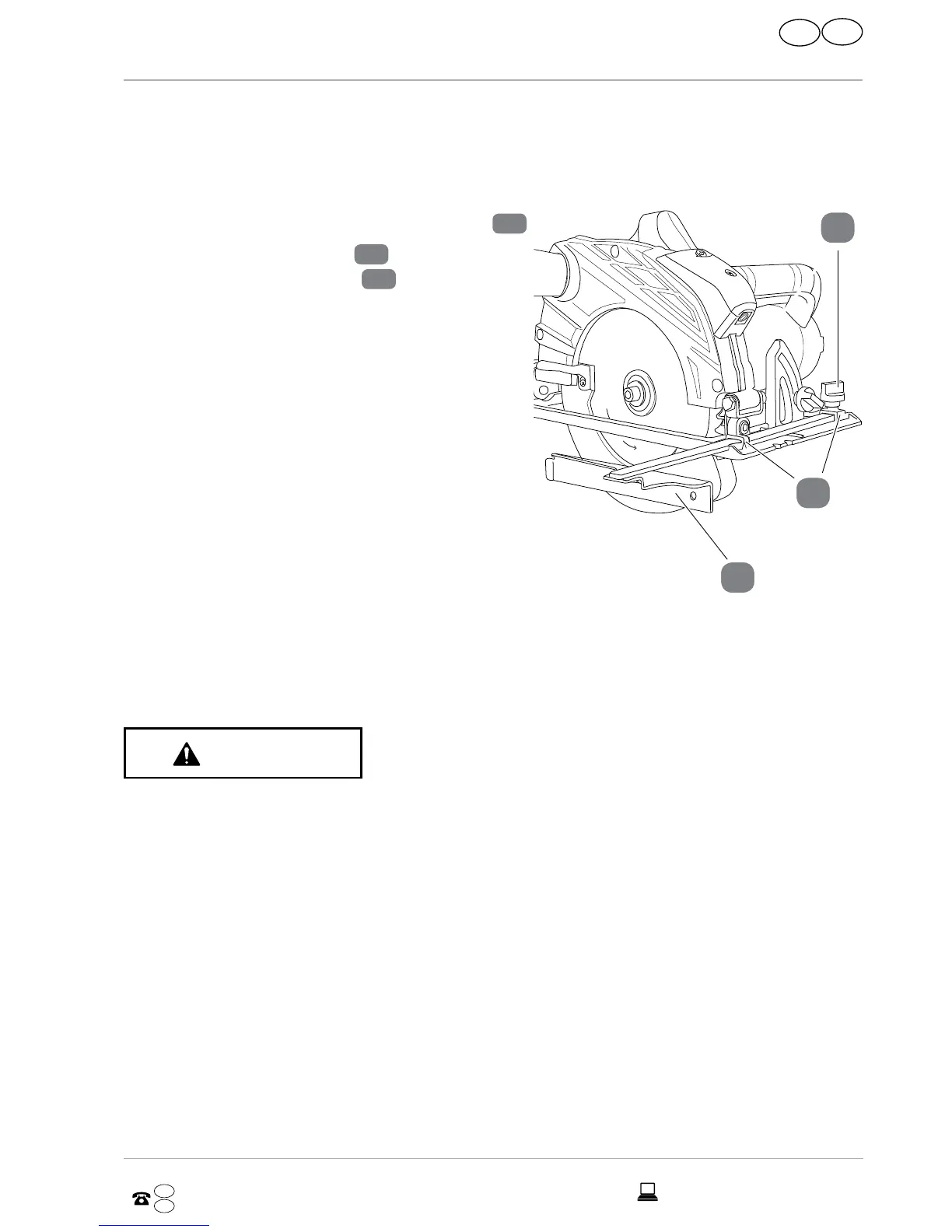

Fitting and removing the parallel fence
The parallel fence is used to saw in a straight line parallel to the edge of the
workpiece.
To fit the parallel fence, proceed as follows:
1. Loosen the parallel fence locking knob
7
.
2. Slide the parallel fence
9
through the
parallel fence openings
8
.
3. Set the desired cutting width on the scale
of the parallel fence and then tighten the
locking knob.
To remove the parallel fence, proceed
as follows:
1. Loosen the parallel fence locking knob.
2. Pull the parallel fence off the saw.
Connecting the dust extraction
adapter
An adaptor is required to connect a vacuum cleaner or dust extrac-
tor to the saw.
CAUTION!
Risk of poisoning!
Dust which is harmful to health can be produced when using the
saw and cause poisoning. Certain dust, such as from oak or beech
wood, is considered as carcinogenic, especially in conjunction with
additives for wood treatment (chromate, wood preservative). Only
specialists may work with materials containing asbestos.
− Always wear a dust mask (filter class P2) and connect the saw
to a dust extraction device.
− Make sure your workplace is well-ventilated.
− Use a special dust extraction device when working with
particularly hazardous material.
7
8
9
