This document serves as a user manual for the WORKZONE HCE2400 High Pressure Washer, a product distributed by ALDI Stores. It provides comprehensive information on the device's function, technical specifications, usage, and maintenance.

Function Description

The WORKZONE HCE2400 High Pressure Washer is designed for cleaning vehicles, machines, buildings, facades, and similar items in private, domestic use. It operates by generating a high-pressure water jet to remove dirt and grime effectively. The device is intended for its prescribed purpose, and any other use is considered misuse, for which the user/operator bears responsibility for any resulting damage or injuries. It is not designed for commercial, trade, or industrial applications, and its warranty will be voided if used in such settings. The high pressure washer is not suitable for connecting to the drinking water network. It can be used with cold or lukewarm water (max. 50 °C).

Important Technical Specifications

Mains connection: 230-240 V~ / 50 Hz
Power consumption: 2400 W
Mains cable length: approx. 5 m
Safety class: II
Degree of protection: IPX5
Rated/operating pressure: 12 MPa
Max. permissible pressure: 18 MPa / 2600 PSI
Max. inflow pressure: 0.4 MPa
Inflow temperature: 5-50 °C
Working flow rate, water: 5.5 l/min
Max. working flow rate, water: 6.8 l/min
Weight approx.: 8.6 kg
Cleaning agent container capacity: 1 L
Noise and Vibration:
- Sound pressure level (LPA): 78 dB(A)
- Uncertainty KDA: 3 dB(A)
- Sound power level (LWA): 94 dB(A)
- Vibration (ah): < 2.5 m/s²

Usage Features

The high pressure washer comes with several components for versatile use:

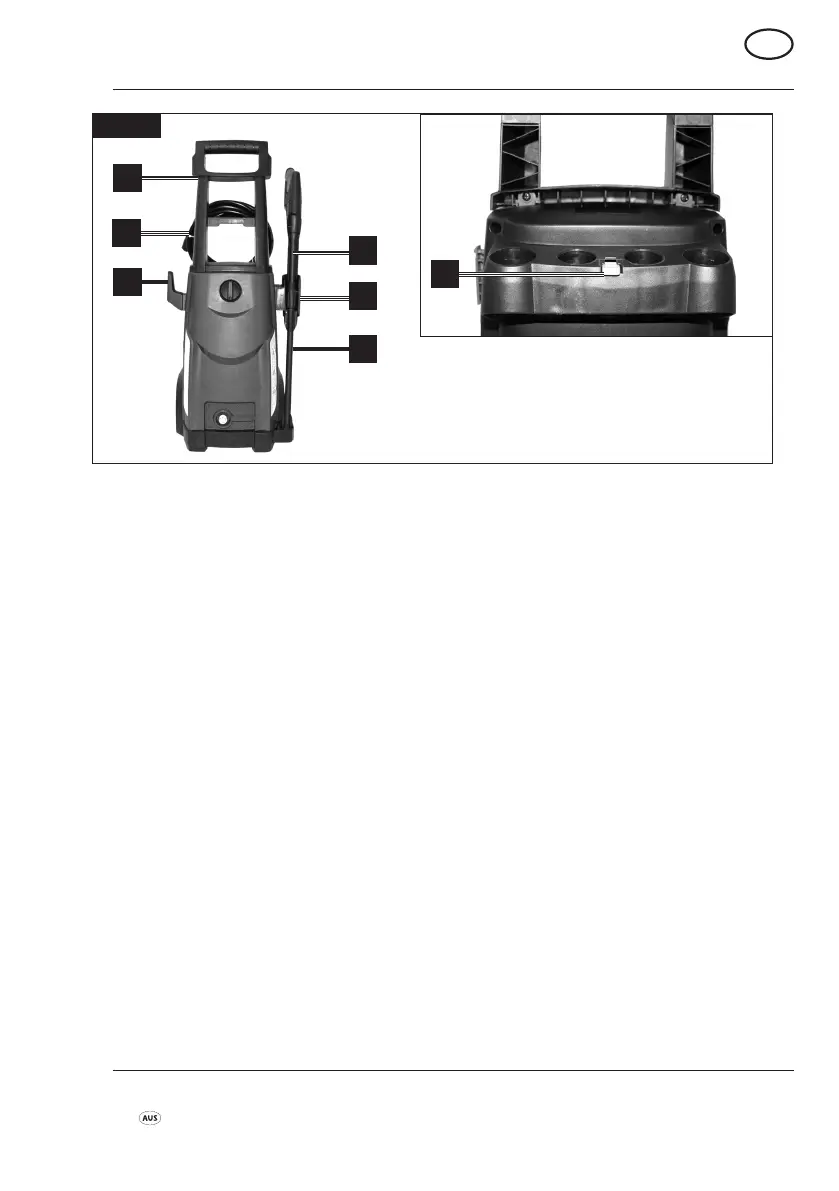

Handle with holder for high pressure hose (1): Provides a secure grip and storage for the high-pressure hose.
High pressure hose (2): Connects the washer to the gun, delivering high-pressure water.
Holder for mains cable (3): Keeps the power cable organized.
On/off switch (4): Controls the power to the unit.
Connection for high pressure hose (5): Point for attaching the high-pressure hose to the washer.
Lance holder (6): Stores the lance and extension when not in use.
Accessories holder (7): For additional accessories.
Cleaning agent container (8): Allows for the use of cleaning agents.
Transport wheel (9): Facilitates easy movement of the washer.
Water inlet connection (10): Where the water supply hose is connected.
Nozzle cleaning needle (11): Used to clear blockages in the nozzle.
Quick connector (12): For quick attachment of the water supply hose.
Extension (13): Extends the reach of the gun.
Gun (14): The primary operating tool for directing the water jet.
Variable nozzle (15): Allows adjustment of the water jet from a flat wide jet to a narrower, more intense jet.
Screws (16): For assembly of certain parts.

Assembly and Operation:

Mounting the quick connector: Remove the black cap from the back of the washer and attach the quick connector (12) to the water inlet connection (10).
Mounting the handle: Push the handle with holder (1) onto the fastening points at the top and secure with screws (16).
Mounting holders: Attach the holder for mains cable (3) and lance holder (6) to the side fastening points.
Mounting high pressure hose: Remove the black cap from connection (5) and connect the high pressure hose (2) to it.
Mounting hose and gun: Plug the high pressure hose (2) into the gun (14). To remove, push lever (D) and pull out the hose.
Mounting extension with variable nozzle: Plug the extension (13) with the variable nozzle (15) into the gun (14) and twist. To remove, press button (A) and pull out the nozzle.
Before operation: Ensure the power supply is connected via a residual current device (RCD) or earth tester. Verify rating plate data matches mains data. Always pull the power plug before making adjustments. The washer must be on a level, stable surface. Use with one hand on the gun and the other on the lance. Operating temperature should be between +5 and +50 °C. Do not use dirty water or water containing chemicals.
Operation: Turn on the water tap fully. Switch on the high pressure washer (4). The motor will build pressure and then switch off. Press the security switch (C) to unlock the gun starting lever (A). The nozzle operates by pressure, and the motor switches back on. Releasing the lever (A) switches off the washer, but the system remains pressurized. After use, press (C) to lock the lever.
Adjusting variable nozzle: Turn the tip of the variable nozzle (15) left to reduce jet width, and right to expand it.
Using cleaning agent container: Remove the black cap from container (8) and fill with suitable cleaning agent. Remove the variable nozzle (15) from the extension (13) for automatic cleaning agent addition. Remove the container if not mixing cleaning agent with water.

Maintenance Features

The high pressure washer is designed to be maintenance-free, but regular cleaning is recommended after each use.

Cleaning: Always pull out the power plug before any maintenance. Never direct the water jet at the washer itself or clean it under flowing water to avoid electric shock and damage. Keep the washer clean, especially ventilation slots, using a soft brush or moist cloth.
Nozzle cleaning: If the variable nozzle (15) is soiled or blocked, use the nozzle cleaning needle (11) to remove foreign bodies.

Storage:

Clean the high pressure washer.
Drain all water from the unit.
Disconnect from water supply.
Store the gun (14) and extension (13) in the lance holder (6).
Hook the mains cable onto the holder (3).
Store the high pressure hose (2) at the backside of the handle with holder (1).
Protect the washer and accessories from frost by ensuring all water is drained.
Protect from dust.
Store in a frost-free room, out of reach of children.

Safety Regulations:

Read the operating instructions thoroughly to reduce injury risk.
Wear safety goggles and ear-muffs to prevent hearing damage.
Do not connect to drinking water networks.
High-pressure jets are dangerous if misused; do not direct at persons, animals, live electrical equipment, or the washer itself.
Switch off and disconnect from power supply before installation, cleaning, alterations, maintenance, storage, and transport.
Class II symbol indicates dual insulation; no earthed power socket connection needed.
Use only original spare parts and accessories recommended by the manufacturer.
Do not operate with damaged supply cord, safety devices, high-pressure hoses, or trigger gun.
Not for use by children or persons with reduced physical, sensory, or mental capabilities, or lack of experience/knowledge.
Water that has flowed through a backflow preventer is non-potable.
Electrical installation must comply with national wiring rules.
Connect to a mains socket via an RCD with a rated leakage current not exceeding 30 mA. Fuse: at least 13 ampere.
Check washer, cable, and plug for damage before each use.
Do not pull the plug by the cable. Protect the cable from heat, oil, sharp edges.
Do not carry or fix the washer by the cable.
Use outdoor-rated extension cables, fully unrolled.
Wear sturdy footwear to protect against electric shock.
Operate in an upright position.
Do not spray flammable liquids.
If cleaning agent contacts skin or eyes, rinse immediately and consult a doctor.
Do not operate with a closed water tap; dry running will damage the washer.
Be prepared for recoil force of the water jet; stand firmly and hold the gun securely.
Keep children and bystanders away.
Never modify or remove safety features.
Do not operate with missing, broken, or unauthorized parts.
Never leave wand unattended while running.
Keep work area free of obstacles.
Stand on a stable surface and grip the gun/lance firmly.
Do not use flammable or explosive liquids.
Locate the washer on a solid, level surface to prevent tipping.
Do not use within range of persons unless they wear protective clothing.
Do not direct the jet against yourself or others to clean clothes or footwear.
Inadequate extension cords can be dangerous; use outdoor-rated cords, kept dry and off the ground (recommended 60mm above ground if using a cord reel).
Ensure exhaust emissions are not near air intakes.
Always switch off the mains disconnecting switch when leaving the washer unattended.

Warranty Details:

The product is guaranteed to be free from defects in workmanship and parts for 36 months from the date of purchase. Defects under normal use and care will be repaired, replaced, or refunded at ALDI's discretion. This warranty is in addition to consumer rights under Australian Consumer Law.
