Workzone SD1600V User Manual

Technical data
SD1600V

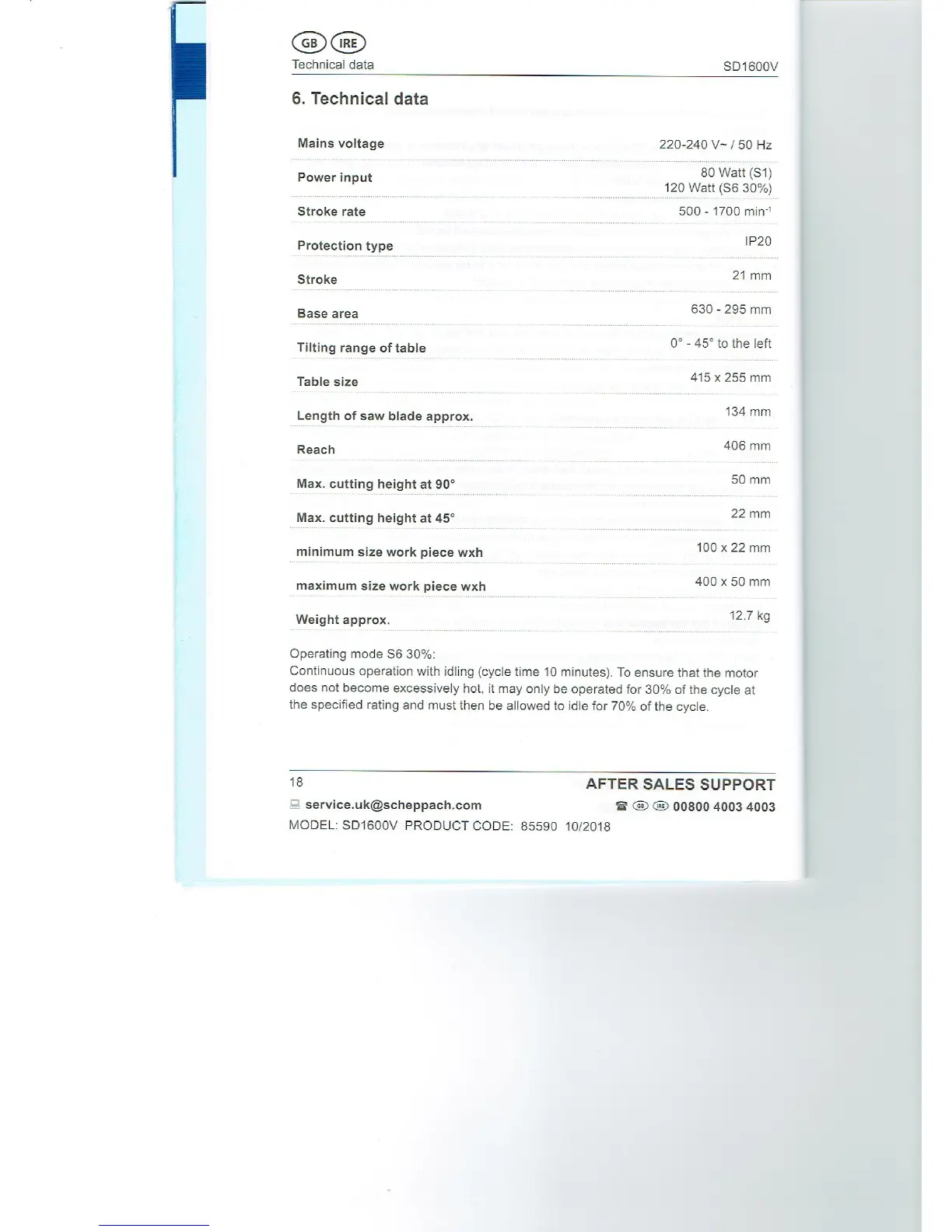

6. Technical data
Mains
voltage
Power
input
Stroke rate
Protection
type
Stroke
Base area
Tilting
range
of table
Table size
Length
of saw
blade
approx.
Reach
Max.
cutting height
at 90°
Max.
cutting height
at 45°
minimum
size work
piece
wxh
maximum size
work
piece
wxh
Weight approx.
Operating
mode S6 30%:
220-240 V~ / 50 Hz
80 Watt
(S1)
120 Watt
(S6 30%)
500
-
1700 min”
IP20
21mm
630
-
295 mm
0°
-
45° to theleft
415
x
255 mm
134 mm
406 mm
50 mm
22mm
100 x 22 mm
400 x 50 mm
12.7
kg
Continuous
operation
with
idling (cycle
time 10
minutes).
To ensure that
the motor
does not
become
excessively
hot,
it
may
only
be
operated
for 30% of the
cycle
at
the
specified
rating
and must then be allowed
to idle
for 70% of the
cycle.
18
AFTER
SALES SUPPORT
=
service.uk@scheppach.com
MODEL:
SD1600V
PRODUCT CODE:
85590
10/2018
@ @
@
00800 4003
4003
