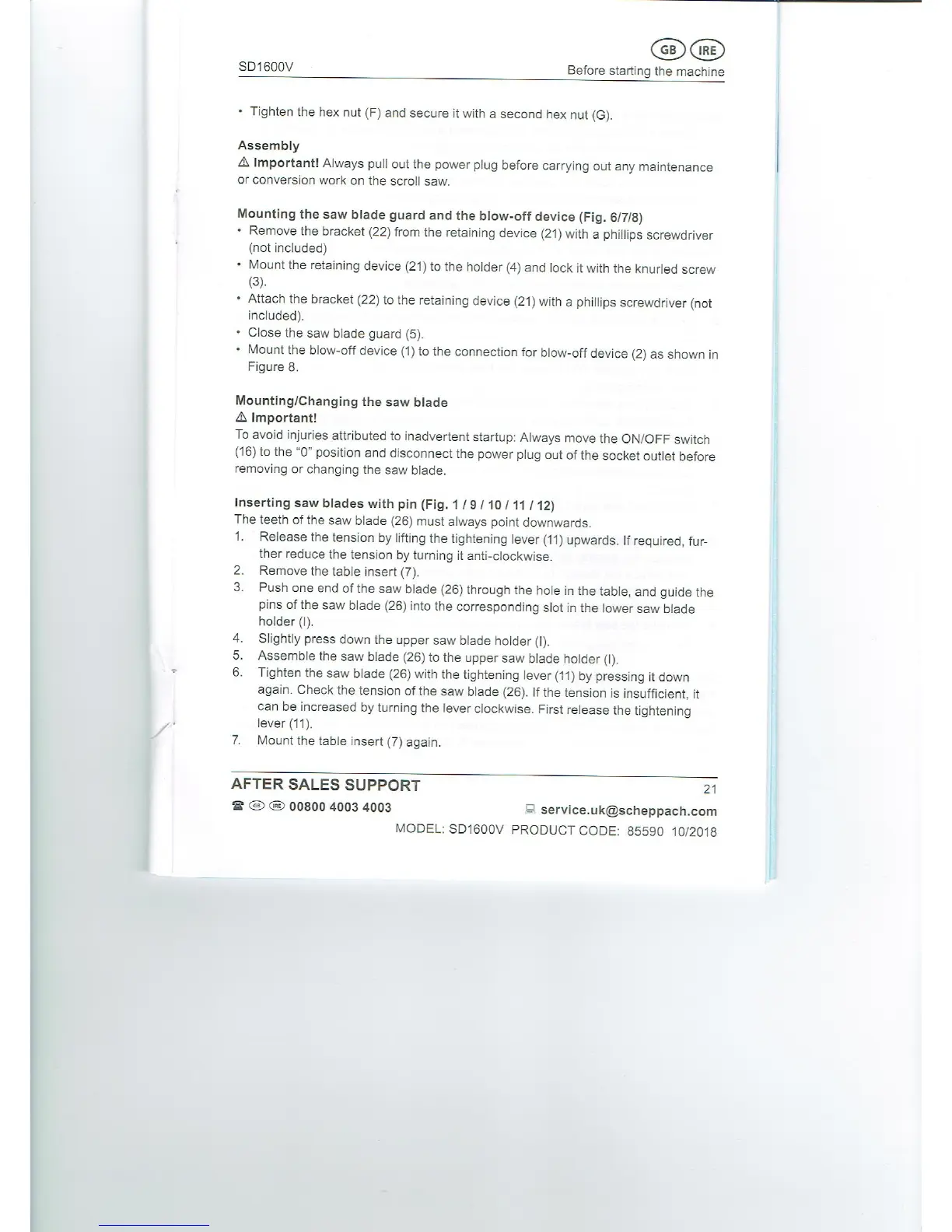

Workzone SD1600V User Manual

SD1600V
Before
starting
the machine
*
Tighten
the hex
nut
(F)
and secure
it with
a second
hex
nut
(G).
Assembly
A
Important!
Alwayspull
out the
power
plug
before
carrying
out
any
maintenance
or
conversion work
on
the scroll saw.
Mounting
the
saw
blade
guard
and
the blow-off
device
(Fig.
6/7/8)
*
Remove the
bracket
(22)
from
the
retaining
device
(21)
with a
phillips
screwdriver
(not
included)
+
Mount the
retaining
device
(21)
to
the holder
(4)
and
lockit with
the
knurled screw
(3).
Attach the
bracket
(22)to
the
retaining
device
(21)
with
a
phillips
screwdriver
(not
included).
Close the saw
blade
guard
(5).
+
Mount
the
blow-off
device
(1)
to
the
connection
for
blow-off
device
(2)
as shown
in
Figure
8.
Mounting/Changing
the saw
blade
A
Important!
To avoid
injuries
attributed to
inadvertent
startup:
Always
move the
ON/OFF
switch
(16)
to
the “0”
position
and
disconnect
the
power
plug
out of
the socket
outlet
before
removing
or
changing
the saw
blade.
Inserting
saw
blades
with
pin (Fig.
1/9/
10/11/12)
Theteeth of
the
saw blade
(26)
must
always point
downwards.
1.
Release
the tension by
lifting
the
tightening
lever
(11)
upwards.
If
required,
fur-
ther
reduce the tension
by
turning
it
anti-clockwise.
2. Remove
the
table insert
(7).
3.
Push one
end
ofthe saw
blade
(26)
through
the
hole in
the
table,
and
guide
the
pins
of
the saw
blade
(26) into
the
corresponding
slot
in
the
lower saw
blade
holder
(I).
4.
Slightly
press
down the
upper
saw blade
holder
(I).
Assemble
the saw
blade
(26)
to the
upper
saw
blade
holder
(I).
6.
Tighten
the
saw blade
(26)
with
the
tightening
lever
(11)
by
pressing
it
down
again.
Check
the tension of
the
saw blade
(26).
If
the
tension
is
insufficient,
it
can be
increased
by
turning
the
lever
clockwise.
First
release
the
tightening
lever
(11).
7.
Mount
the table
insert
(7)
again.
aM
AFTER
SALES
SUPPORT
21
a
00800
4003
4003 &
service.uk@scheppach.com
MODEL: SD1600V
PRODUCT
CODE:
85590
10/2018
