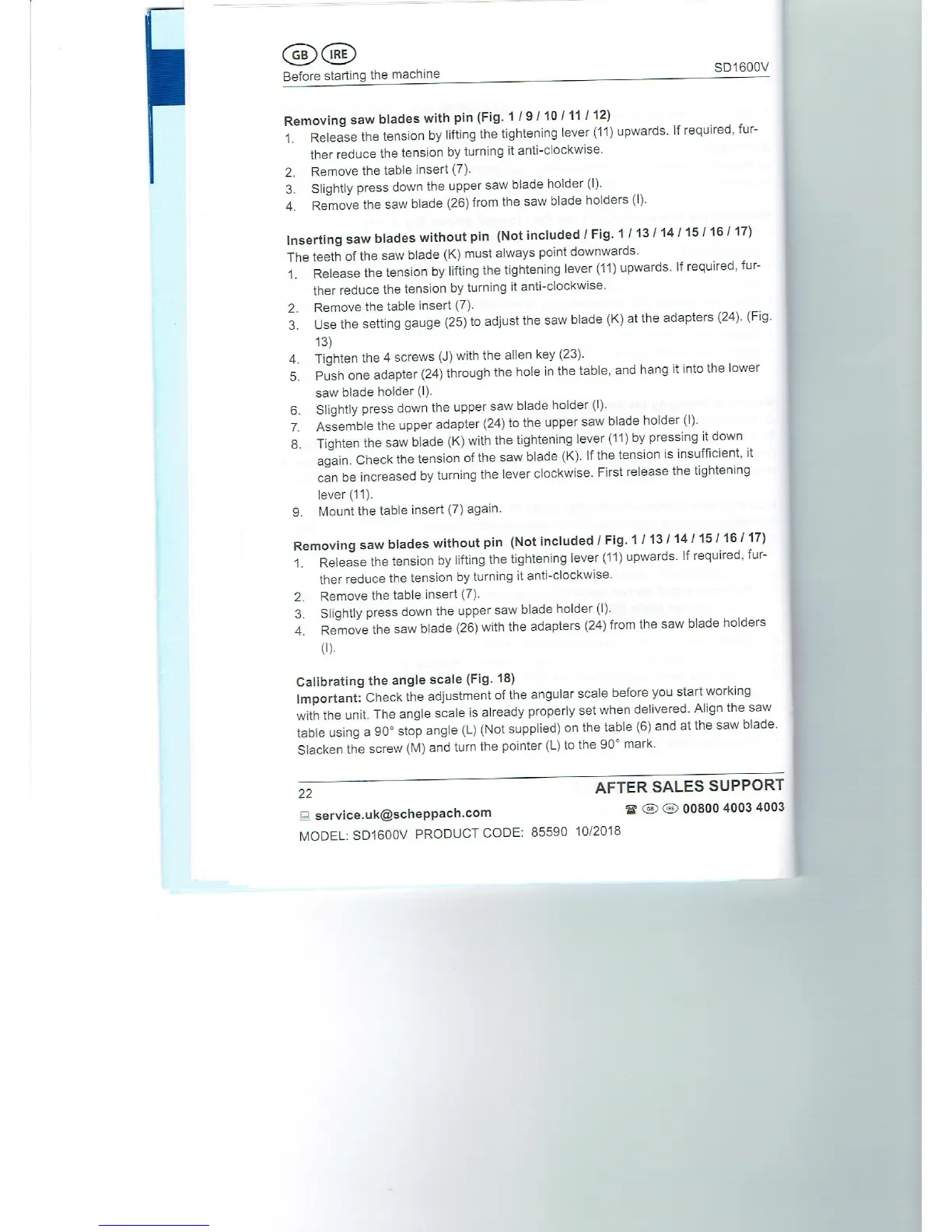

Before
starting
the
machine
SD1600V
Removing
saw
blades
with
pin
(Fig.
4/91/10/11/
12)
4.
Release
the
tension
by
lifting
the
tightening
lever
(11)
upwards.
If
required,
fur-
ther
reduce
the
tension
by
turning
it
anti-clockwise.
2.
Remove
the
table
insert
(7).
3.
Slightly
press
down
the
upper
saw
blade
holder
(I).
4.
Remove
the
saw
blade
(26)
from
the
saw
blade
holders
(I).
Inserting
saw
blades
without
pin
(Not
included
/
Fig.
1 113/14/15/16/ 17)
Theteeth
of
the
saw
blade
(K)
must
always
point
downwards.
4.
Release
the
tension
by
lifting
the
tightening
lever
(11)
upwards.
If
required,
fur-
ther
reduce
the
tension
by
turning
it
anti-clockwise.
2.
Remove
the
table
insert
(7).
3.
Use
the
setting gauge
(25)
to
adjust
the saw
blade
(K)
at
the
adapters
(24).
(Fig.
13)
4.
Tighten
the
4 screws
(J)
with
the allen
key
(23).
5.
Push
one
adapter
(24)
through
the
hole
in the
table,
and
hang
it
into the
lower
saw
blade
holder
(I).
6.
Slightly
press
down
the
upper
saw
blade
holder
(I).
7.
Assemble
the
upper
adapter
(24)
to the
upper
saw
blade
holder
(|).
8.
Tighten
the saw
blade
(K)
with
the
tightening
lever
(11)
by pressing
it
down
again.
Check
the
tension
of the
saw
blade
(K).
If
the
tension
is
insufficient,
it
can
be
increased
by
turning
the
lever clockwise.
First
release
the
tightening
lever
(11).
9.
Mount
the table
insert
(7)
again.
Removing
saw
blades
without
pin
(Not
included
/
Fig.
1/
13/14
1151/16/17)
4. Release
the
tension
by
lifting
the
tightening
lever
(11)
upwards.
If
required,
fur-
ther
reduce
the
tension
by
turning
it
anti-clockwise.
2.
Remove
the
table
insert
(7).
Slightly
press
down
the
upper
saw blade
holder
(|).
4.
Remove
the
saw blade
(26)
with
the
adapters
(24)
from
the
saw blade
holders
(I).
»
Calibrating
the
angle
scale
(Fig.
18)
Important:
Check
the
adjustment
of
the
angular
scale
before
you
start
working
with
the
unit.
The
angle
scale
is
already properly
set
when
delivered.
Align
the saw
table
using
a
90°
stop
angle
(L)
(Not
supplied)
on
the table
(6)
and
at
the saw
blade.
Slacken
the
screw
(M)
and turn
the
pointer
(L)
to
the
90°
mark.
22
AFTER
SALES
SUPPORT
©
service.uk@scheppach.com
es
00800
4003
4003
MODEL:
SD1600V
PRODUCT
CODE:
85590
10/2018
