Workzone SD1600V User Manual

Before
starting
the machine
SD1600V

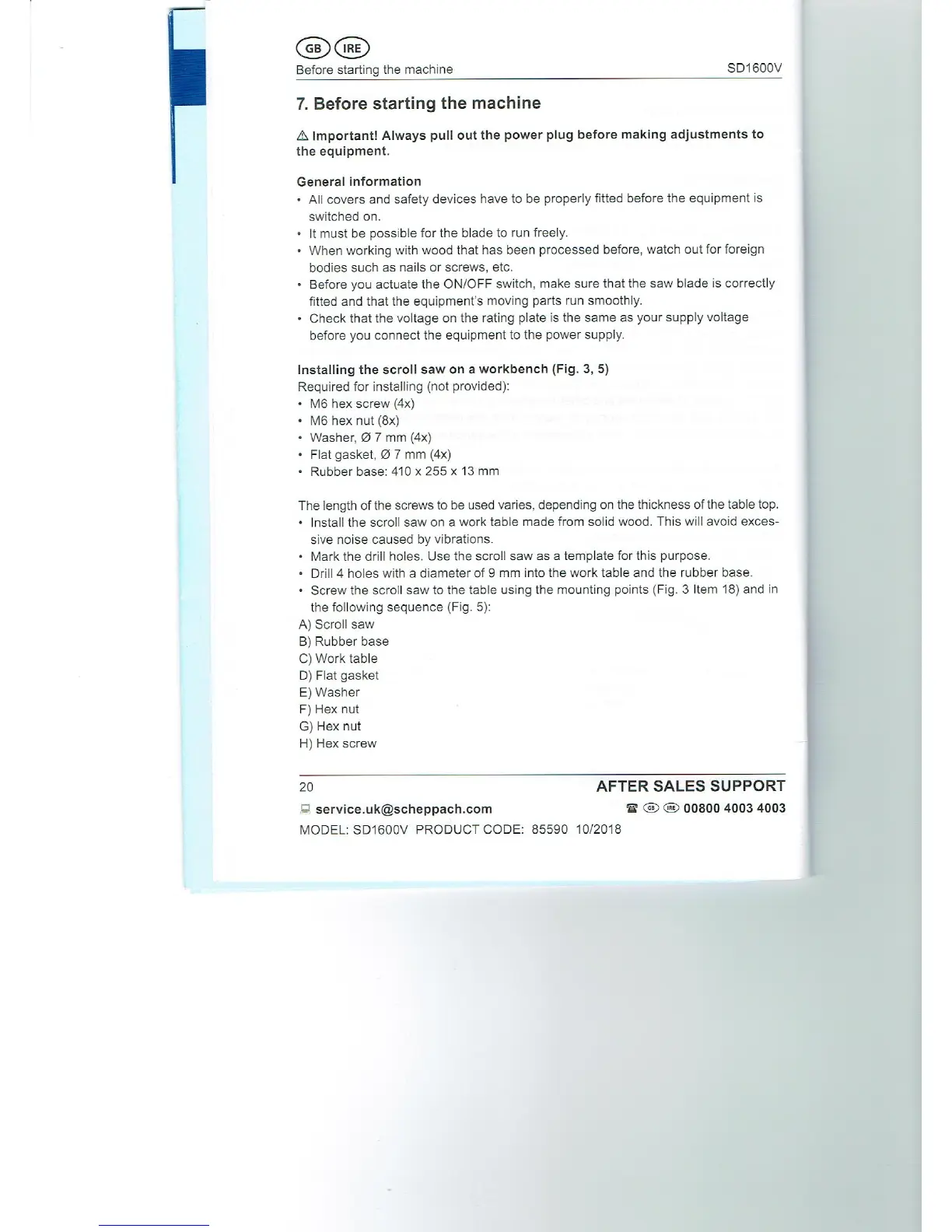

7. Before
starting
the machine
A\
Important!
Always
pull
out the
power plug
before
making adjustments
to
the
equipment.
General
information
+
All covers and
safety
devices have to
be
properlyfitted
before the
equipment
is
switched on.
*
It must be
possible
for the blade to run
freely.
*
When
working
with wood that has been
processed
before,
watch
out for
foreign
bodies such as
nails or screws,
etc.
*
Before
you
actuate the ON/OFF
switch,
make sure that
the saw blade is
correctly
fitted and
that the
equipment’s moving parts
run
smoothly.
*
Check that
the
voltage
on the
rating plate
is the same as
your
supply voltage
before
you
connect the
equipment
to the
power supply.
Installing
the scroll saw on
a workbench
(Fig.
3,
5)
Required
for
installing (not provided):
*
M6 hex screw
(4x)
«
M6 hex nut
(8x)
«
Washer,
@ 7 mm
(4x)
+
Flat
gasket,
@ 7 mm
(4x)
*
Rubber base: 410 x 255
x 13 mm
The
length
of the screws
to be used
varies,
depending
onthe thickness ofthe table
top.
*
Install the scroll saw
on a work
table made from solid wood. This will avoid exces-
sive noise caused
by
vibrations.
*
Mark thedrill holes. Use
the scroll saw
as a
template
for this
purpose.
*
Drill 4 holes with a
diameter of 9
mm into the work table and the rubber base.
*
Screw the scroll
saw to the
table
using
the
mounting points (Fig.
3 Item
18)
and in
the
following sequence (Fig.
5):
A)
Scroll saw
B)
Rubber base
C)
Work table
D)
Flat
gasket
E)
Washer
F)
Hex
nut
G)
Hex nut
H)
Hex
screw
20 AFTER SALES SUPPORT
=
service.uk@scheppach.com
a @ 00800 4003
4003
MODEL: SD1600V
PRODUCT CODE:
85590 10/2018
