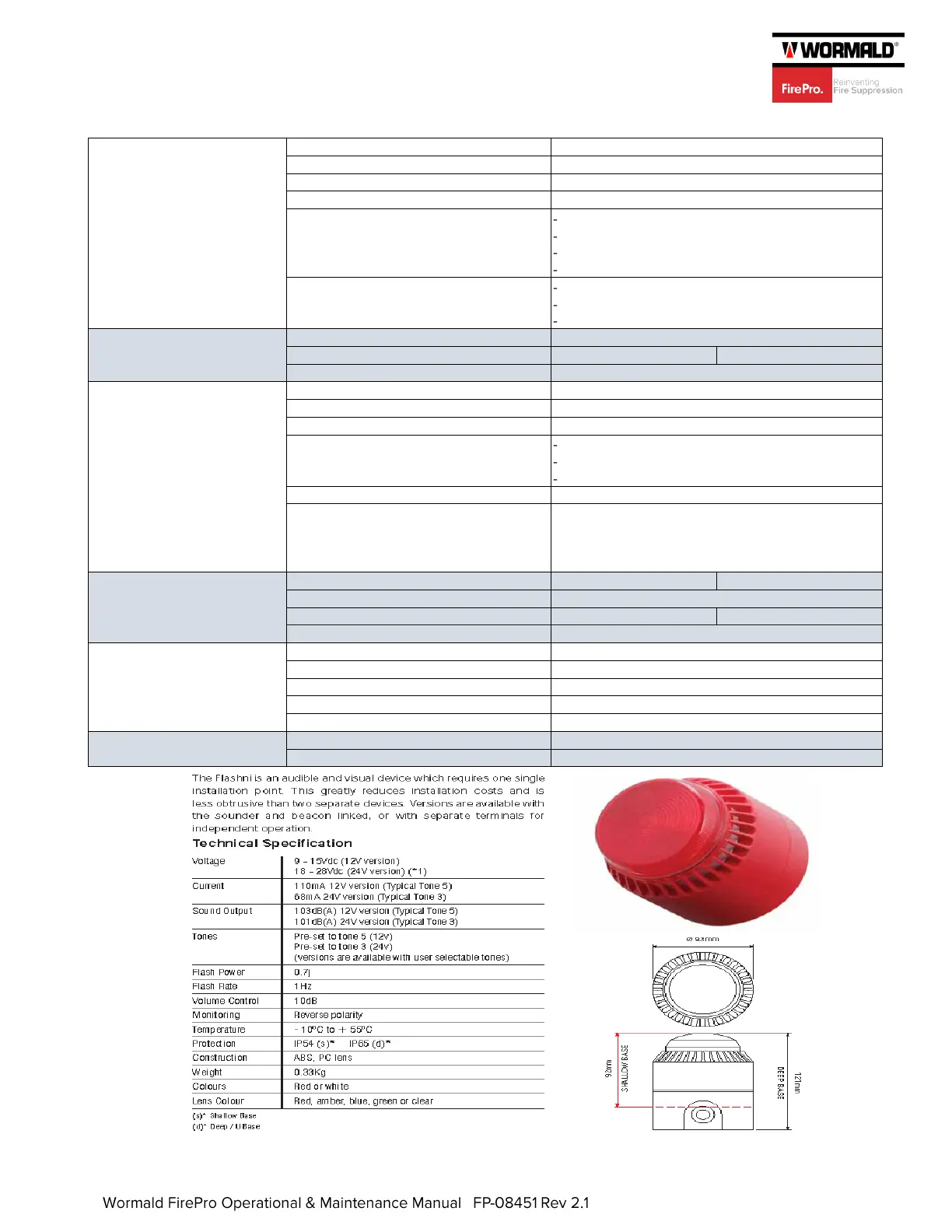

11 Specifications
General
Dimensions
148L x 84W x 35D mm
Material
Diecast Aluminium, UV Tolerant
Ingress Protection
IP65
Operating Temperature
-40 to 85 degrees Celsius
Fault Monitoring – External
Circuit 1 Alarm – Open/Closed
Circuit 2 Alarm – Open/Closed
Siren/Strobe – Open/Closed
Discharge – Open/Closed
Fault Monitoring – Internal
Poly-switch fuse operated
Loss of internal 5V supply
Internal microprocessor malfunction
Power Supply Input
Mains Operating Voltage
12-30VDC
Mains Operating Current
20mA on 12V
23mA on 24V
Backup Power
See FP-08870 / 08871 / 08872 manual
Detection Output
Circuit 1 Alarm &
Circuit 2 Alarm
No. of Detection Zones
2
Operating Voltage
12-30VDC (same as main supply voltage)
Detection End-of-line
22kΩ Resistor
Maximum Detectors per Zone
30 Conventional Detectors
100m Linear Heat Detection
30 Manual Actuators
Alarm Threshold
3.6V Fault sensing threshold: 0.53V
Compatible Detectors
Hochiki SLV-AS Smoke Detector
Hochiki DCD-AE3M Thermal Detector
14053 Manual Actuator
09510 180˚C Linear Heat Detection
Discharge Output
Discharge Output Current
2A at 12VDC
4A at 24VDC
Discharge End-of-line
3K3Ω Resistor
Maximum FirePro Generators
2 in series at 12VDC
4 in series at 24VDC
Standard Discharge Delay
5 seconds from automatic/manual activation
Siren/Strobe Output
Siren/Strobe Output Current
Max 0.5A
Siren/Strobe Output Protection
0.5A poly-switch resettable fuse
Siren/Strobe End-of-line
1N4004 Diode
Maximum Siren/Strobes
5
Compatible Siren/Strobes
Flashni Xenon Sounder Beacon
Agent Released Input
Input Type
Thermal Switch, NC, Latching, Non-resettable
Operation
Thermal Event >80˚C
